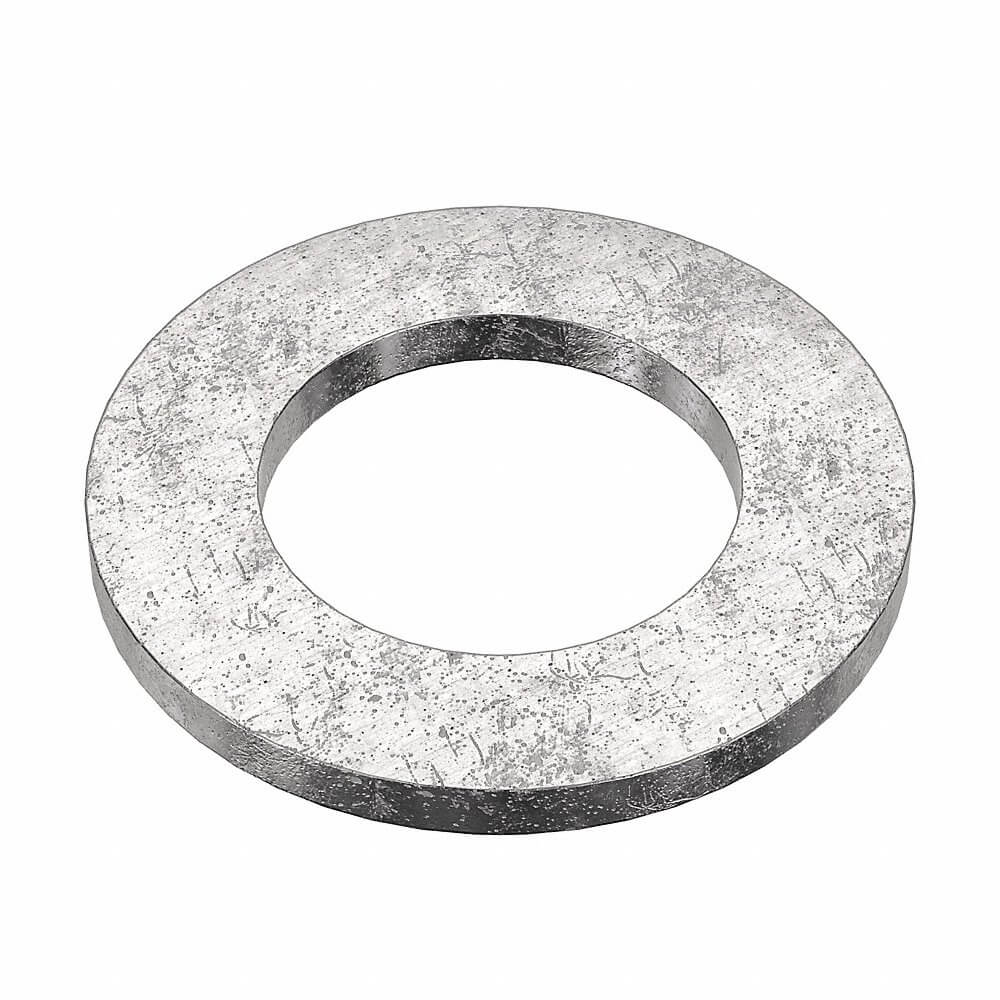

APPROVED VENDOR WASB82N8 Flat Washer, Type B, 1 1/4 In Fits Bolt Size, Std, 1 5/16 In I.D., Pln, 2 1/4 In O.D.
Item: AB8MUJModel: WASB82N8Cross Ref: 26L088
7 In Stock
Ships within 2 days via
5.00% off
€63.84 /pkg. of 2
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer, Type B |
| Color | Silver |
| Dimensional Standards | ASME B18.22.1 |
| Finish | Plain |
| Fits Bolt Size | 1 1/4" |
| Flat Washer Type | Standard |
| For Screw Size | 1 1/4" |
| Grade | Grade 18-8 |
| Hardness | Rockwell B80 |
| Inside Dia. | 1 5/16" , 1.312" |
| Inside Dia. Tolerance | -0.01" to +0.01" |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Material Quality Standards | Astm A582 |
| Max. Thickness | 0.174" |
| Min. Thickness | 0.146" |
| Outside Dia. | 2 1/4" |
| Outside Dia. Tolerance | -0.01" to +0.01" |
| Resistance Properties | Chemical Resistant, Corrosion Resistant, Dyes, Food And Nitric Acid |
| Rockwell Hardness | B83 |
| System Of Measurement | Imperial |
| Tensile Strength | 90000 psi |
| Thickness | 0.146" to 0.174" |
| Thickness Tolerance | -0.02" to +0.005" |
| Washer Type | Standard Washer |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 5.59 |
| Ship width (cm) | 5.59 |
| HS code | 7318220000 |
| Country of Origin | US |
Product Variants
| Product | Model | Fits Bolt Size | Thickness | Min. Thickness | Max. Thickness | For Screw Size | Thickness Tolerance | Inside Dia. Tolerance | Outside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U51410.011.0002 | #4 | 1/32" | 0.031" | 0.031" | #4 | - | - | - | 50 | €5.25 | |
 |
U51410.013.0001 | #6 | 2/41" | 0.036" | 0.065" | #6 | +0.016", -0.013" | -0.005" to +0.008" | -0.005" to +0.015" | 50 | €2.14 | |
 |
U51410.016.0002 | #8 | 2/41" | - | - | - | - | - | - | 50 | €2.42 | |
 |
U51410.019.0002 | #10 | 2/41" | 0.036" | 0.065" | #10 | +0.016", -0.013" | -0.005" to +0.008" | -0.005" to +0.015" | 50 | €10.46 | |
 |
U51410.043.0001 | 7/16" | 0.047" | 0.034" | 0.063" | 7/16" | +0.016", -0.013" | -0.005" to +0.015" | -0.007" to +0.015" | 25 | €3.55 | |
 |
U51410.025.0005 | 1/4" | 0.047" | 0.034" | 0.047" | 1/4" | +0.016", -0.013" | -0.005" to +0.015" | -0.007" to +0.015" | 50 | €5.26 | |
 |
U51410.031.0008 | 5/16" | 0.063" | 0.049" | 0.078" | 5/16" | +0.015", -0.014" | -0.005" to +0.015" | -0.007" to +0.015" | 50 | €8.58 |
