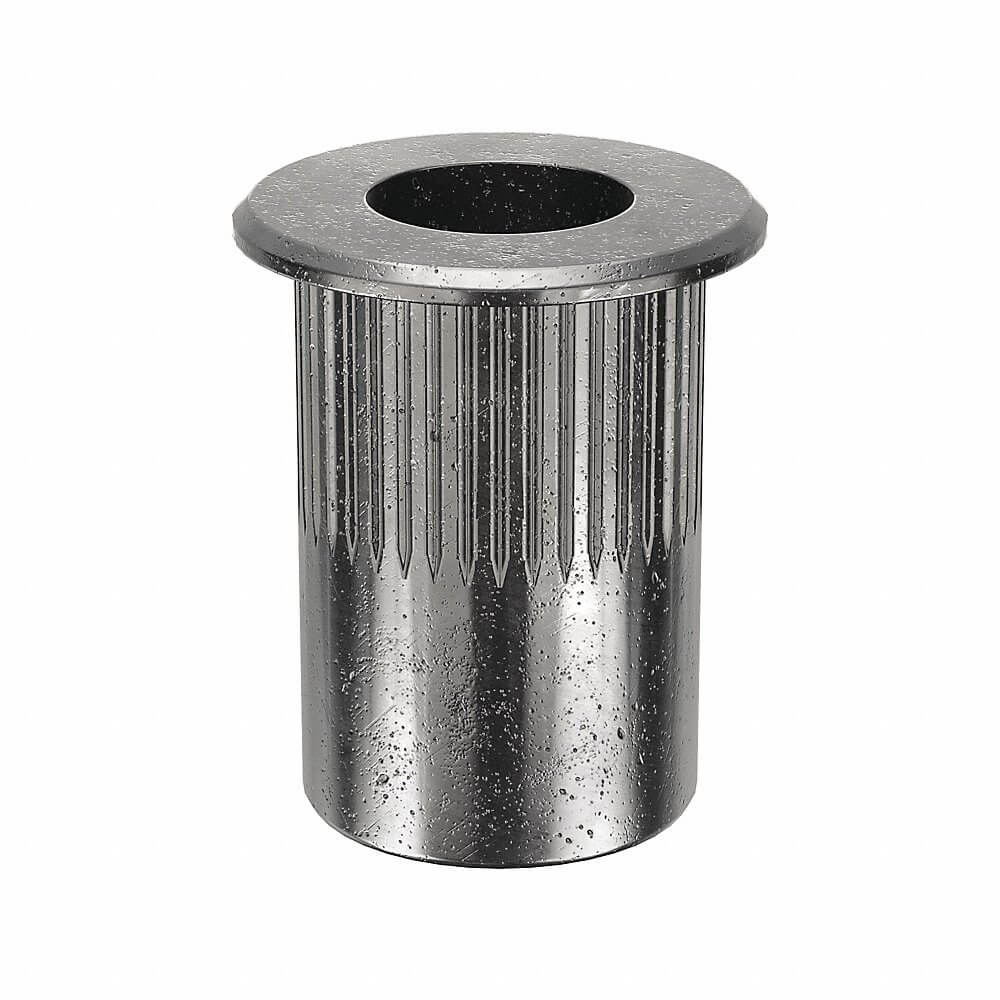

APPROVED VENDOR U69135.031.0312 Rivet Nut, 5/16 In - 18 Thread Size, Steel, 0.783 In Lg., 0.15 In To 0.312 In Grip Rng, Open
Get it by Monday, Mar 2
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€23.86 /pkg. of 25
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rivet Nut |
| Body Dia. | 0.53" |
| Body Texture | Knurled |
| Compatible Material | Fiberglass, Metal, Plastic |
| Display Qty | 25 |
| Drill Size | 17/32" |
| End Type | Open |
| Finish | Plain |
| Flange Dia. | 0.685" |
| Flange Style | Flanged |
| Flange Thickness | 0.042" |
| Grip Range | 0.15" to 0.312" |
| Head Height | 0.042" |
| Insert Diameter | 17/32" |
| Insert Nut Type | Rivet Nut |
| Length | 0.783" |
| Material | Steel |
| Maximum Hole Diameter | 0.531" |
| Maximum Material Thickness | 0.312" |
| Minimum Material Thickness | 0.15" |
| Nut Type | Knurled Flanged |
| Overall Length | 25/32" |
| Rivet Type | Knurled Flanged |
| System Of Measurement | Imperial |
| Thread Size | 5/16"-18 |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.29 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 5.08 |
| HS code | 7318190000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Thread Size | Rivet Type | Flange Dia. | Finish | Drill Size | Head Height | Grade | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U69136.019.0080 | #10-24 | Flanged | 13/32" | Plain | 1/4" | 0.038" | - | 100 | €22.58 | |
 |
U69136.037.0200 | 3/8"-16 | Flanged | 0.78125" | Plain | 1/2" | 0.088" | - | 20 | €16.92 | |
 |
U69136.031.0125 | 5/16"-18 | Flanged | 0.665" | Plain | Z | 1/16" | - | 25 | €16.46 | |
 |
U69136.037.0115 | 3/8"-16 | Flanged | 0.78125" | Plain | 1/2" | 0.088" | - | 25 | €20.29 | |
 |
U69136.025.0138 | 1/4"-20 | Flanged | 0.475" | Plain | Q | 0.06" | - | 40 | €21.47 | |
 |
U69136.025.0200 | 1/4"-20 | Flanged | 0.475" | Plain | Q | 0.058" | - | 40 | €24.61 | |
 |
U69136.016.0120 | #8-32 | Flanged | 0.357" | Plain | #2 | 0.032" | - | 50 | €37.48 |
