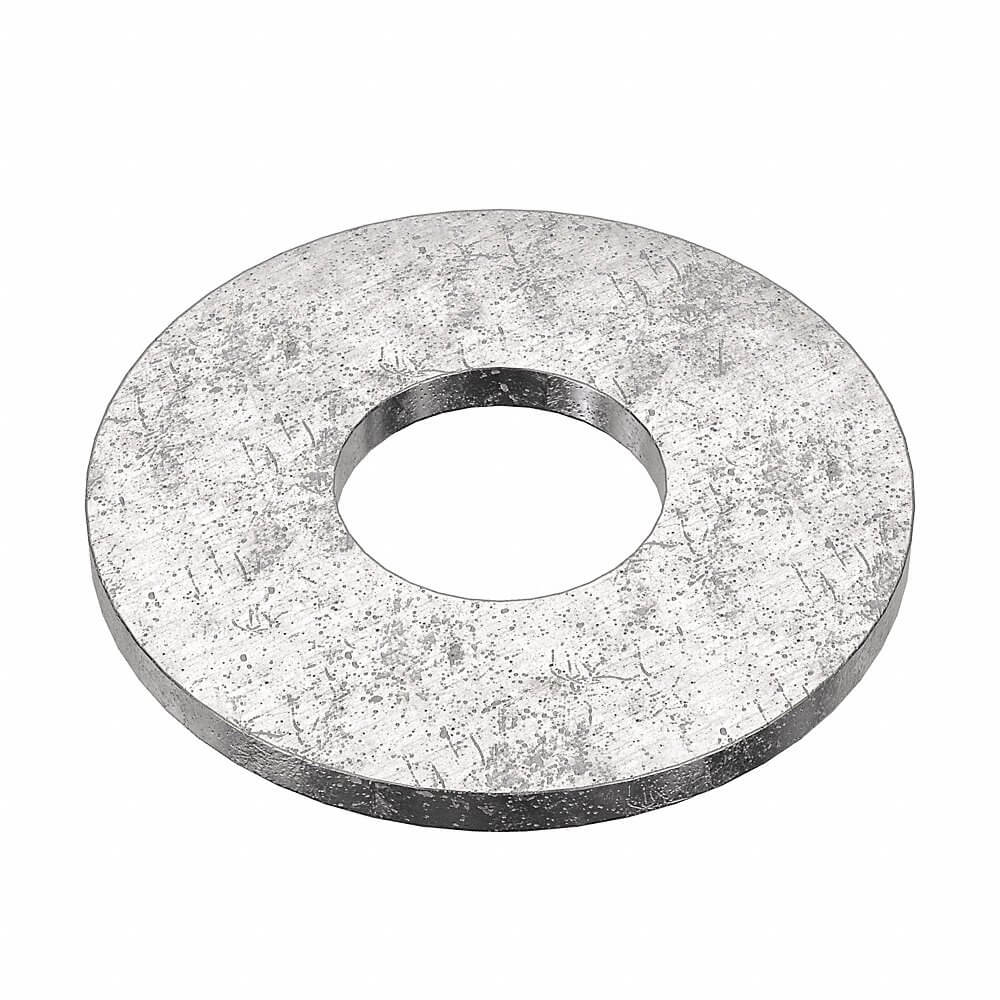

APPROVED VENDOR U51410.043.0006 Flat Washer, 7/16 In Fits Bolt Size, Std, 1/2 In I.D., 1 1/8 In O.D., Plain
Item: AB7EEXModel: U51410.043.0006Cross Ref: 22UG18
7 In Stock
Ships within 2 days via
5.00% off
€7.33 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | ASME B18.22.1 |
| Finish | Plain |
| Fits Bolt Size | 7/16" |
| Flat Washer Type | Standard |
| For Screw Size | 7/16" |
| Grade | Grade 18-8 |
| Inside Dia. | 1/2" |
| Inside Dia. Tolerance | -0.005" to +0.015" |
| Made In North America | No |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Max. Temp. | 302°F |
| Max. Thickness | 0.078" |
| Min. Temp. | -58°F |
| Min. Thickness | 0.049" |
| Outside Dia. | 1 1/8" |
| Outside Dia. Tolerance | -0.007" to +0.030" |
| Reach Compliant | Yes |
| Removable | Yes |
| Resistance Properties | Corrosion Resistant |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Tensile Strength | Not Applicable |
| Thickness | 0.063" |
| Thickness Tolerance | +0.015", -0.014" |
| Washer Type | Standard Washer |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Inside Dia. | Outside Dia. | Thickness | Max. Thickness | Thickness Tolerance | Hardness | Tensile Strength | Min. Thickness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U51410.011.0002 | 1/8" | 5/16" | 1/32" | 0.031" | - | - | - | 0.031" | 50 | €5.25 | |
 |
U51410.013.0001 | 0.156" | 3/8" | 2/41" | 0.065" | +0.016", -0.013" | - | Not Applicable | 0.036" | 50 | €2.14 | |
 |
U51410.016.0002 | 3/16" | 7/16" | 2/41" | - | - | - | Not Applicable | - | 50 | €2.42 | |
 |
U51410.019.0002 | 7/32" | 1/2" | 2/41" | 0.065" | +0.016", -0.013" | - | Not Applicable | 0.036" | 50 | €10.46 | |
 |
U51410.043.0001 | 15/32" | 29/32" | 0.047" | 0.063" | +0.016", -0.013" | - | Not Applicable | 0.034" | 25 | €3.55 | |
 |
U51410.025.0005 | 0.313" | 3/4" | 0.047" | 0.047" | +0.016", -0.013" | - | Not Applicable | 0.034" | 50 | €5.26 | |
 |
U51410.031.0008 | 3/8" | 7/8" | 0.063" | 0.078" | +0.015", -0.014" | - | Not Applicable | 0.049" | 50 | €8.58 |
