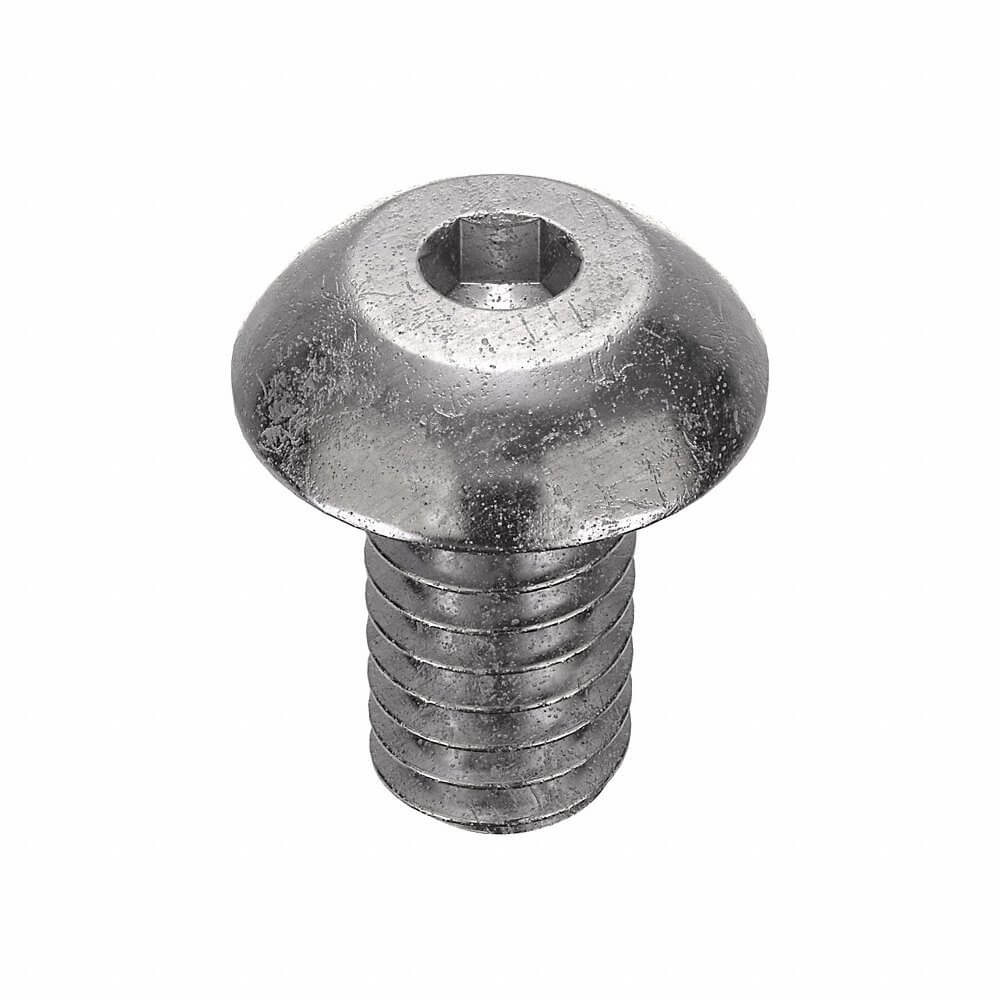

APPROVED VENDOR U51030.016.0031 Socket Head Cap Screw, 8-32 Thread Size, Button, 5/16 In Lg., 0.0781 In Head Ht., Pln
Item: AC3TYWModel: U51030.016.0031Cross Ref: 2WB71
7 In Stock
Ships within 2 days via
5.00% off
€10.07 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | 18-8 Stainless Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 100 |
| Drive Size | 3/32" |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B80-C32 |
| Head Dia. | 0.312" , 5/16" |
| Head Height | 0.078" |
| Head Type | Button |
| Length | 5/16" |
| Material | Stainless Steel |
| Material Grade | Grade 18-8 |
| Material Grade/class | 18-8 |
| Material Quality Standards | Astm F879 |
| Material Type | Stainless Steel |
| Max. Temp. | 250°F |
| Min. Tensile Strength | 100000 psi |
| Min. Thread Length | 5/16" |
| Screw Length | 5/16" |
| System Of Measurement | Imperial |
| Temp. | -0°F to +250°F |
| Tensile Strength | 100000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 5/16" |
| Thread Size | #8-32 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318156070 |
| Country of Origin | TW |
Product Variants
| Product | Model | Head Dia. | Drive Size | Head Height | Thread Style | Min. Thread Length | Thread Length | Temp. | Thread Fit | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U51030.008.0075 | 0.164" | 0.05" | 0.0469" | Fully Threaded | - | 3/4" | -50°F to +550°F | - | 100 | €21.88 | |
 |
U51030.013.0150 | 1/4" | 5/64" | 0.073" | Fully Threaded | 1 1/2" | 1 1/2" | -50°F to +550°F | - | 100 | €24.78 | |
 |
U51030.019.0150 | 0.361" | 1/8" | 0.101" | Fully Threaded | 1 1/2" | 1 1/2" | -50°F to +550°F | - | 100 | €40.73 | |
 |
U51030.019.0200 | 0.361" | 1/8" | 0.101" | Fully Threaded | 2" | 2" | -50°F to +550°F | - | 100 | €62.84 | |
 |
U51030.025.0100 | 0.437" | 5/32" | 0.132" | Fully Threaded | 1" | 1" | -50°F to +550°F | 3A | 100 | €26.59 | |
 |
U51030.025.0125 | 0.437" | 5/32" | 0.132" | Fully Threaded | 1 1/4" | 1 1/4" | -50°F to +550°F | - | 100 | €48.51 | |
 |
U51030.025.0150 | 0.437" | 5/32" | 0.132" | Fully Threaded | 1 1/2" | 1 1/2" | -50°F to +550°F | - | 100 | €51.42 |
