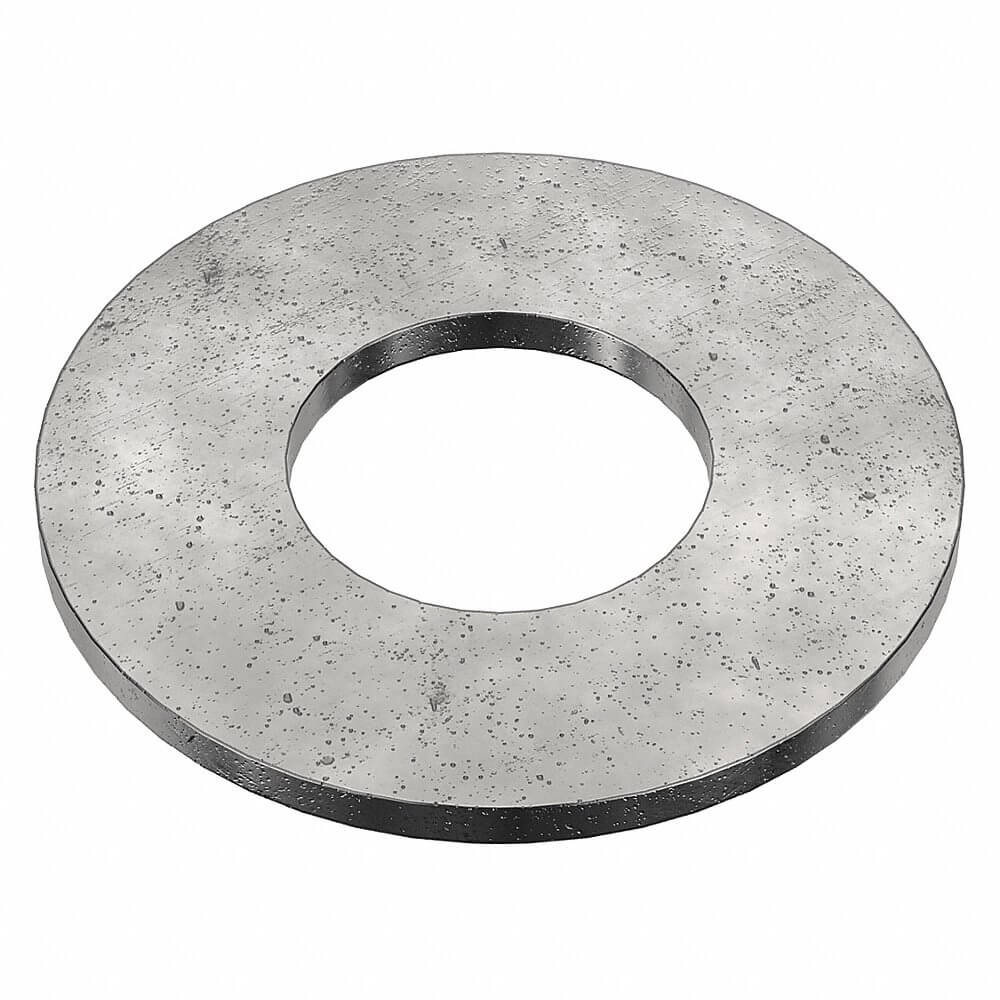

APPROVED VENDOR U38100.125.0001 Flat Washer, 1 1/4 In Fits Bolt Size, USS, 1 1/4 In I.D., 3 In O.D.
Item: AB7DZWModel: U38100.125.0001Cross Ref: 22UE80
7 In Stock
Ships within 2 days via
5.00% off
€11.25 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | Asme B18.21.1 |
| Finish | Plain |
| Fits Bolt Sizes | 1 1/4" |
| Flat Washer Type | Uss |
| For Screw Size | 1 1/4" |
| Inside Dia. | 1 1/4" |
| Inside Diameter Tolerance | 1.368" to 1.405" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Maximum Temperature | 350°C |
| Maximum Thickness | 0.165" |
| Minimum Temperature | -58°C |
| Minimum Thickness | 0.165" |
| Outside Dia. | 3" |
| Outside Diameter Tolerance | 2.993" to 3.03" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Thickness | 0.156" |
| Thickness Tolerance | 0.136" to 0.192" |
| Washer Type | USS Washer |
Shipping Info:
| Ship weight (kg) | 0.6 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Hardness | Color | Resistance Properties | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U38402.175.0001 | 1 3/4" | 1 7/8" | 4" | 0.156" | 0.1536" to 0.213" | - | - | - | 5 | €19.66 | |
 |
U38402.200.0001 | 2" | 2 1/8" | 4 1/2" | 0.156" | 0.153" to 0.213" | - | - | - | 5 | €26.24 | |
 |
U38402.250.0001 | 2 1/2" | 2 5/8" | 5" | 0.238" | 0.21" to 0.28" | - | - | - | 5 | €65.93 | |
 |
U38402.225.0001 | 2 1/4" | 2 1/4" | 4 3/4" | 0.156" | 0.193" to 0.248" | - | - | - | 5 | €47.23 | |
 |
U38402.300.0001 | 3" | 3" | 5 1/2" | 0.284" | 0.249" to 0.327" | - | - | - | 5 | €81.73 | |
 |
U38100.087.0001 | 7/8" | 7/8" | 2 1/4" | 0.156" | 0.136" to 0.192" | - | - | - | 10 | €14.19 | |
 |
U38100.112.0001 | 1 1/8" | 1 1/8" | 2 3/4" | 0.156" | 0.136" to 0.192" | - | - | - | 5 | €10.21 |
