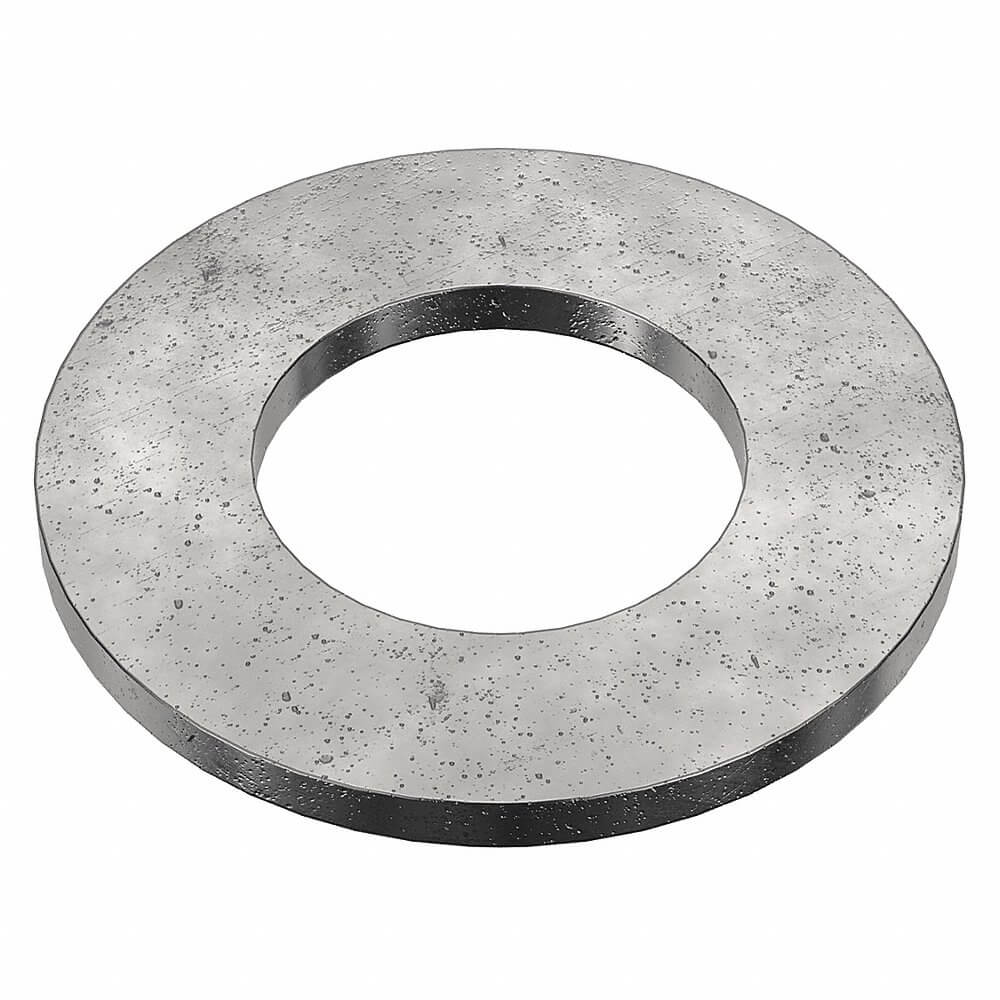

APPROVED VENDOR U38200.100.0001 Flat Washer, 1 In Fits Bolt Size, SAE, 1.063 In I.D., 2 In O.D., Steel
Item: AB7DWWModel: U38200.100.0001Cross Ref: 22UE11
7 In Stock
Ships within 2 days via
5.00% off
€3.50 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | Asme B18.21.1, Sae |
| Finish | Plain |
| Fits Bolt Size | 1" |
| Flat Washer Type | SAE |
| For Screw Size | 1" |
| Inside Dia. | 1.063" |
| Inside Dia. Tolerance | 1.055" to 1.092" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Max. Temp. | 350°C |
| Max. Thickness | 0.134" |
| Min. Temp. | -58°C |
| Min. Thickness | 0.134" |
| Outside Dia. | 2" |
| Outside Dia. Tolerance | 1.993" to 2.03" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Thickness | 0.134" |
| Thickness Tolerance | 0.108" to 0.16" |
| Washer Type | SAE Washer |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Size | Thickness | Min. Thickness | Max. Thickness | For Screw Size | Material Grade/class | Thickness Tolerance | Inside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U38200.043.0001 | 7/16" | 0.065" | 0.065" | 0.065" | 7/16" | Ungraded | 0.051" to 0.08" | 0.464" to 0.484" | 50 | €4.25 | |
 |
U38200.050.0001 | 1/2" | 0.095" | 0.095" | 0.095" | 1/2" | Ungraded | 0.074" to 0.121" | 0.526" to 0.546" | 50 | €7.99 | |
 |
U38200.062.0001 | 5/8" | 0.095" | 0.095" | 0.095" | 5/8" | Ungraded | 0.074" to 0.121" | 0.649" to 0.686" | 25 | €5.53 | |
 |
U38200.087.0001 | 7/8" | 0.134" | 0.134" | 0.134" | 7/8" | Ungraded | 0.108" to 0.16" | 0.931" to 0.968" | 10 | €4.36 | |
 |
U38200.137.0001 | 1 3/8" | 0.156" | 0.165" | 0.165" | 1 3/8" | Ungraded | 0.136" to 0.192" | 1.493" to 1.53" | 5 | €7.17 | |
 |
U38200.056.0001 | 9/16" | 0.095" | 0.095" | 0.095" | 9/16" | Ungraded | 0.074" to 0.121" | 0.589" to 0.609" | 25 | €5.31 | |
 |
U38200.075.0001 | 3/4" | 0.134" | 0.134" | 0.134" | 3/4" | Ungraded | 0.108" to 0.16" | 0.805" to 0.842" | 20 | €7.10 |
