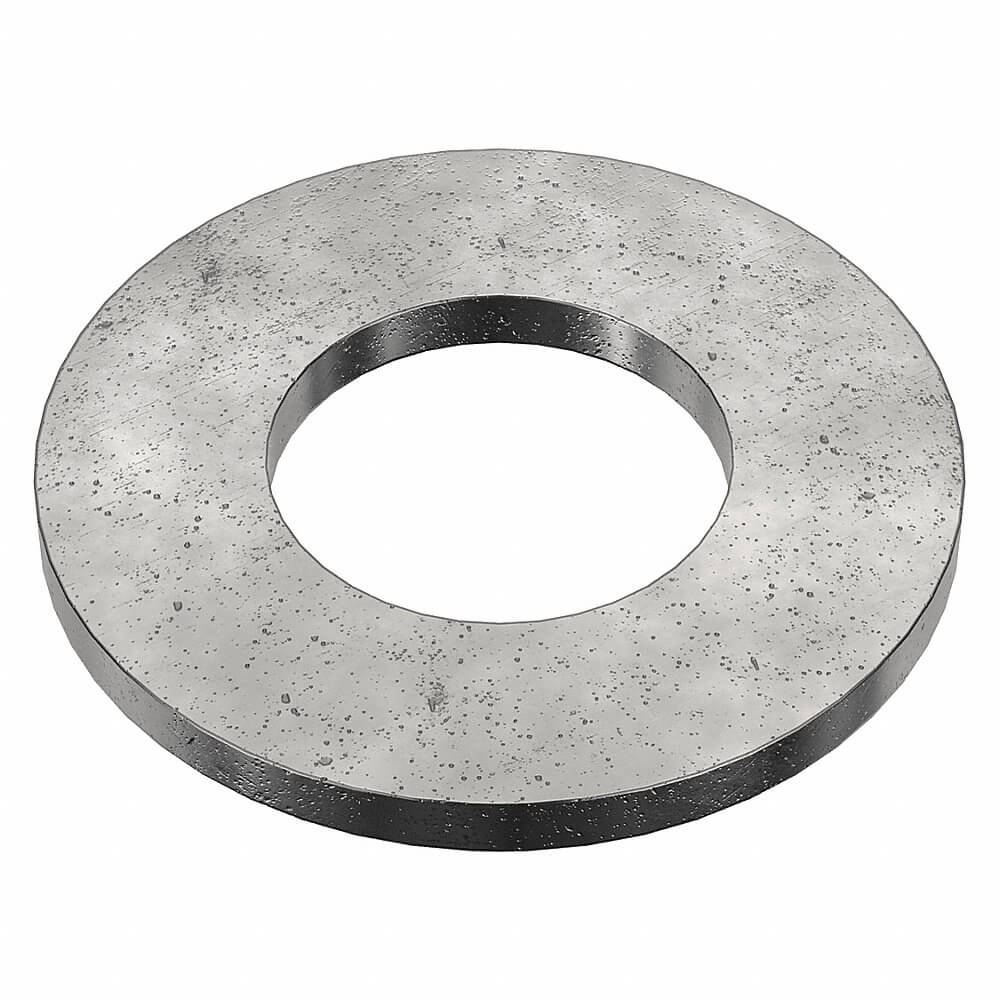

APPROVED VENDOR U38200.062.0001 Flat Washer, 5/8 In Fits Bolt Size, SAE, 21/32 In I.D.
Item: AB7DWUModel: U38200.062.0001Cross Ref: 22UE09
7 In Stock
Ships within 2 days via
5.00% off
€5.26 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | Asme B18.21.1, Sae |
| Finish | Plain |
| Fits Bolt Size | 5/8" |
| Flat Washer Type | SAE |
| For Screw Size | 5/8" |
| Inside Dia. | 0.656" , 21/32" |
| Inside Dia. Tolerance | 0.649" to 0.686" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Max. Temp. | 350°C |
| Max. Thickness | 0.095" |
| Min. Temp. | -58°C |
| Min. Thickness | 0.095" |
| Outside Dia. | 1 5/16" |
| Outside Dia. Tolerance | 1.305" to 1.342" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Imperial |
| Thickness | 0.095" |
| Thickness Tolerance | 0.074" to 0.121" |
| Washer Type | SAE Washer |
Shipping Info:
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Inside Dia. | Outside Dia. | Thickness | Max. Thickness | Thickness Tolerance | Hardness | Min. Thickness | Inside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U38200.043.0001 | 15/32" | 59/64" | 0.065" | 0.065" | 0.051" to 0.08" | - | 0.065" | 0.464" to 0.484" | 50 | €4.25 | |
 |
U38200.050.0001 | 17/32" | 1 1/16" | 0.095" | 0.095" | 0.074" to 0.121" | - | 0.095" | 0.526" to 0.546" | 50 | €7.99 | |
 |
U38200.087.0001 | 15/16" | 1 3/4" | 0.134" | 0.134" | 0.108" to 0.16" | - | 0.134" | 0.931" to 0.968" | 10 | €4.36 | |
 |
U38200.100.0001 | 1.063" | 2" | 0.134" | 0.134" | 0.108" to 0.16" | - | 0.134" | 1.055" to 1.092" | 5 | €3.69 | |
 |
U38200.137.0001 | 1 1/2" | 2 3/4" | 0.156" | 0.165" | 0.136" to 0.192" | - | 0.165" | 1.493" to 1.53" | 5 | €7.17 | |
 |
U38200.056.0001 | 19/32" | 1.156" | 0.095" | 0.095" | 0.074" to 0.121" | - | 0.095" | 0.589" to 0.609" | 25 | €5.31 | |
 |
U38200.075.0001 | 0.813" | 1 15/32" | 0.134" | 0.134" | 0.108" to 0.16" | - | 0.134" | 0.805" to 0.842" | 20 | €7.10 |
