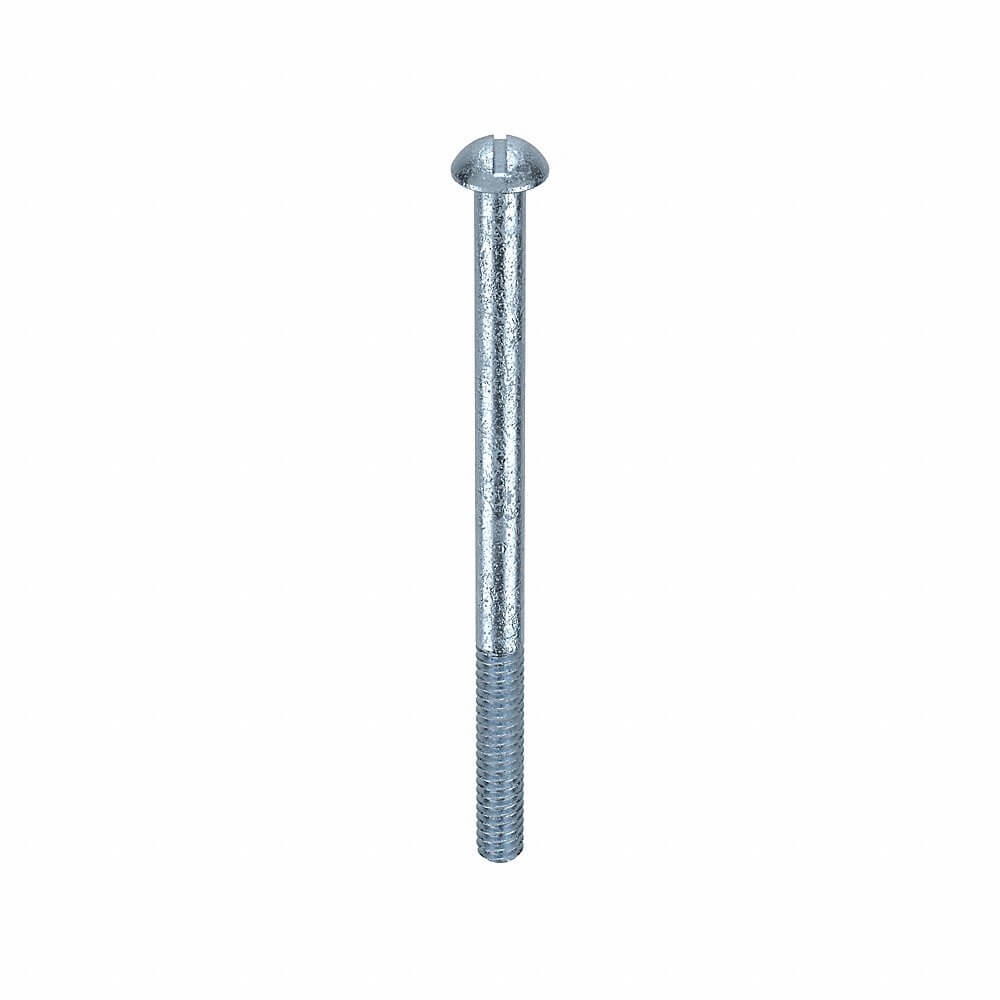

APPROVED VENDOR U24210.019.0300 Machine Screw, 10-24 Thread Size, Steel, 3 In Lg., Std
Item: AB9NBRModel: U24210.019.0300Cross Ref: 2EA80
7 In Stock
Ships within 2 days via
5.00% off
€29.69 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Machine Screw |
| Class | Class 3A, Class 2A |
| Dimensional Standards | ASME B18.6.3 |
| Drive | Slotted |
| Drive Size | 5/16" |
| Drive Type | Slotted |
| Fastener Length | 3" |
| Finish | Zinc Plated |
| Hardness | Rockwell B69-B100 |
| Head Dia. | 0.362" |
| Head Height | 0.359" |
| Head Type | Round Spacer |
| Hole Size | 0.219" |
| Length | 3" |
| Machine Screw Type | Standard Machine Screw |
| Material | Steel |
| Max. Temp. | 375°F |
| Min. Head Height | 0.123" |
| Min. Head Width | 0.333" |
| Min. Temp. | 0°F |
| Recommended Hole Size | 0.219" |
| Rockwell Hardness | B69 to B100 |
| Screw Size | #10 |
| System Of Measurement | Imperial |
| Temp. | -0°F to +375°F |
| Tensile Strength | 60000 psi |
| Thread Direction | Right Hand |
| Thread Fit | Class 2A, Class 3A |
| Thread Length | 1" |
| Thread Size | #10-24 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Type | Standard Machine Screw |
Shipping Info:
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 9.65 |
| HS code | 7318152010 |
| Country of Origin | TW |
Product Variants
| Product | Model | Head Height | Fastener Length | Head Dia. | Screw Size | Thread Length | Drive Size | Min. Head Width | Min. Head Height | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U24212.011.0062 | 0.075" | 5/8" | 0.212" | #4 | 5/8" | #1 | 0.191" | - | 100 | €4.12 | |
 |
U24210.037.0050 | 0.708" | 1/2" | 0.717" | 3/8" | 1" | #4 | 0.67" | 0.237" | 100 | €45.73 | |
 |
U24210.016.0050 | 3/25" | 1/2" | 0.312" | #8 | 1/2" | 1/4" | 0.285" | - | 100 | €5.67 | |
 |
U24210.016.0075 | 3/25" | 3/4" | 0.312" | #8 | 3/4" | 1/4" | 0.285" | - | 100 | €7.87 | |
 |
U24210.016.0100 | 3/25" | - | 0.312" | - | 1" | 1/4" | - | - | 100 | €10.29 | |
 |
U24210.016.0150 | 0.309" | 1 1/2" | 0.312" | #8 | 1" | 1/4" | 0.285" | 0.107" | 100 | €13.19 | |
 |
U24210.019.0050 | 0.137" | 1/2" | 0.362" | #10 | 1" | 5/16" | 0.333" | - | 100 | €8.39 |
