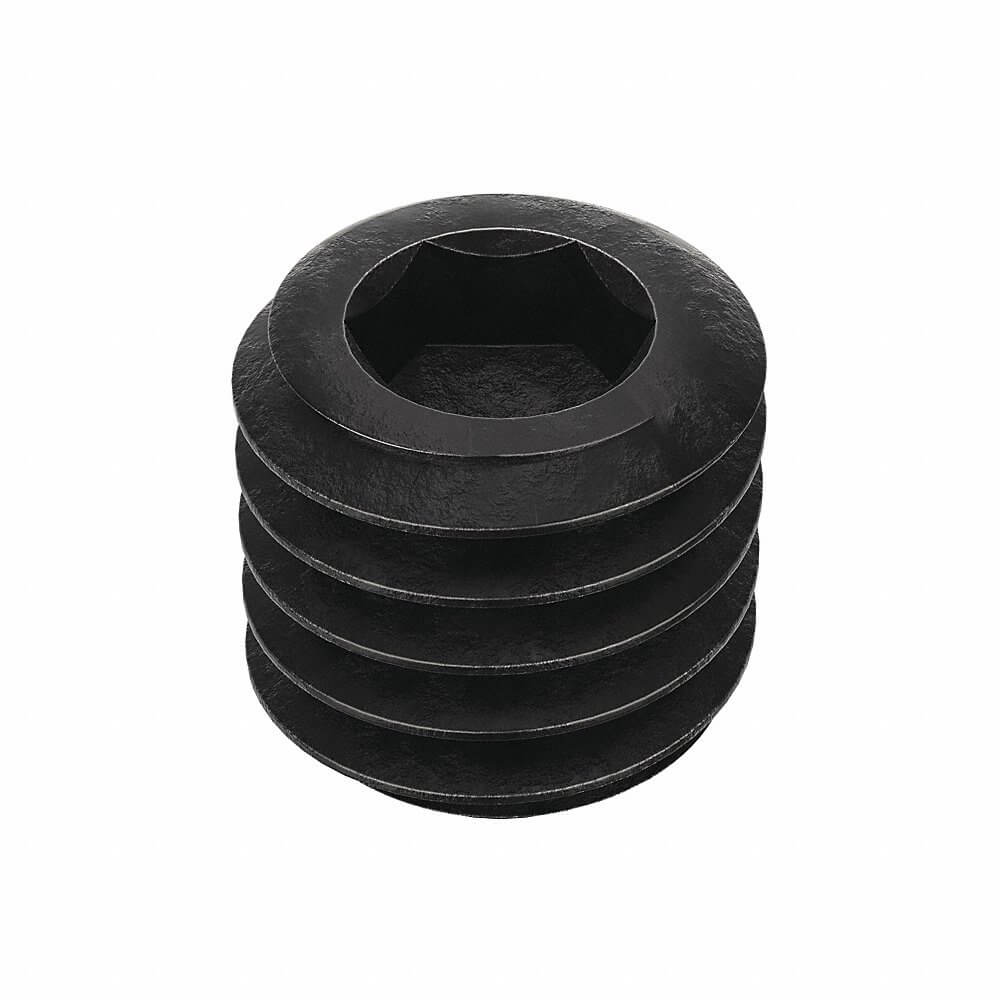

APPROVED VENDOR U07840.043.0043 Socket Set Screw, 7/16 In - 14 Thread Size, Pln, 7/16 In Lg., 7/32 In Drive Size, Cup
Get it by Monday, Mar 2
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€36.52 /pkg. of 50
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Socket Set Screw |
| Class | Class 3A |
| Decimal Equivalent | 0.437" |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 50 |
| Drive Size | 7/32" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C45-C53 |
| Head Type | Headless |
| Length | 7/16" |
| Material | Alloy Steel |
| Maximum Point Diameter | 0.252" |
| Minimum Point Diameter | 0.232" |
| Overall Length | 7/16" |
| Point Dia. | 0.232" to 0.252" |
| Point Material | Alloy Steel |
| Point Type | Cup |
| System Of Measurement | Imperial |
| Thread Fit | 3A |
| Thread Size | 7/16"-14 |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 4.57 |
| HS code | 7318158020 |
| Country of Origin | TW |
Product Variants
| Product | Model | Thread Size | Drive Type | Drive Size | Hardness | Decimal Equivalent | Point Dia. | Thread Type | Display Qty | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07852.037.0037 | 3/8"-24 | Socket | 3/16" | Rockwell C45-C53 | 0.375" | 0.194" to 0.212" | Fine | 100 | 100 | €40.89 | |
 |
U07852.037.0050 | 3/8"-24 | Socket | 3/16" | Rockwell C45-C53 | 0.375" | 0.194" to 0.212" | Fine | 100 | 100 | €45.87 | |
 |
U07840.031.0043 | 5/16"-18 | Socket | 5/32" | Rockwell C45-C53 | 0.312" | 0.156" to 0.172" | Coarse | 100 | 100 | €31.47 | |
 |
U07840.031.0050 | 5/16"-18 | Socket | 5/32" | Rockwell C45-C53 | 0.312" | 0.156" to 0.172" | Coarse | 100 | 100 | €32.14 | |
 |
U07840.031.0025 | 5/16"-18 | Socket | 5/32" | Rockwell C45-C53 | 0.312" | 0.156" to 0.172" | Coarse | 100 | 100 | €32.63 | |
 |
U07840.031.0031 | 5/16"-18 | Socket | 5/32" | Rockwell C45-C53 | 0.312" | 0.156" to 0.172" | Coarse | 100 | 100 | €27.00 | |
 |
U07840.031.0037 | 5/16"-18 | Socket | 5/32" | Rockwell C45-C53 | 0.312" | 0.156" to 0.172" | Coarse | 100 | 100 | €27.86 |
