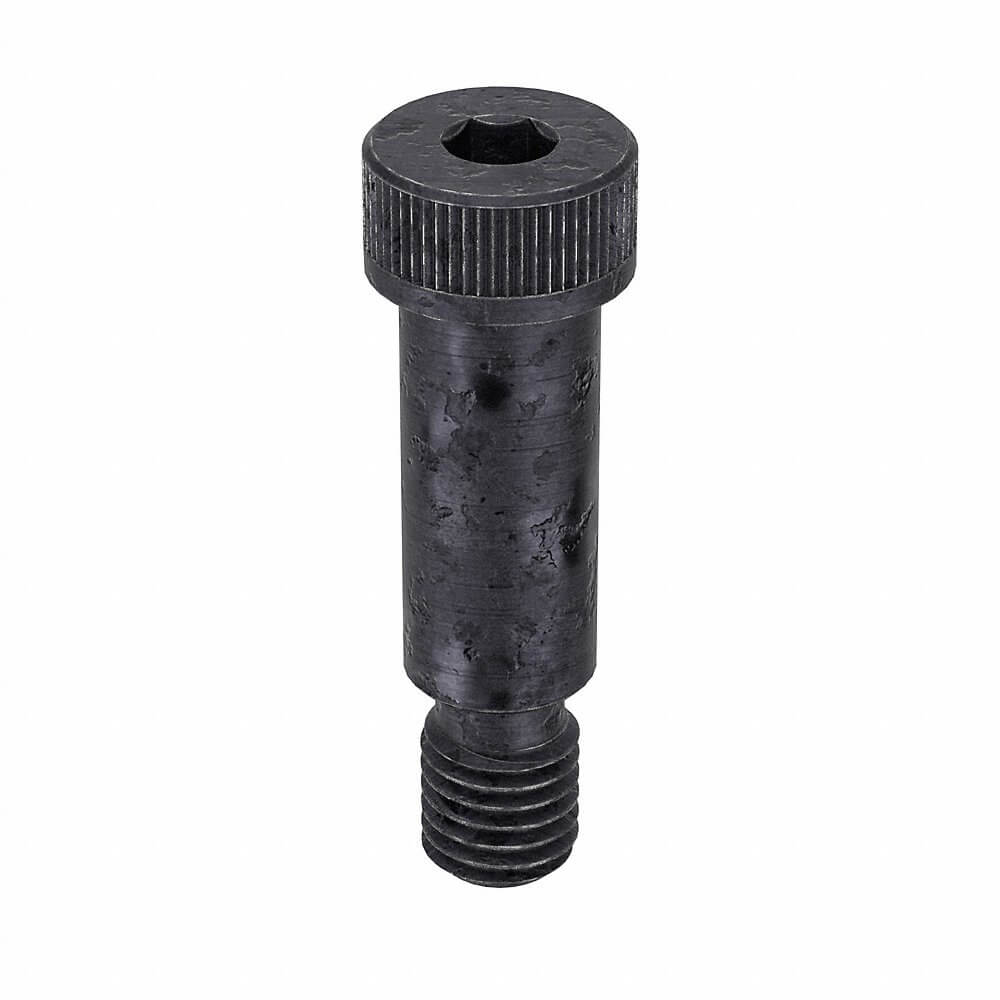

APPROVED VENDOR U07111.075.0175 Shoulder Screw, 5/8 In - 11 Thread Size, 1 3/4 In Shoulder Lg., 1/2 In Head Ht., Std, Alloy Steel
Get it by Wednesday, Feb 25
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€11.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Shoulder Screw |
| Class | Class 3A |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 1 |
| Drive Size | 3/8" |
| Drive Type | Socket |
| Finish | Plain |
| Hardness | Rockwell 32-43 |
| Head Dia. | 1" |
| Head Height | 1/2" |
| Head Texture | Knurled |
| Head Type | Standard |
| Material | Alloy Steel |
| Min. Tensile Strength | 140000 psi |
| Precision Screw | No |
| Rockwell Hardness | C32 to C43 |
| Shear Strength | 84000 psi |
| Shoulder Dia. | 3/4" |
| Shoulder Diameter Tolerance | 0.004" to 0" |
| Shoulder Length | 1 3/4" |
| Shoulder Length Tolerance | -0.005" to +0.005" |
| System Of Measurement | Imperial |
| Tensile Strength | 140000 psi |
| Thread Fit | 3A |
| Thread Length | 7/8" |
| Thread Size | 5/8"-11 |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 7.37 |
| Ship width (cm) | 6.6 |
| HS code | 7318158045 |
| Country of Origin | TW |
Product Variants
| Product | Model | Thread Size | Shoulder Length | Shoulder Dia. | Thread Length | Shoulder Length Tolerance | Head Dia. | Head Height | Dimensional Standards | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M07111.160.0070 | M12 x 1.75 | 70 mm | 16 mm | 18 mm | 0 mm to 0.25 mm | 24 mm | 11 mm | Iso 7379 | 2 | €32.30 | |
 |
M07111.160.0090 | M12 x 1.75 | 90 mm | 16 mm | 18 mm | 0 mm to 0.25 mm | 24 mm | 11 mm | Iso 7379 | 2 | €47.73 | |
 |
M07111.200.0100 | M16 x 2 | 100 mm | 20 mm | 22 mm | 0 mm to 0.25 mm | 30 mm | 14 mm | Iso 7379 | 2 | €76.30 | |
 |
M07111.200.0120 | M16 x 2 | 120 mm | 20 mm | 22 mm | 0.25 mm | 30 mm | 14 mm | - | 2 | €85.18 | |
|
M07111.240.0050 | M20 x 2.5 | 50 mm | 24 mm | 27 mm | 0 mm to 0.25 mm | 36 mm | 16 mm | Iso 7379 | 2 | €93.92 | |
|
M07111.240.0080 | M20 x 2.5 | 80 mm | 24 mm | 27 mm | 0 mm to 0.25 mm | 36 mm | 16 mm | Iso 7379 | 2 | €106.88 | |
|
M07111.240.0090 | M20 x 2.5 | 90 mm | 24 mm | 27 mm | 0 mm to 0.25 mm | 36 mm | 16 mm | Iso 7379 | 2 | €108.87 |
