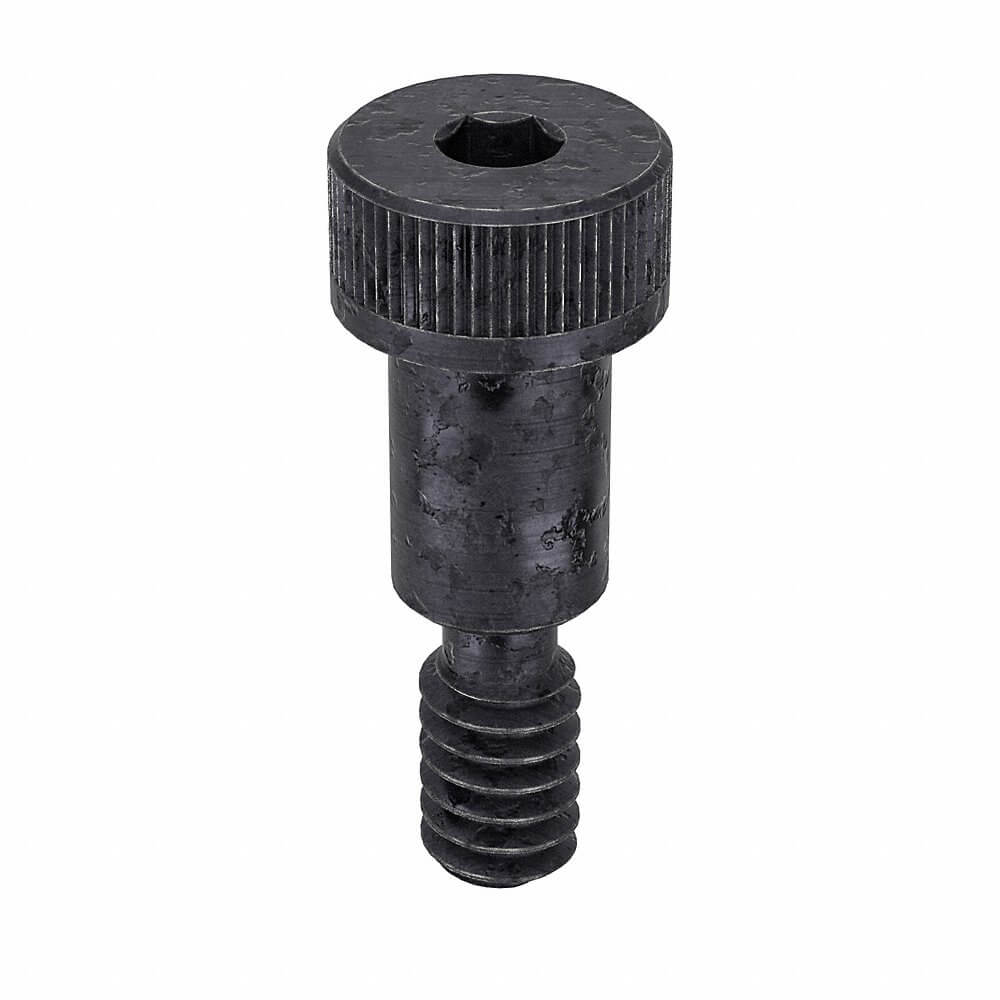

APPROVED VENDOR U07111.025.0037 Shoulder Screw, 10-24 Thread Size, 3/8 In Shoulder Lg., 3/16 In Head Ht., Alloy Steel
Item: AE2LBLModel: U07111.025.0037Cross Ref: 4XY17
7 In Stock
Ships within 2 days via
10.00% off
€19.97 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Class | Class 3A |
| Color | Black |
| Countersink Angle | 140° |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 25 |
| Drive Size | 1/8" |
| Drive Type | Socket |
| Finish | Plain |
| Hardness | Rockwell C36-C43 |
| Head Dia. | 3/8" |
| Head Height | 3/16" |
| Head Texture | Knurled |
| Head Type | Standard |
| Heat Treatment | Tempered |
| Material | Alloy Steel |
| Material Quality Standards | Astm A574 |
| Maximum Head Height | 0.188" |
| Maximum Temperature | 150°F |
| Min. Tensile Strength | 140000 psi |
| Minimum Head Height | 0.177" |
| Minimum Temperature | -50°F |
| Minimum Yield Strength | 130000 psi |
| Precision Screw | No |
| Proof Load | 120000 psi |
| Rockwell Hardness | C32 to C43 |
| Shear Strength | 84000 psi |
| Shoulder Dia. | 1/4" |
| Shoulder Diameter Tolerance | 0.002" to 0.004" |
| Shoulder Length | 3/8" |
| Shoulder Length Tolerance | -0.005" to +0.005" |
| System Of Measurement | Imperial |
| Tensile Strength | 140000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 3A |
| Thread Length | 3/8" |
| Thread Locking | No |
| Thread Size | #10-24 |
| Thread Type | Coarse |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.17 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 9.4 |
| Ship width (cm) | 7.11 |
| HS code | 7318156080 |
| Country of Origin | TW |
