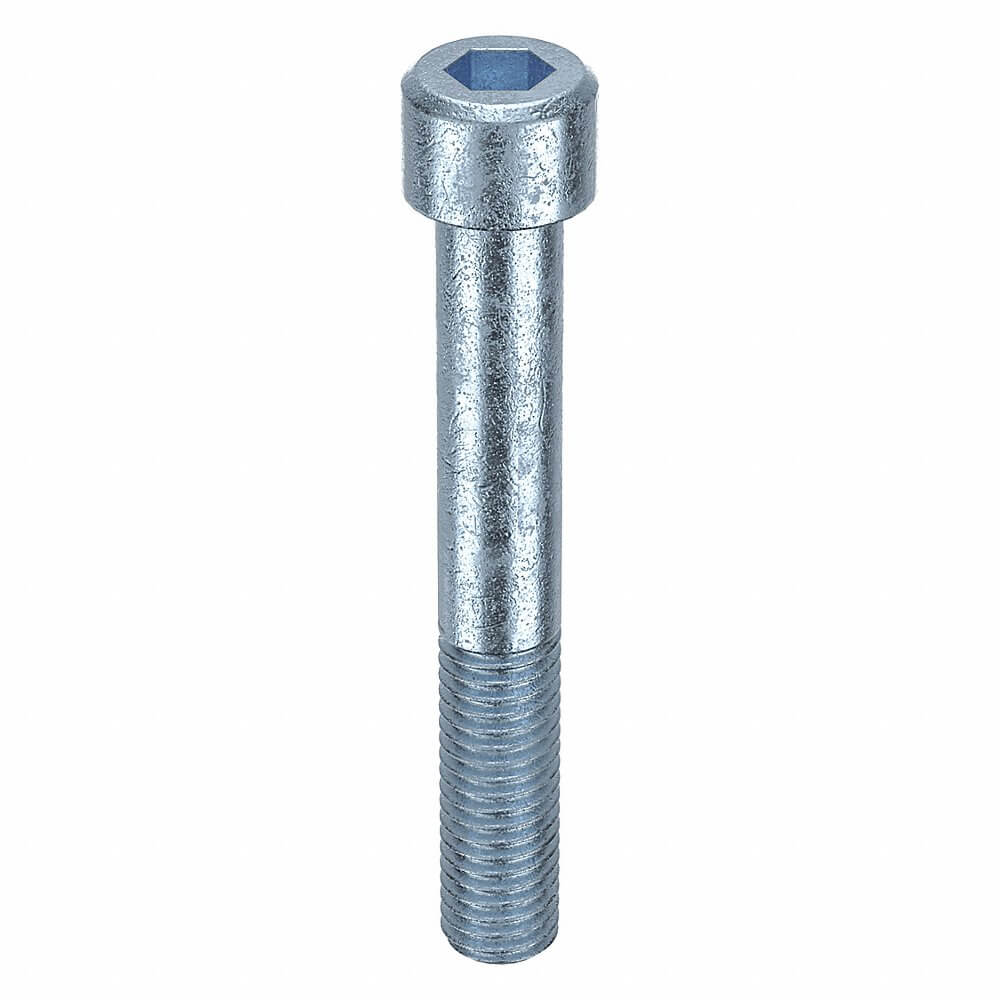

APPROVED VENDOR U07001.050.0350 Socket Head Cap Screw, 1/2 In - 13 Thread Size, Cyl., 3 1/2 In Lg., 1/2 In Head Ht., Zn Plated, Alloy Steel
Item: AB8LVTModel: U07001.050.0350Cross Ref: 26KV81
7 In Stock
Ships within 2 days via
5.00% off
€28.13 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Grade Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 5 |
| Drive Size | 3/8" |
| Drive Type | Socket |
| Finish | Zinc Plated |
| Hardness | Rockwell C37-C45 |
| Head Dia. | 3/4" |
| Head Height | 1/2" |
| Head Type | Standard |
| Length | 3 1/2" |
| Material | Steel |
| Material Type | Steel |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Tensile Strength | 170000 psi |
| Min. Thread Length | 1 1/2" |
| Screw Length | 3 1/2" |
| System Of Measurement | Imperial |
| Temp. | -58°F to +302°F |
| Tensile Strength | 170000 psi |
| Thread Direction | Right Hand |
| Thread Length | 1 1/2" |
| Thread Size | 1/2"-13 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.55 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158045 |
| Country of Origin | TW |
Product Variants
| Product | Model | Head Dia. | Drive Size | Head Height | Thread Style | Min. Thread Length | Thread Length | Display Qty | Thread Direction | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07001.011.0062 | 1/4" | 3/32" | 0.112" | Fully Threaded | 5/8" | 5/8" | 100 | Right Hand | 100 | €19.39 | |
 |
U07001.012.0025 | 0.218" | 3/32" | 0.125" | Fully Threaded | 1/4" | 1/4" | 100 | Right Hand | 100 | €18.15 | |
 |
U07001.012.0037 | 0.218" | 3/32" | 0.125" | Fully Threaded | 3/8" | 3/8" | 100 | Right Hand | 100 | €18.60 | |
 |
U07001.012.0050 | 0.218" | 3/32" | 0.125" | Fully Threaded | 1/2" | 1/2" | 100 | Right Hand | 100 | €19.61 | |
|
U07001.012.0062 | 0.218" | 3/32" | 0.125" | Fully Threaded | 5/8" | 5/8" | 100 | Right Hand | 100 | €19.87 | |
|
U07001.012.0075 | 0.218" | 3/32" | 0.125" | Fully Threaded | 3/4" | 3/4" | 100 | Right Hand | 100 | €21.09 | |
 |
U07001.016.0087 | 5/16" | 9/64" | 0.164" | Fully Threaded | 7/8" | 7/8" | 100 | Right Hand | 100 | €23.86 |
