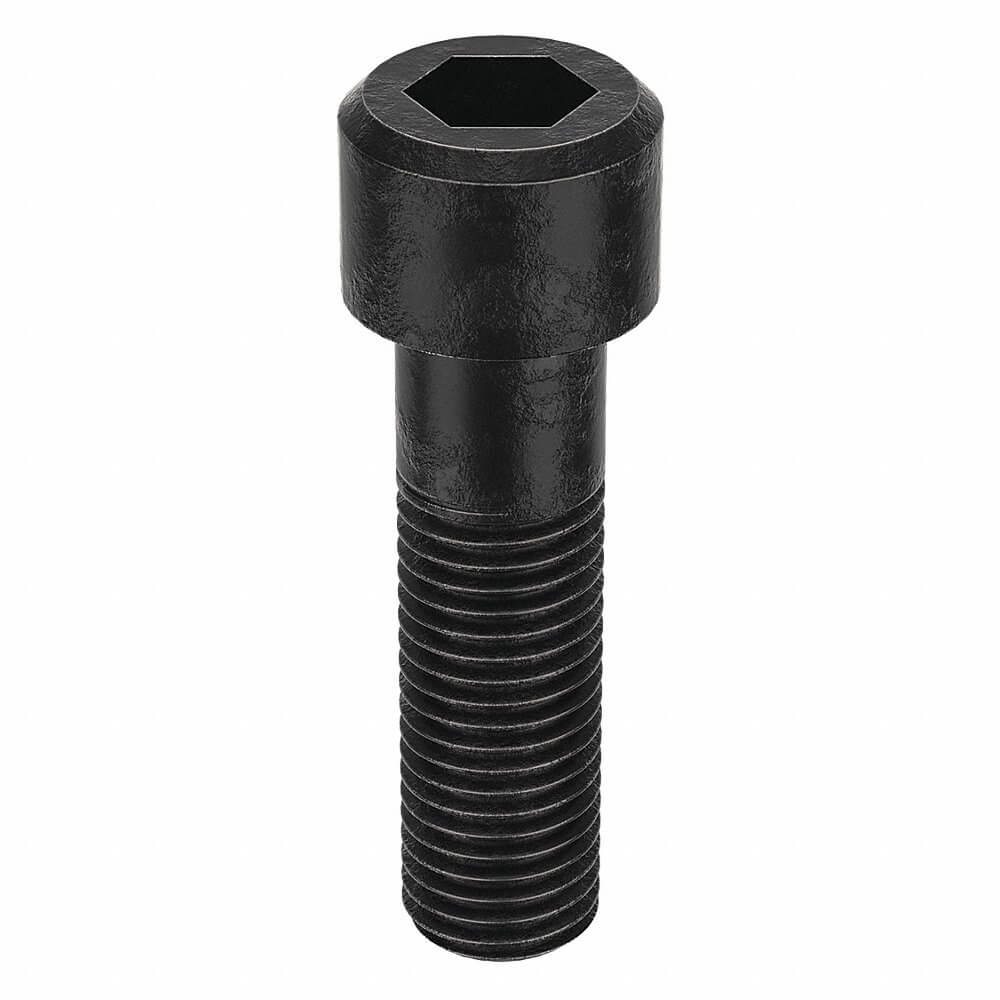

APPROVED VENDOR U07000.112.0400 Socket Head Cap Screw, 1 1/8 In - 7 Thread Size, Cylindrical, 4 In Lg., 1 1/8 In Head Ht.
Get it by Monday, Mar 2
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€49.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Socket Head Cap Screw |
| Combined Material & Grade | Grade Steel |
| Dimensional Standards | ASME B18.3 |
| Display Qty | 1 |
| Drive Size | 7/8" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C37-C45 |
| Head Dia. | 1.688" |
| Head Height | 1 1/8" |
| Head Type | Standard |
| Length | 4" |
| Material | Steel |
| Material Type | Steel |
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 170000 psi |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 2 13/16" |
| Screw Length | 4" |
| System Of Measurement | Imperial |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 170000 psi |
| Thread Direction | Right Hand |
| Thread Length | 2 13/16" |
| Thread Size | 1 1/8"-7 |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.66 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158045 |
| Country of Origin | TW |
Product Variants
| Product | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M07000.060.0008 | M6 x 1 | Fully Threaded | 5 mm | 10 mm | 6 mm | 8 mm | 176000 psi | Rockwell C39-C44 | 100 | €27.02 | |
 |
M07000.060.0014 | M6 x 1 | Fully Threaded | 5 mm | 10 mm | 6 mm | 14 mm | 176000 psi | Rockwell C39-C44 | 100 | €22.12 | |
 |
U07000.007.0018 | #1-64 | Fully Threaded | 1/16" | 1/8" | 0.073" | 3/16" | 170000 psi | Rockwell C37-C45 | 100 | €46.39 | |
 |
U07000.007.0025 | #1-64 | Fully Threaded | 1/16" | 1/8" | 0.073" | 1/4" | 170000 psi | Rockwell C37-C45 | 100 | €47.39 | |
 |
U07000.007.0031 | #1-64 | Fully Threaded | 1/16" | 1/8" | 0.073" | 5/16" | 170000 psi | Rockwell C37-C45 | 100 | €45.65 | |
|
U07000.007.0037 | #1-64 | Fully Threaded | 1/16" | 1/8" | 0.073" | 3/8" | 170000 psi | Rockwell C37-C45 | 100 | €47.89 | |
|
U07000.007.0050 | #1-64 | Fully Threaded | 1/16" | 1/8" | 0.073" | 1/2" | 170000 psi | Rockwell C37-C45 | 100 | €46.39 |
