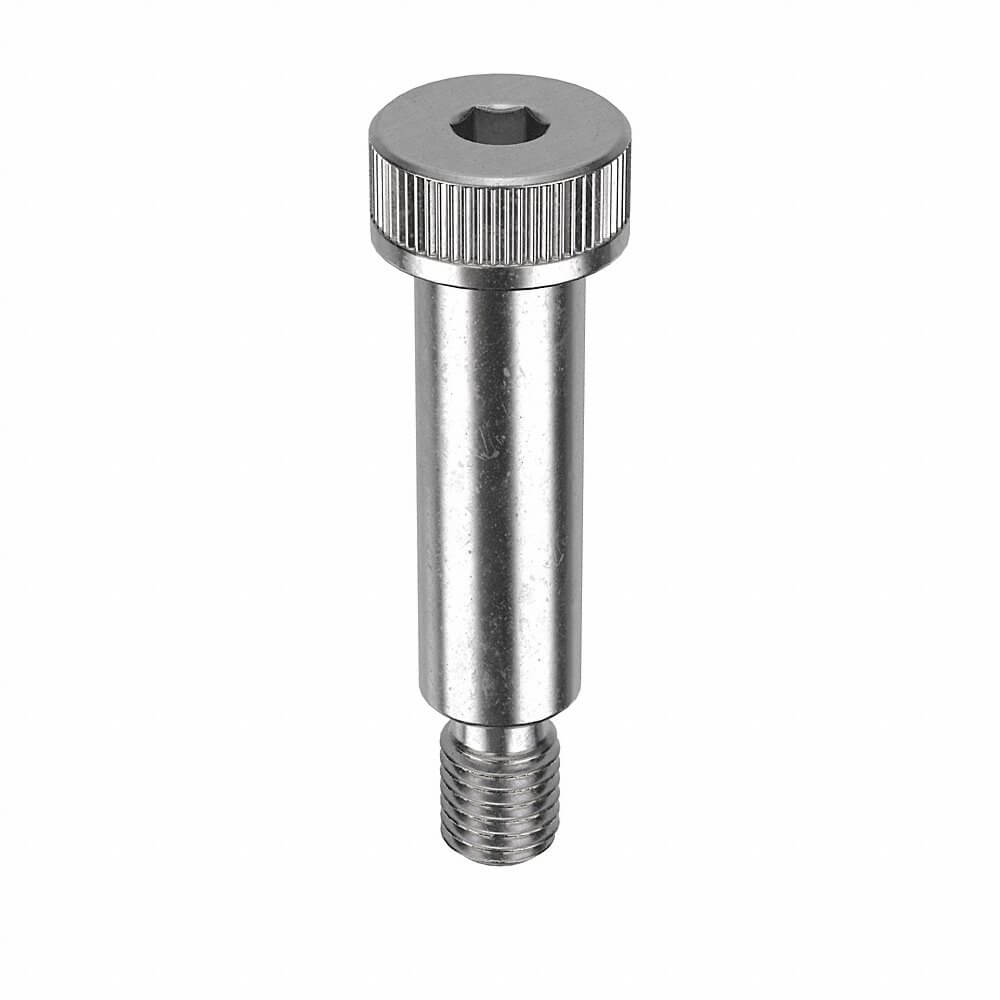

APPROVED VENDOR STR602M16X50 Shoulder Screw, M12x1.75 Thread Size, 50 mm Shoulder Lg., 11 mm Head Ht.
Item: AB8JTZModel: STR602M16X50Cross Ref: 25L664
7 In Stock
Ships within 2 days via
10.00% off
€71.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Dimensional Standards | Iso 7379-1983 |
| Display Qty | 1 |
| Drive Size | 8 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 316 |
| Hardness | Rockwell B55 |
| Head Dia. | 24 mm |
| Head Height | 11 mm |
| Head Texture | Knurled |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 316 |
| Min. Tensile Strength | 70000 psi |
| Precision Screw | No |
| Rockwell Hardness | B55 |
| Shoulder Dia. | 16 mm |
| Shoulder Diameter Tolerance | -0.04 mm to 0 mm |
| Shoulder Length | 50 mm |
| Shoulder Length Tolerance | -0 mm to +0.25 mm |
| System Of Measurement | Metric |
| Tensile Strength | 70000 psi |
| Thread Fit | Class 5G, Class 6G |
| Thread Length | 18 mm |
| Thread Size | M12 x 1.75 |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 8.13 |
| Ship width (cm) | 2.54 |
| HS code | 7318158030 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Shoulder Length | Shoulder Dia. | Thread Length | Shoulder Length Tolerance | Head Dia. | Head Height | Dimensional Standards | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
STR60218C02 | #4-40 | 1/8" | 1/8" | 5/32" | -0.005" to +0.005" | 1/4" | 1/8" | ASME B18.3 | 1 | €11.12 | |
 |
STR60218C02.5 | #4-40 | 5/32" | 1/8" | 5/32" | -0.005" to +0.005" | 1/4" | 1/8" | ASME B18.3 | 1 | €16.15 | |
 |
STR60218C03.5 | #4-40 | 7/32" | 1/8" | 5/32" | -0.005" to +0.005" | 1/4" | 1/8" | ASME B18.3 | 1 | €17.14 | |
 |
STR60218C04.5 | #4-40 | 9/32" | 1/8" | 5/32" | -0.005" to +0.005" | 1/4" | 1/8" | ASME B18.3 | 1 | €18.34 | |
 |
STR60218C05.5 | #4-40 | 11/32" | 1/8" | 5/32" | -0.005" to +0.005" | 1/4" | 1/8" | ASME B18.3 | 1 | €15.84 | |
 |
STR60218C06.5 | #4-40 | 13/32" | 1/8" | 5/32" | -0.005" to +0.005" | 1/4" | 1/8" | ASME B18.3 | 1 | €16.67 | |
 |
STR60218C07.5 | #4-40 | 15/32" | 1/8" | 5/32" | -0.005" to +0.005" | 1/4" | 1/8" | ASME B18.3 | 1 | €15.74 |
