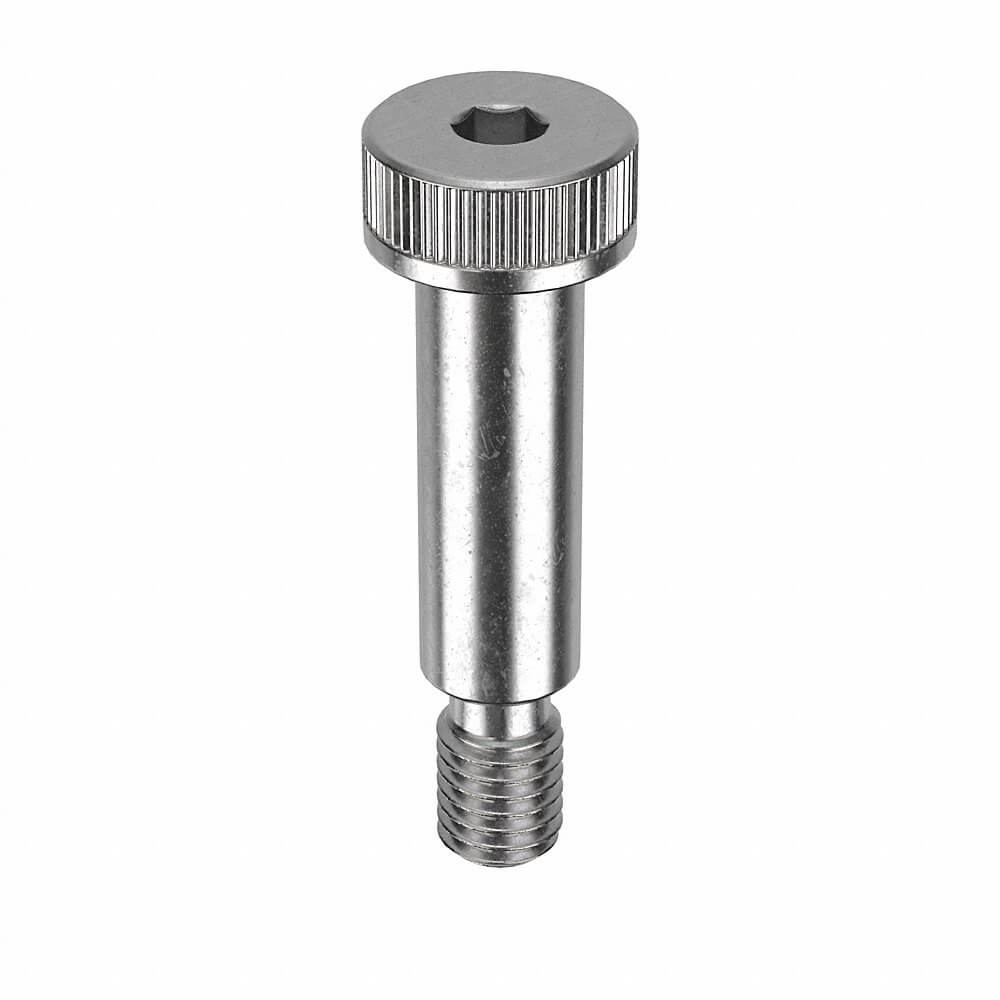

APPROVED VENDOR STR602M10X30 Shoulder Screw, M8x1.25 Thread Size, 30 mm Shoulder Lg., 7 mm Head Ht., Gr. 316
Item: AB8JTHModel: STR602M10X30Cross Ref: 25L649
7 In Stock
Ships within 2 days via
5.00% off
€40.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Dimensional Standards | Iso 7379-1983 |
| Display Qty | 1 |
| Drive Size | 5 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 316 |
| Hardness | Rockwell B55 |
| Head Dia. | 16 mm |
| Head Height | 7 mm |
| Head Texture | Knurled |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 316 |
| Min. Tensile Strength | 70000 psi |
| Precision Screw | No |
| Rockwell Hardness | B55 |
| Shoulder Dia. | 10 mm |
| Shoulder Dia. Tolerance | -0.04 mm to 0 mm |
| Shoulder Length | 30 mm |
| Shoulder Length Tolerance | -0 mm to +0.25 mm |
| System Of Measurement | Metric |
| Tensile Strength | 70000 psi |
| Thread Fit | Class 5G, Class 6G |
| Thread Length | 13 mm |
| Thread Size | M8 x 1.25 |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship height (cm) | 1.52 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.52 |
| HS code | 7318158030 |
| Country of Origin | US |
Product Variants
| Product | Model | Head Dia. | Shoulder Dia. | Shoulder Length | Thread Length | Head Height | Shoulder Length Tolerance | Shoulder Dia. Tolerance | Thread Fit | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
STR60218C02 | 1/4" | 1/8" | 1/8" | 5/32" | 1/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €11.23 | |
 |
STR60218C02.5 | 1/4" | 1/8" | 5/32" | 5/32" | 1/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €16.34 | |
 |
STR60218C03.5 | 1/4" | 1/8" | 7/32" | 5/32" | 1/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €17.33 | |
 |
STR60218C04.5 | 1/4" | 1/8" | 9/32" | 5/32" | 1/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €18.54 | |
 |
STR60218C05.5 | 1/4" | 1/8" | 11/32" | 5/32" | 1/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €16.00 | |
 |
STR60218C06.5 | 1/4" | 1/8" | 13/32" | 5/32" | 1/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €16.76 | |
 |
STR60218C07.5 | 1/4" | 1/8" | 15/32" | 5/32" | 1/8" | -0.005" to +0.005" | 0.002" to 0.004" | 3A | 1 | €15.91 |
