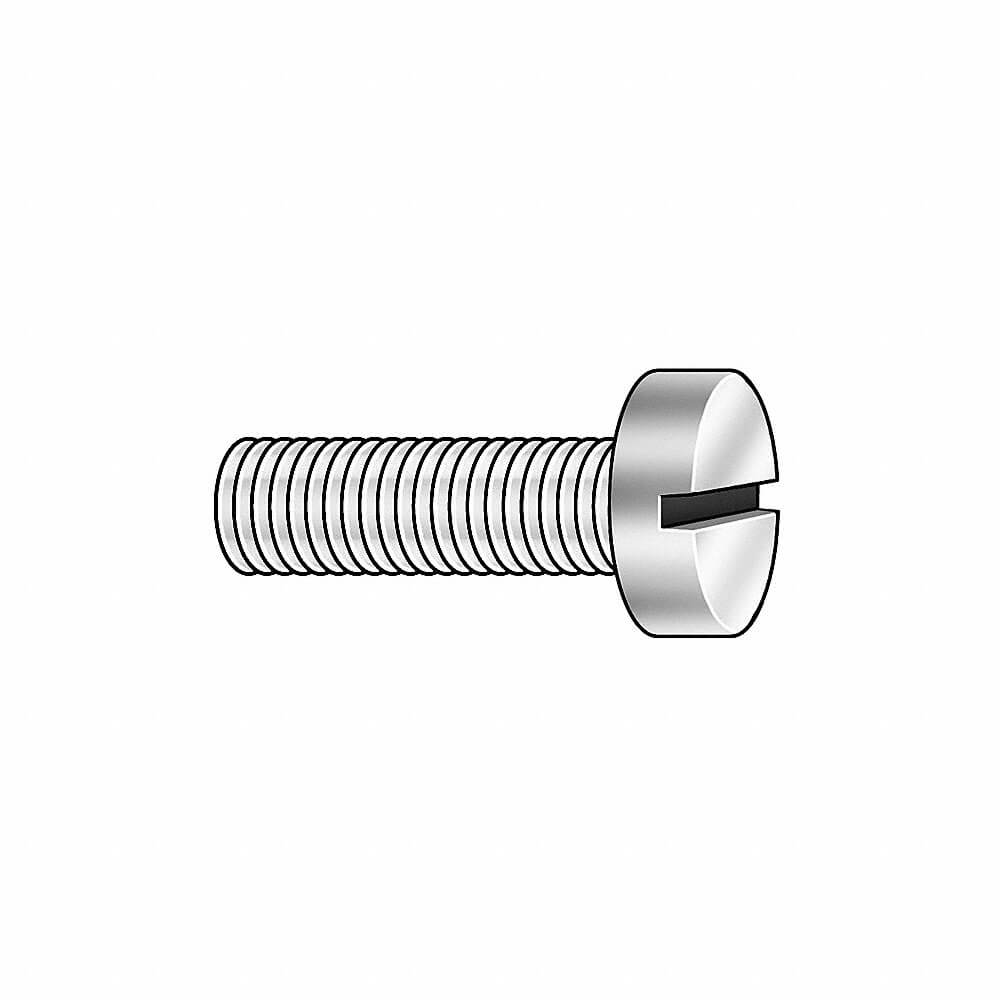

APPROVED VENDOR MSCD020030-100P1 Machine Screw, M2x0.4 Thread Size, Steel, 3 mm Lg., Std, Cheese
Item: AE9ENNModel: MSCD020030-100P1Cross Ref: 6JA83
7 In Stock
Ships within 2 days via
5.00% off
€14.10 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Machine Screw |
| Class | Class 4.8 |
| Dimensional Standards | Din 84A, Din En Iso 1207 |
| Drive | Slotted |
| Drive Type | Slotted |
| Fastener Length | 3 mm |
| Finish | Zinc Plated |
| Hardness | Rockwell B71-B99 |
| Head Dia. | 3.8 mm |
| Head Type | Cheese |
| Length | 3 mm |
| Machine Screw Type | Standard Machine Screw |
| Material | Steel |
| Material Grade/class | 4.8 |
| Rockwell Hardness | B71 to B99 |
| Screw Size | M2 |
| System Of Measurement | Metric |
| Tensile Strength | 60900 psi |
| Thread Fit | 6G |
| Thread Length | 3 mm |
| Thread Pitch | 0.4 mm |
| Thread Size | M2 |
| Thread Type | Coarse |
| Type | Standard Machine Screw |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 1.27 |
| HS code | 7318156080 |
| Country of Origin | TW |
Product Variants
| Product | Model | Head Height | Fastener Length | Head Dia. | Screw Size | Thread Length | Drive Size | Thread Fit | Min. Thread Length | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M24520.030.0006 | 2 mm | 6 mm | 5.5 mm | M3 | 6 mm | - | 6G | - | 100 | €8.61 | |
 |
M24520.030.0008 | 2 mm | 8 mm | 5.5 mm | M3 | 8 mm | - | 6G | - | 100 | €9.08 | |
 |
M24520.030.0010 | 2 mm | 10 mm | 5.5 mm | M3 | 10 mm | - | 6G | - | 100 | €12.96 | |
 |
M24520.030.0012 | 2 mm | 12 mm | 5.5 mm | M3 | 12 mm | - | 6G | - | 100 | €13.16 | |
 |
M24520.030.0016 | 2 mm | 16 mm | 5.5 mm | M3 | 16 mm | - | 6G | - | 100 | €10.98 | |
 |
M24520.030.0020 | 2 mm | 20 mm | 5.5 mm | M3 | 20 mm | - | 6G | - | 100 | €10.06 | |
 |
M24520.030.0025 | 2 mm | 25 mm | 5.5 mm | M3 | 25 mm | - | 6G | - | 100 | €11.45 |
