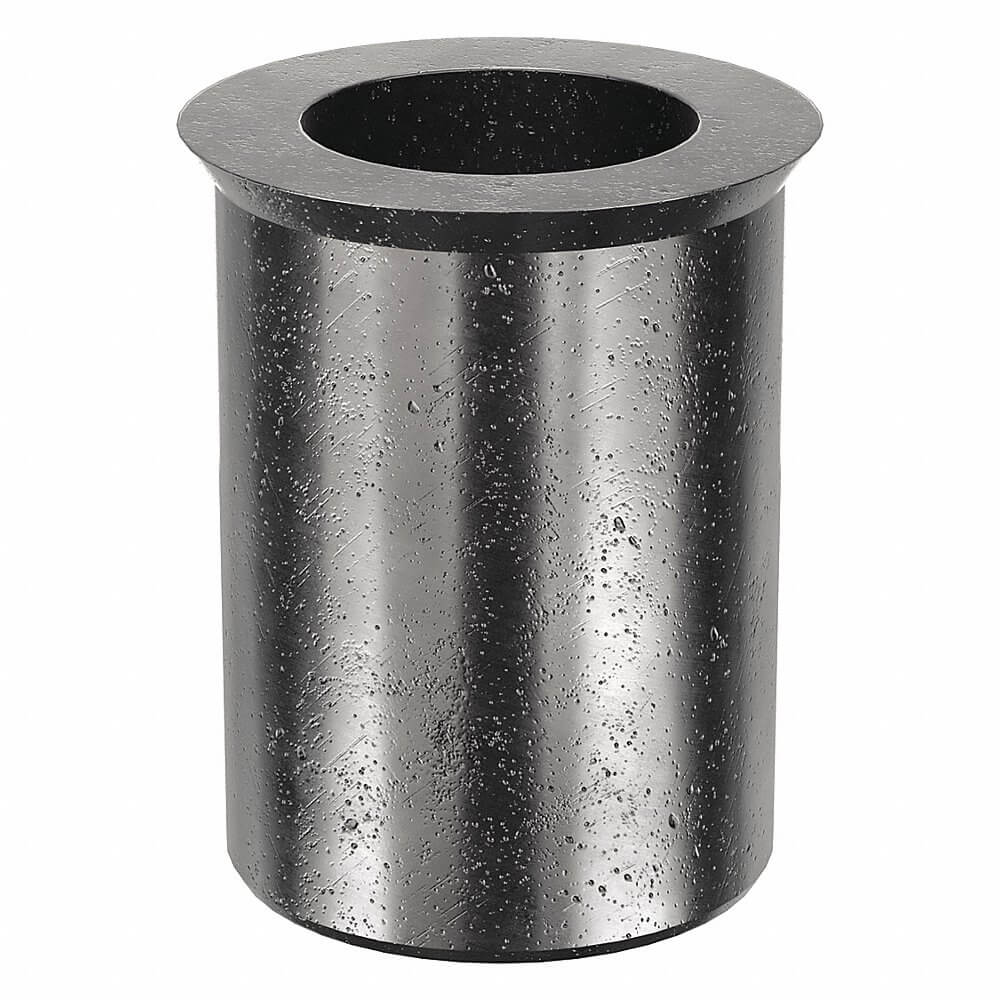

APPROVED VENDOR M69155.080.0200 Rivet Nut, M8x1.25 Thread Size, Steel, 0.647 In Lg., 0.04 In To 0.2 In Grip Rng, Flush
Item: AE4WYLModel: M69155.080.0200Cross Ref: 5NNK9
7 In Stock
Ships within 2 days via
10.00% off
€21.86 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rivet Nut |
| Body Dia. | 0.499" |
| Body Length | 16.4338 mm |
| Compatible Material | Fiberglass, Metal, Plastic |
| Display Qty | 25 |
| Drill Size | 1/2" |
| End Type | Open |
| Finish | Plain |
| Flange Dia. | 14/25" |
| Flange Diameter | 14.2 mm |
| Flange Style | Flush |
| Flange Thickness | 1.143 mm |
| Grip Range | 0.04" to 0.2" |
| Head Height | 0.045" |
| Insert Diameter | 12.7 mm |
| Insert Nut Type | Rivet Nut |
| Length | 0.647" |
| Material | Steel |
| Maximum Hole Diameter | 12.7 mm |
| Maximum Material Thickness | 5.08 mm |
| Minimum Material Thickness | 1.016 mm |
| Nut Type | Flush |
| Overall Length | 16.4 mm |
| Rivet Type | Flush |
| System Of Measurement | Metric |
| Thread Size | M8 x 1.25 |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.05 |
| Ship width (cm) | 14.73 |
| HS code | 7318190000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Thread Size | Rivet Type | Flange Dia. | Finish | Drill Size | Head Height | Grade | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U69136.019.0080 | #10-24 | Flanged | 13/32" | Plain | 1/4" | 0.038" | - | 100 | €22.58 | |
 |
U69136.037.0200 | 3/8"-16 | Flanged | 0.78125" | Plain | 1/2" | 0.088" | - | 20 | €16.92 | |
 |
U69136.031.0125 | 5/16"-18 | Flanged | 0.665" | Plain | Z | 1/16" | - | 25 | €16.46 | |
 |
U69136.037.0115 | 3/8"-16 | Flanged | 0.78125" | Plain | 1/2" | 0.088" | - | 25 | €20.29 | |
 |
U69136.025.0138 | 1/4"-20 | Flanged | 0.475" | Plain | Q | 0.06" | - | 40 | €21.47 | |
 |
U69136.025.0200 | 1/4"-20 | Flanged | 0.475" | Plain | Q | 0.058" | - | 40 | €24.61 | |
 |
U69136.016.0120 | #8-32 | Flanged | 0.357" | Plain | #2 | 0.032" | - | 50 | €37.48 |
