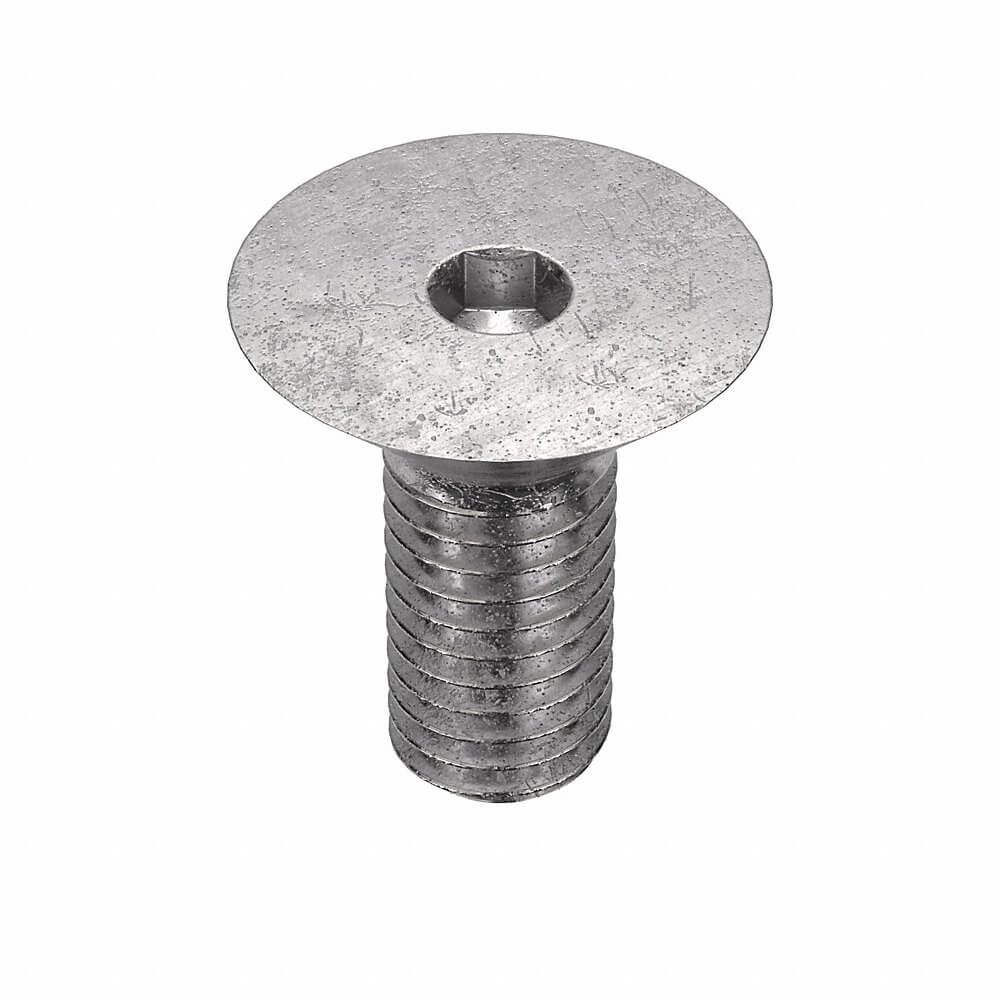

APPROVED VENDOR M55060.050.0010 Metric Socket Head Cap Screw, M5x0.8 Thread Size, Flat, 10mm Lg., 3.2mm Head Ht., Gr. A4
Item: AB8NTGModel: M55060.050.0010Cross Ref: 26LF90
7 In Stock
Ships within 2 days via
5.00% off
€8.15 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Metric Socket Head Cap Screw |
| Color | Silver |
| Combined Grade | Grade 316 |
| Combined Material | Stainless Steel |
| Countersink Angle | 90° |
| Dimensional Standards | DIN 7991 |
| Display Qty | 50 |
| Drive Size | 3 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade A4 |
| Hardness | Rockwell C32-C39 |
| Head Dia. | 11.2 mm |
| Head Height | 3.2 mm |
| Head Texture | Smooth |
| Head Type | Flat |
| Included Washers | No |
| Length | 10 mm |
| Material | Stainless Steel |
| Material Grade | Grade 316 |
| Material Grade/class | 316 |
| Material Quality Standards | Astm A307A |
| Material Type | Stainless Steel |
| Max. Head Height | 3.1 mm |
| Max. Temp. | 550°F |
| Min. Temp. | -50°F |
| Min. Tensile Strength | 700 N/sq. mm |
| Min. Thread Length | 10 mm |
| Min. Yield Strength | 81000 psi |
| Non-marring Tip | No |
| Proof Load | 74000 psi |
| Screw Length | 10 mm |
| Seal Material | None |
| Sealing Gasket | No |
| System Of Measurement | Metric |
| Tensile Strength | 101500 psi |
| Thread Direction | Right Hand |
| Thread Fit | 6G |
| Thread Length | 10 mm |
| Thread Size | M5 x 0.8 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318156010 |
| Country of Origin | TW |
Product Variants
| Product | Model | Head Dia. | Drive Size | Head Height | Thread Style | Min. Thread Length | Thread Length | Temp. | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U51060.025.0100 | 0.531" | 5/32" | 0.161" | Fully Threaded | - | 1" | -50°F to +550°F | - | 100 | €27.25 | |
 |
U51060.025.0125 | 0.531" | 5/32" | 0.161" | Partially Threaded | - | 1" | -50°F to +550°F | - | 100 | €39.74 | |
 |
U51060.025.0150 | 0.531" | 5/32" | 0.161" | Partially Threaded | 1" | 1" | -50°F to +550°F | 18-8 | 100 | €42.27 | |
 |
U51060.025.0175 | 0.531" | 5/32" | 0.161" | Partially Threaded | 1" | 1" | -50°F to +550°F | 18-8 | 100 | €62.92 | |
 |
U51060.025.0250 | 0.531" | 5/32" | 0.161" | Fully Threaded | 1" | 1" | -50°F to +550°F | 18-8 | 50 | €47.86 | |
 |
U51060.031.0050 | 0.656" | 3/16" | 0.198" | Fully Threaded | 1/2" | 1/2" | -50°F to +550°F | 18-8 | 100 | €47.06 | |
 |
U51060.031.0062 | 0.656" | 3/16" | 0.198" | Fully Threaded | 5/8" | 5/8" | -50°F to +550°F | 18-8 | 100 | €48.04 |
