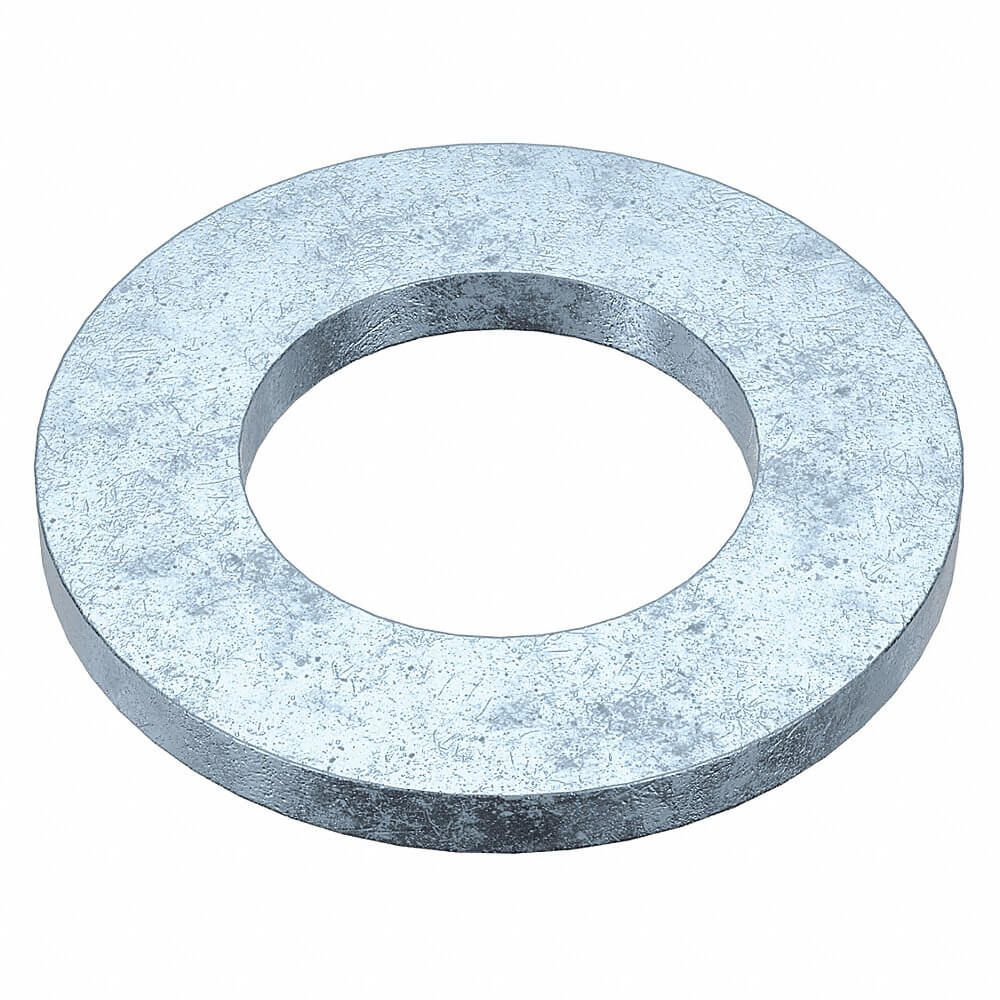

APPROVED VENDOR M38093.180.0001 Flat Washer, M18 Fits Bolt Size, Std, 19 mm I.D., 34 mm O.D., Gr. 200HV
Item: AB8EUJModel: M38093.180.0001Cross Ref: 25DK63
7 In Stock
Ships within 2 days via
5.00% off
€8.75 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | Din 125-1A |
| Finish | Zinc Plated |
| Fits Bolt Size | M18 |
| Flat Washer Type | Standard |
| For Screw Size | M18 |
| Grade | Grade 200HV |
| Inside Dia. | 19 mm |
| Inside Dia. Tolerance | 0.748" to 0.761" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Grade 200HV |
| Material Quality Standards | Astm A-325 |
| Max. Temp. | 350°C |
| Max. Thickness | 3 mm |
| Min. Temp. | -58°C |
| Min. Thickness | 3 mm |
| Outside Dia. | 34 mm |
| Outside Dia. Tolerance | 1.314" to 1.339" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 200Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Metric |
| Temp. | -58°F to +302°F |
| Thickness | 3 mm |
| Thickness Tolerance | 0.106" to 0.13" |
| Washer Type | Standard Washer |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Size | Thickness | Min. Thickness | Max. Thickness | For Screw Size | Thickness Tolerance | Inside Dia. Tolerance | Outside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M38093.060.0001 | M6 | 1.6 mm | 1.6 mm | 1.6 mm | M6 | 0.055" to 0.071" | 0.252" to 0.261" | 0.456" to 0.472" | 100 | €3.65 | |
 |
M38093.080.0001 | M8 | 1.6 mm | 1.6 mm | 1.6 mm | M8 | 0.055" to 0.071" | 0.331" to 0.339" | 0.613" to 0.63" | 100 | €5.53 | |
 |
M38093.100.0001 | M10 | 2 mm | 2 mm | 2 mm | M10 | 0.071" to 0.087" | 0.413" to 0.424" | 0.767" to 0.787" | 100 | €8.09 | |
 |
M38093.120.0001 | M12 | 2.5 mm | 2.5 mm | 2.5 mm | M12 | 0.091" to 0.106" | 0.512" to 0.522" | 0.924" to 0.945" | 50 | €7.49 | |
 |
M38093.140.0001 | M14 | 2.5 mm | 2.5 mm | 2.5 mm | M14 | 0.091" to 0.106" | 0.591" to 0.601" | 1.082" to 1.102" | 50 | €9.67 | |
 |
M38093.160.0001 | M16 | 3 mm | 3 mm | 3 mm | M16 | 0.106" to 0.13" | 0.669" to 0.68" | 1.161" to 1.181" | 25 | €8.12 | |
 |
M38093.200.0001 | M20 | 3 mm | 3 mm | 3 mm | M20 | 0.106" to 0.13" | 0.827" to 0.84" | 1.432" to 1.457" | 10 | €5.45 |
