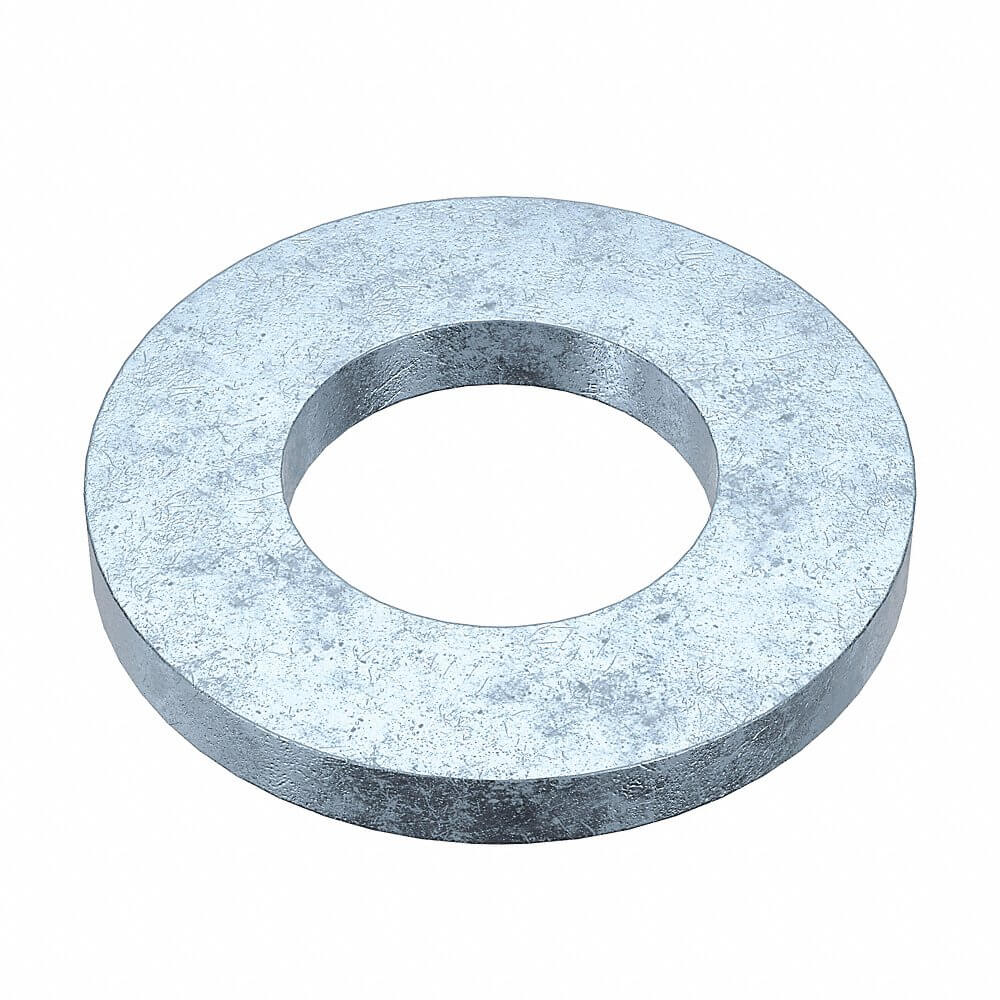

APPROVED VENDOR M38093.100.0001 Flat Washer, M10 Fits Bolt Size, Std, 10.5 mm I.D., 20 mm O.D., Gr. 200HV
Item: AB8EUEModel: M38093.100.0001Cross Ref: 25DK59
7 In Stock
Ships within 2 days via
5.00% off
€8.00 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | Din 125-1A |
| Finish | Zinc Plated |
| Fits Bolt Sizes | M10 |
| Flat Washer Type | Standard |
| For Screw Size | M10 |
| Grade | Grade 200HV |
| Inside Dia. | 10.5 mm |
| Inside Diameter Tolerance | 0.413" to 0.424" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Grade 200HV |
| Material Quality Standards | Astm A-325 |
| Maximum Temperature | 350°C |
| Maximum Thickness | 2 mm |
| Minimum Temperature | -58°C |
| Minimum Thickness | 2 mm |
| Outside Dia. | 20 mm |
| Outside Diameter Tolerance | 0.767" to 0.787" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 200Hv |
| Rohs Compliant | Yes |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Thickness | 2 mm |
| Thickness Tolerance | 0.071" to 0.087" |
| Washer Type | Standard Washer |
Shipping Info:
| Ship weight (kg) | 0.35 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 16.38 |
| HS code | 7318220000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Fits Bolt Sizes | Inside Dia. | Outside Dia. | Thickness | Thickness Tolerance | Temp. Range | Washer Type | Material | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M38093.060.0001 | M6 | 6.4 mm | 12 mm | 1.6 mm | 0.055" to 0.071" | -58°F to +302°F | Standard Washer | Steel | 100 | €3.79 | |
 |
M38093.080.0001 | M8 | 8.4 mm | 16 mm | 1.6 mm | 0.055" to 0.071" | -58°F to +302°F | Standard Washer | Steel | 100 | €5.74 | |
 |
M38093.120.0001 | M12 | 13 mm | 24 mm | 2.5 mm | 0.091" to 0.106" | -58°F to +302°F | Standard Washer | Steel | 50 | €7.76 | |
 |
M38093.140.0001 | M14 | 15 mm | 28 mm | 2.5 mm | 0.091" to 0.106" | -58°F to +302°F | Standard Washer | Steel | 50 | €10.03 | |
 |
M38093.160.0001 | M16 | 17 mm | 30 mm | 3 mm | 0.106" to 0.13" | -58°F to +302°F | Standard Washer | Steel | 25 | €8.42 | |
 |
M38093.180.0001 | M18 | 19 mm | 34 mm | 3 mm | 0.106" to 0.13" | -58°F to +302°F | Standard Washer | Steel | 25 | €9.54 | |
 |
M38093.200.0001 | M20 | 21 mm | 37 mm | 3 mm | 0.106" to 0.13" | -58°F to +302°F | Standard Washer | Steel | 10 | €5.63 |
