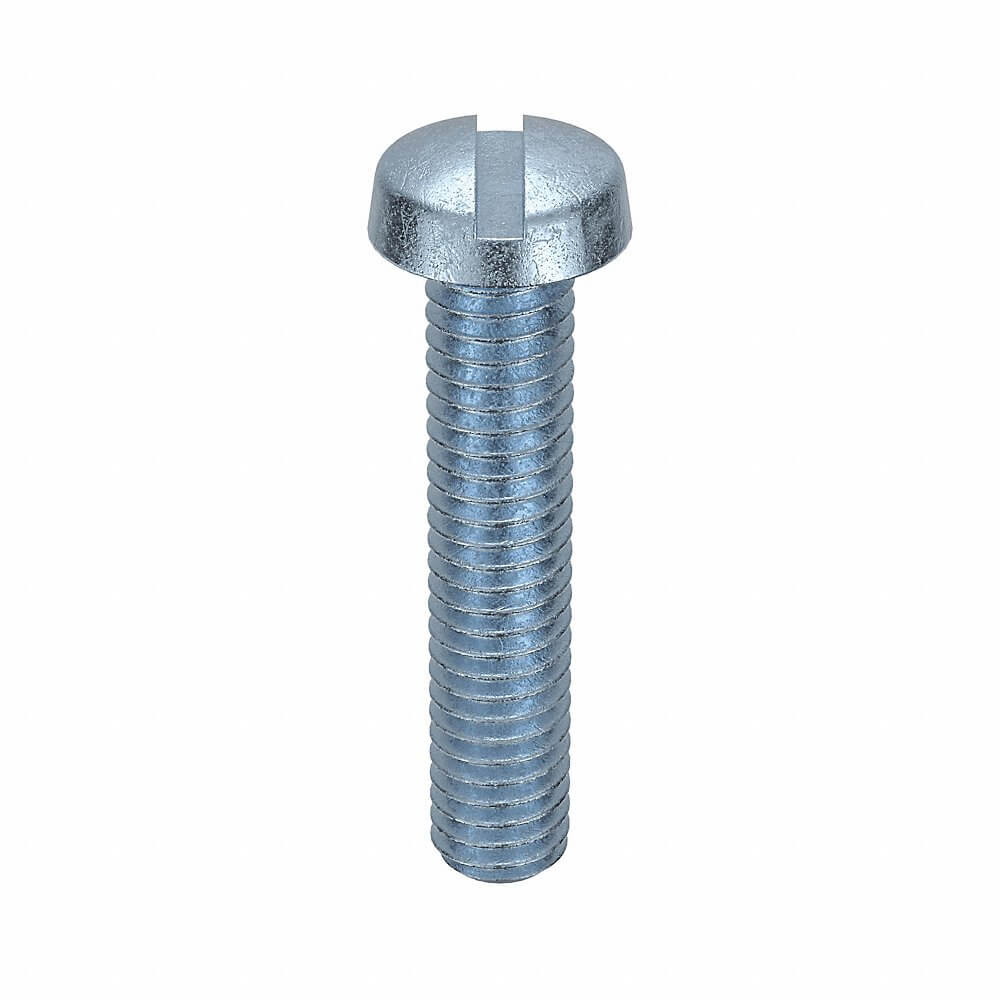

APPROVED VENDOR M24520.040.0020 Machine Screw, M4x0.7 Thread Size, Steel, 20 mm Lg., Std, Cheese
Get it by Thursday, Feb 26
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€16.46 /pkg. of 100
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Machine Screw |
| Class | Class 4.8 |
| Dimensional Standards | Din 84, Din En Iso 1207 |
| Drive | Slotted |
| Drive Type | Slotted |
| Fastener Length | 20 mm |
| Finish | Zinc Plated |
| Hardness | Rockwell B71-B99 |
| Head Dia. | 7 mm |
| Head Height | 2.6 mm |
| Head Type | Cheese |
| Length | 20 mm |
| Machine Screw Type | Standard Machine Screw |
| Material | Steel |
| Material Grade/class | 4.8 |
| Rockwell Hardness | B71 to B99 |
| Screw Size | M4 |
| System Of Measurement | Metric |
| Tensile Strength | 60900 psi |
| Thread Fit | 6G |
| Thread Length | 20 mm |
| Thread Pitch | 0.7 mm |
| Thread Size | M4 |
| Thread Type | Coarse |
| Type | Standard Machine Screw |
Shipping Info:
| Ship weight (kg) | 0.21 |
| Ship height (cm) | 3.3 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 4.57 |
| HS code | 7318154000 |
| Country of Origin | TW |
Product Variants
| Product | Model | Thread Size | Head Height | Head Dia. | Tensile Strength | Thread Length | Class | Drive Size | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSCD020030-100P1 | M2 | - | 3.8 mm | 60900 psi | 3 mm | Class 4.8 | - | Rockwell B71-B99 | 100 | €14.13 | |
 |
M24520.030.0006 | M3 | 2 mm | 5.5 mm | 60900 psi | 6 mm | Class 4.8 | - | Rockwell B71-B99 | 100 | €11.15 | |
 |
M24520.030.0008 | M3 | 2 mm | 5.5 mm | 60900 psi | 8 mm | Class 4.8 | - | Rockwell B71-B99 | 100 | €11.75 | |
 |
M24520.030.0010 | M3 | 2 mm | 5.5 mm | 60900 psi | 10 mm | Class 4.8 | - | Rockwell B71-B99 | 100 | €12.46 | |
 |
M24520.030.0012 | M3 | 2 mm | 5.5 mm | 60900 psi | 12 mm | Class 4.8 | - | Rockwell B71-B99 | 100 | €12.57 | |
 |
M24520.030.0016 | M3 | 2 mm | 5.5 mm | 60900 psi | 16 mm | Class 4.8 | - | Rockwell B71-B99 | 100 | €14.22 | |
 |
M24520.030.0020 | M3 | 2 mm | 5.5 mm | 60900 psi | 20 mm | Class 4.8 | - | Rockwell B71-B99 | 100 | €13.04 |
