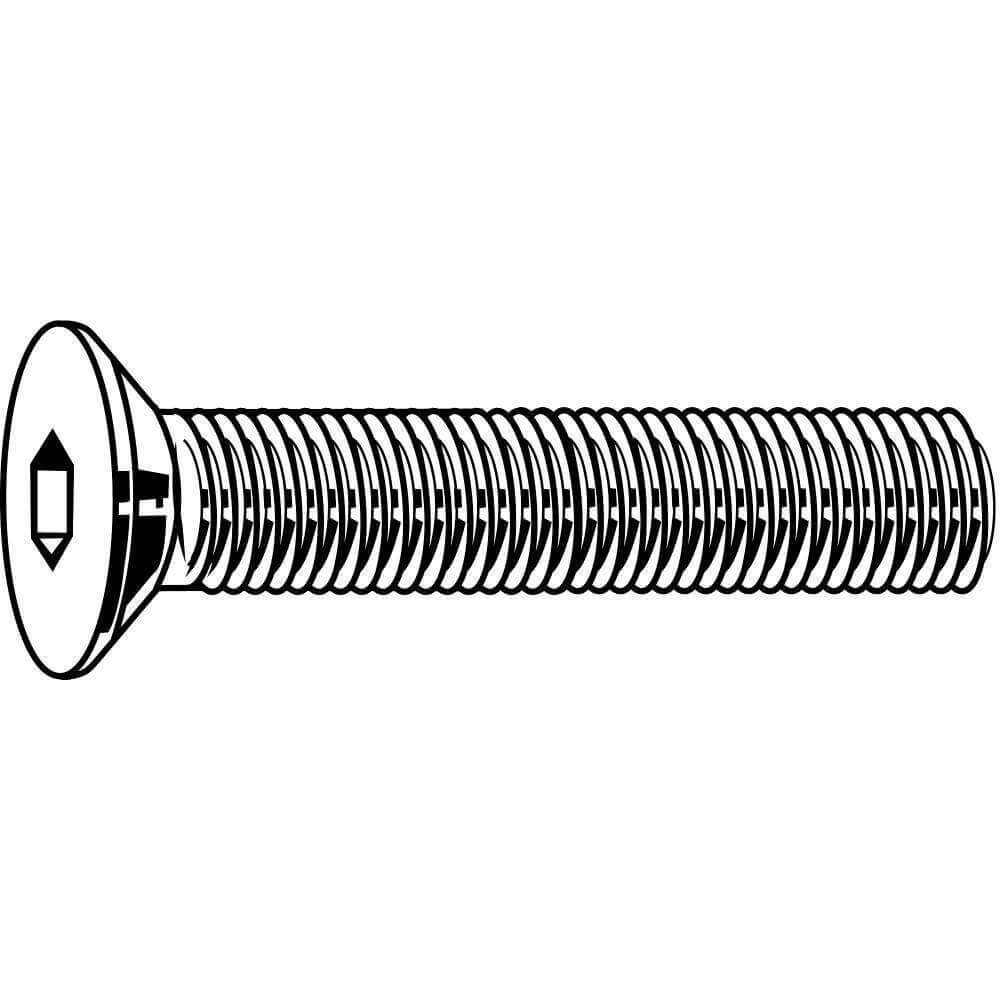

APPROVED VENDOR M07400.140.0045 Metric Socket Head Cap Screw, M14x2 Thread Size, Flat, 45 mm Lg., 8.4 mm Head Ht.
Get it by Friday, Feb 27
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€55.49 /pkg. of 25
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Metric Socket Head Cap Screw |
| Class | Class 10.9 |
| Combined Material & Grade | Class 10.9 Steel |
| Countersink Angle | 90° |
| Dimensional Standards | DIN 7991 |
| Display Qty | 25 |
| Drive Size | 10 mm |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C32-C39 |
| Head Dia. | 30.8 mm |
| Head Height | 8.4 mm |
| Head Type | Flat |
| Length | 45 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Material Type | Steel |
| Min. Tensile Strength | 1000 N/sq. mm |
| Minimum Thread Length | 45 mm |
| Screw Length | 45 mm |
| System Of Measurement | Metric |
| Tensile Strength | 145000 psi |
| Thread Direction | Right Hand |
| Thread Length | 45 mm |
| Thread Size | M14 x 2 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 1.37 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158045 |
| Country of Origin | TW |
Product Variants
| Product | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07410.050.0250 | 1/2"-13 | Partially Threaded | 5/16" | 15/16" | 0.251" | 1 1/2" | 145000 psi | Rockwell C37-C44 | 10 | €20.89 | |
 |
M07400.040.0006 | M4 x 0.7 | Fully Threaded | 2.5 mm | 8.96 mm | 2.48 mm | 6 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | €9.56 | |
 |
M07400.040.0008 | M4 x 0.7 | Fully Threaded | 2.5 mm | 8.96 mm | 2.48 mm | 8 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | €10.30 | |
 |
M07400.040.0010 | M4 x 0.7 | Fully Threaded | 2.5 mm | 8.96 mm | 2.48 mm | 10 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | €5.64 | |
 |
M07400.040.0012 | M4 x 0.7 | Fully Threaded | 2.5 mm | 8.96 mm | 2.48 mm | 12 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | €12.53 | |
 |
M07400.040.0016 | M4 x 0.7 | Fully Threaded | 2.5 mm | 8.96 mm | 2.48 mm | 16 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | €10.29 | |
 |
M07400.040.0020 | M4 x 0.7 | Fully Threaded | 2.5 mm | 8.96 mm | 2.48 mm | 20 mm | 1000 N/sq. mm | Rockwell C32-C39 | 100 | €11.55 |
