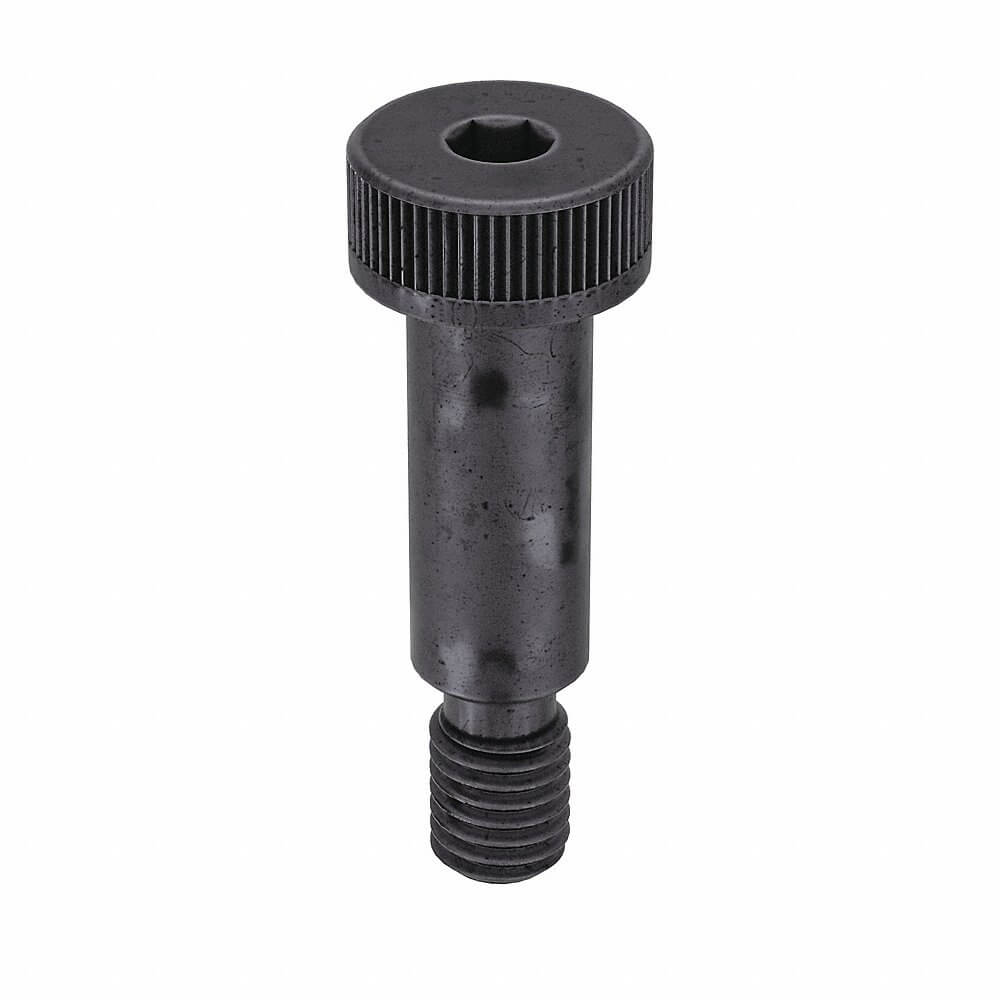

APPROVED VENDOR M07111.100.0025 Shoulder Screw, M8x1.25 Thread Size, 25mm Shoulder Lg., 7mm Head Ht., Std, Gr. 12.9
Item: AE8PHDModel: M07111.100.0025Cross Ref: 6EU45
7 In Stock
Ships within 2 days via
5.00% off
€17.67 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Class | Class 5G/6G |
| Dimensional Standards | Iso 7379 |
| Display Qty | 5 |
| Drive Size | 5 mm |
| Drive Type | Socket |
| Finish | Plain |
| Grade | Grade 12.9 |
| Hardness | Rockwell C39-C44 |
| Head Dia. | 16 mm |
| Head Height | 7 mm |
| Head Texture | Knurled |
| Head Type | Standard |
| Material | Alloy, Steel |
| Material Grade/class | Class 12.9 |
| Min. Tensile Strength | 159500 psi |
| Precision Screw | No |
| Rockwell Hardness | C39 to C44 |
| Shear Strength | 95700 psi |
| Shoulder Dia. | 10 mm |
| Shoulder Dia. Tolerance | -0.036 mm to 0 mm |
| Shoulder Length | 25 mm |
| Shoulder Length Tolerance | 0 mm to 0.25 mm |
| System Of Measurement | Metric |
| Tensile Strength | 159500 psi |
| Thread Fit | Class 5G, Class 6G |
| Thread Length | 13 mm |
| Thread Size | M8 x 1.25 |
| Type | Standard Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 3.3 |
| HS code | 7318158045 |
| Country of Origin | TW |
Product Variants
| Product | Model | Head Dia. | Shoulder Dia. | Shoulder Length | Thread Length | Head Height | Type | Shoulder Length Tolerance | Drive Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M07111.060.0010 | 10 mm | 6 mm | 10 mm | 9.5 mm | 4.5 mm | Standard | 0.25 mm | 3 mm | 5 | €11.68 | |
 |
M07111.060.0012 | 10 mm | 6 mm | 12 mm | 9.5 mm | 4.5 mm | Standard Shoulder Screw | 0 mm to 0.25 mm | 3 mm | 5 | €12.09 | |
 |
M07111.060.0016 | 10 mm | 6 mm | 16 mm | 9.5 mm | 4.5 mm | Standard Shoulder Screw | 0 mm to 0.25 mm | 3 mm | 5 | €13.33 | |
 |
M07111.060.0020 | 10 mm | 6 mm | 20 mm | 9.5 mm | 4.5 mm | Standard Shoulder Screw | 0 mm to 0.25 mm | 3 mm | 5 | €14.13 | |
 |
SBS005060-005P1 | 10 mm | 6 mm | 60 mm | 9.5 mm | 4.5 mm | Standard Shoulder Screw | 0 mm to 0.25 mm | 3 mm | 5 | €46.93 | |
 |
M07111.080.0012 | 13 mm | 8 mm | 12 mm | 11 mm | 5.5 mm | Standard Shoulder Screw | 0 mm to 0.25 mm | 4 mm | 5 | €13.27 | |
 |
M07111.080.0016 | 13 mm | 8 mm | 16 mm | 11 mm | 5.5 mm | Standard Shoulder Screw | 0 mm to 0.25 mm | 4 mm | 5 | €15.57 |
