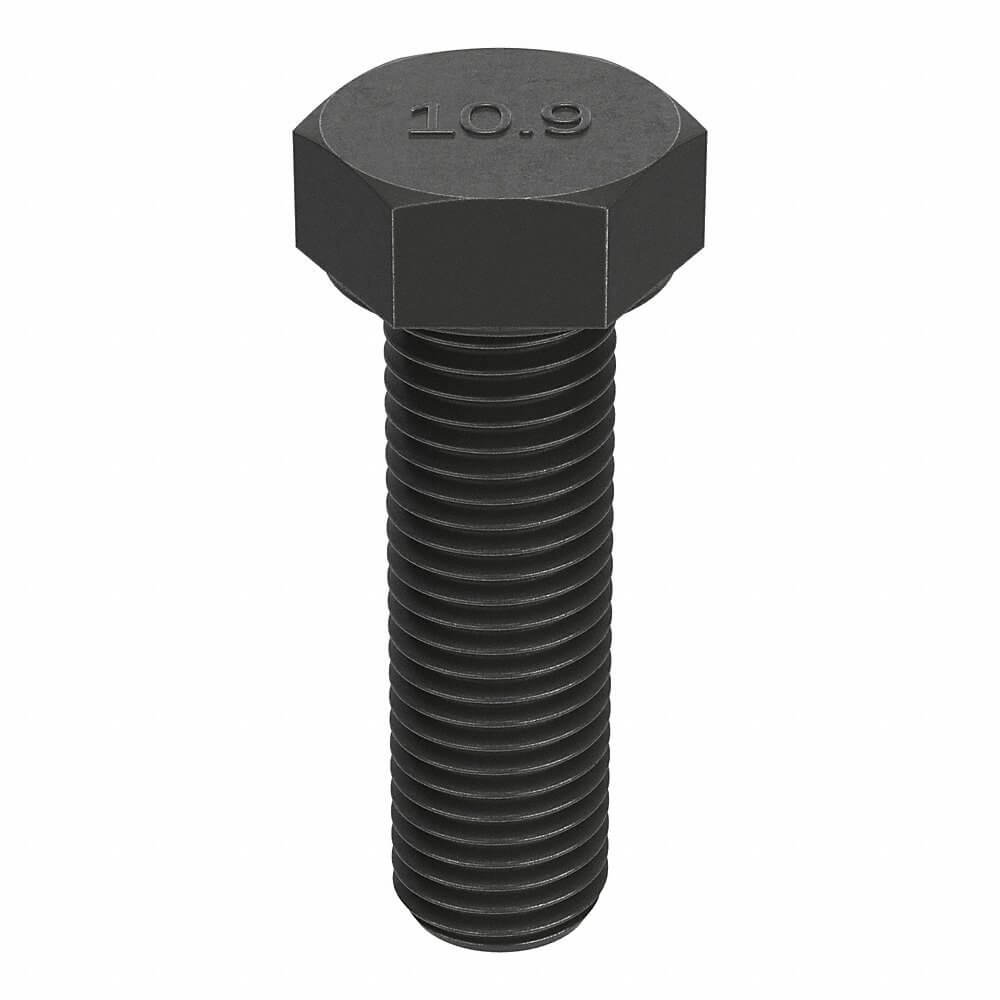

APPROVED VENDOR M04110.240.0100 Hex Head Cap Screw, M24x3 Thread Size, Steel, 100mm Lg., 15mm Head Ht., Rockwell C32 Hardness, Blk Oxide
Item: AB8EEVModel: M04110.240.0100Cross Ref: 25DG67
7 In Stock
Ships within 2 days via
5.00% off
€62.42 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Class 10.9 |
| Drive | Hex |
| Fastener Length | 100 mm |
| Finish | Plain |
| Grade | Non Graded |
| Hardness | Rockwell C32 |
| Head Height | 15 mm |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 36 mm |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 100 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Thread Length | 100mm |
| Min. Thread Length | 100 mm |
| Overall Length | 100 mm |
| Rockwell Hardness | Hrc32 |
| System Of Measurement | Metric |
| Tensile Strength | 150800 psi |
| Thread Direction | Right Hand |
| Thread Length | 100 mm |
| Thread Size | M24 x 3 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 2.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158066 |
| Country of Origin | TW |
Product Variants
| Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Tensile Strength | Head Height | Head Width | Thread Direction | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M04100.240.0075 | Partially Threaded | 54 mm | - | - | 150800 psi | 15 mm | 36 mm | Right Hand | 10 | €87.12 | |
| M04100.240.0080 | Partially Threaded | 54 mm | 80 mm | 54 mm | 150800 psi | 15 mm | 36 mm | Right Hand | 10 | €89.57 | |
| M04100.240.0090 | Partially Threaded | 54 mm | 90 mm | 54 mm | 150800 psi | 15 mm | 36 mm | Right Hand | 5 | €47.43 | |
| M04100.240.0100 | Partially Threaded | 54 mm | 100 mm | 54 mm | 150800 psi | 15 mm | 36 mm | Right Hand | 5 | €40.56 | |
| M04100.240.0110 | Partially Threaded | 54 mm | 110 mm | 54 mm | 150800 psi | 15 mm | 36 mm | Right Hand | 5 | €68.99 | |
| M04100.240.0120 | Partially Threaded | 54 mm | 120 mm | 54 mm | 150800 psi | 15 mm | 36 mm | Right Hand | 5 | €63.12 | |
| M04100.240.0130 | Partially Threaded | 60 mm | 130 mm | 60 mm | 150800 psi | 15 mm | 36 mm | Right Hand | 5 | €88.63 |
