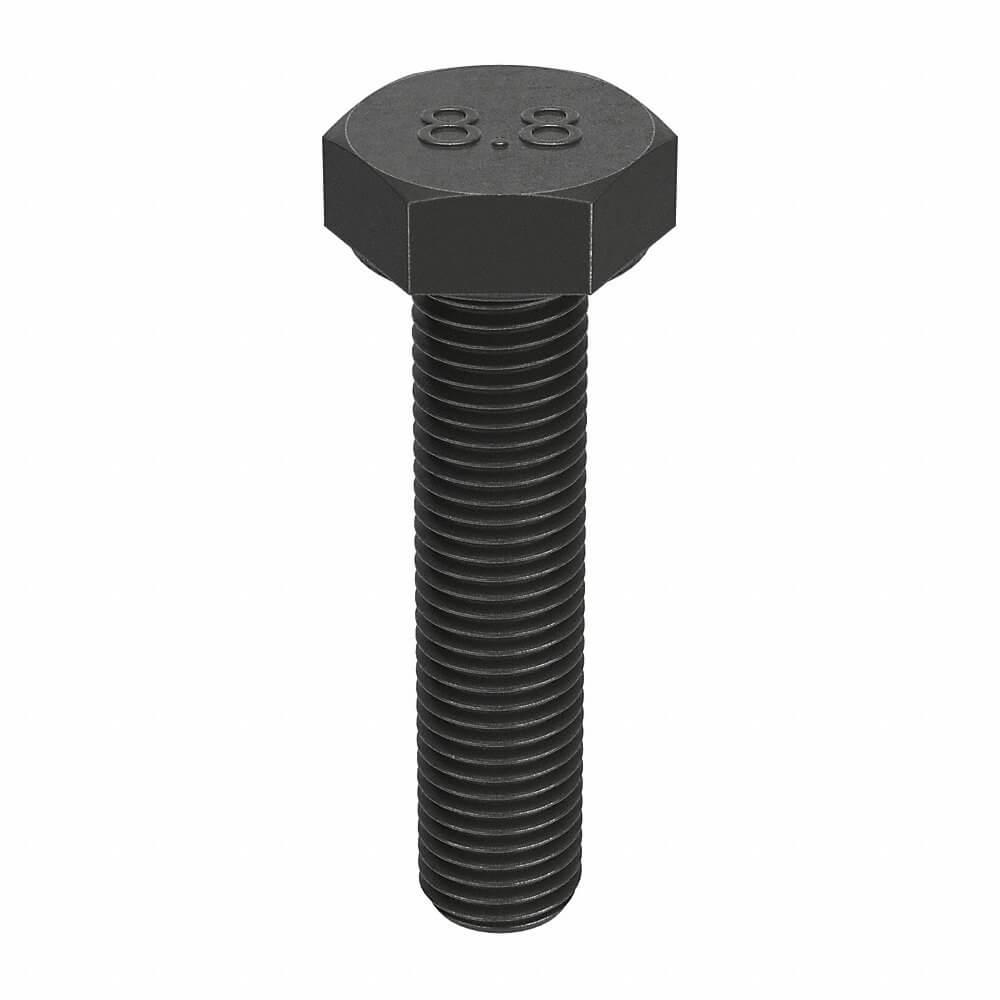

APPROVED VENDOR M01070.080.0040 Hex Head Cap Screw, M8x1 Thread Size, Steel, 40mm Lg., 5.3mm Head Ht., Class 8.8
Item: AB8ENTModel: M01070.080.0040Cross Ref: 25DJ51
7 In Stock
Ships within 2 days via
5.00% off
€40.22 /pkg. of 100
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Class 8.8 |
| Drive | Hex |
| Fastener Length | 40 mm |
| Finish | Black Oxide |
| Grade | Non Graded |
| Hardness | Rockwell C22 |
| Head Height | 5.3 mm |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 13 mm |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 40 mm |
| Material | Steel |
| Material Grade/class | Class 8.8 |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Thread Length | 40mm |
| Min. Thread Length | 40 mm |
| Overall Length | 40 mm |
| Rockwell Hardness | Hrc22 |
| System Of Measurement | Metric |
| Tensile Strength | 116000 psi |
| Thread Direction | Right Hand |
| Thread Length | 40 mm |
| Thread Size | M8 x 1 |
| Thread Style | Fully Threaded |
| Thread Type | Fine |
Shipping Info:
| Ship weight (kg) | 1.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 21.01 |
| Ship width (cm) | 16.69 |
| HS code | 7318158066 |
| Country of Origin | TW |
Product Variants
| Product | Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Head Height | Head Width | Thread Direction | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M01060.080.0040 | Partially Threaded | 22 mm | 40 mm | 22 mm | 5.3 mm | 13 mm | Right Hand | Class 8.8 | 100 | €54.41 | |
 |
M01060.080.0050 | Partially Threaded | 22 mm | 50 mm | 22 mm | 5.3 mm | 13 mm | Right Hand | Class 8.8 | 100 | €71.75 | |
 |
M01060.080.0060 | Partially Threaded | 22 mm | 60 mm | 22 mm | 5.3 mm | 13 mm | Right Hand | Class 8.8 | 100 | €140.05 | |
 |
M01060.080.0070 | Partially Threaded | 22 mm | 70 mm | 22 mm | 5.3 mm | 13 mm | Right Hand | Class 8.8 | 100 | €89.54 | |
 |
M01060.080.0080 | Partially Threaded | 22 mm | 80 mm | 22 mm | 5.3 mm | 13 mm | Right Hand | Class 8.8 | 100 | €112.33 | |
 |
M01060.080.0090 | Partially Threaded | 22 mm | 90 mm | 22 mm | 5.3 mm | 13 mm | Right Hand | Class 8.8 | 50 | €64.01 | |
 |
M01070.080.0016 | Fully Threaded | 16 mm | 16 mm | 16 mm | 5.3 mm | 13 mm | Right Hand | Class 8.8 | 100 | €28.50 |
