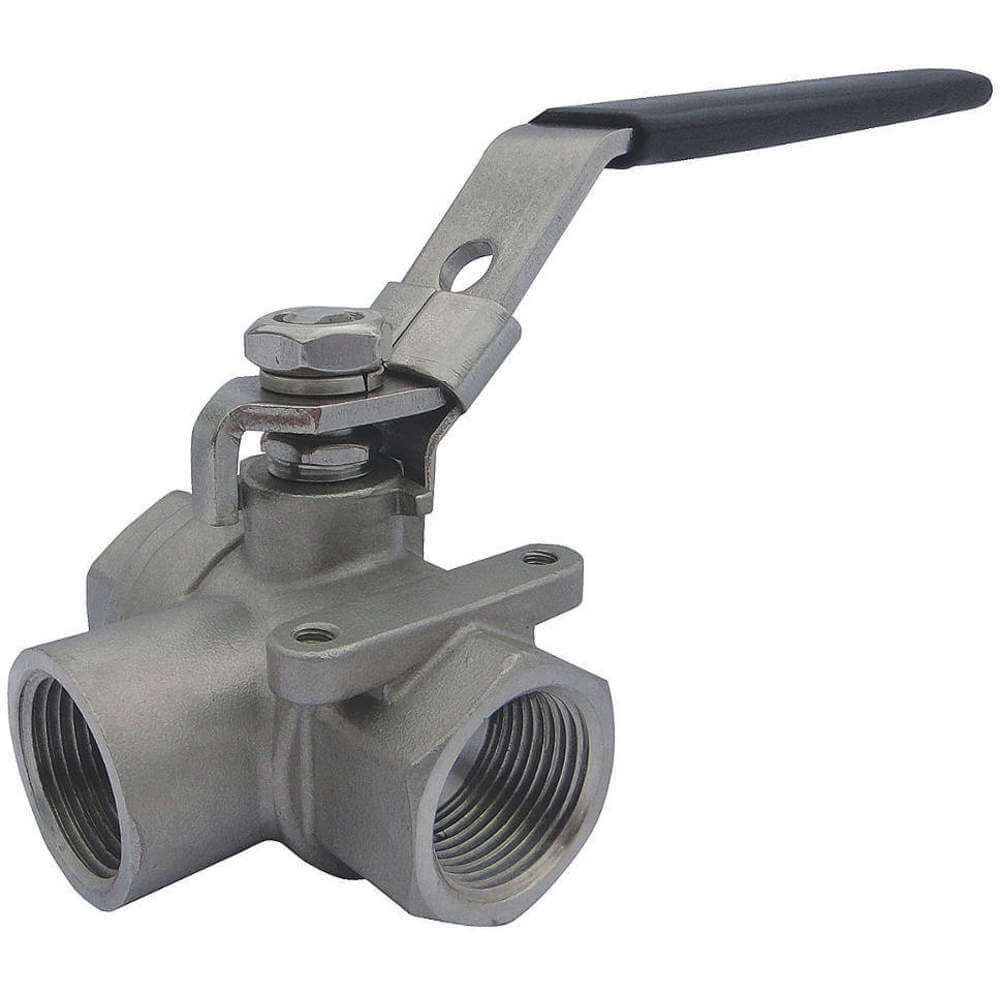

APPROVED VENDOR G-SSTW-75 Stainless Steel Ball Valve Fnpt 3/4 In
Item: AC6AFYModel: G-SSTW-75Cross Ref: 32H989
7 In Stock
Ships within 2 days via
5.00% off
€183.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Ball Material | Stainless Steel |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | 316 Stainless Steel |
| Body Style | Inline |
| Coefficient Of Volume | 30 |
| Connection Type | FNPT x FNPT |
| Flow Pattern | L Flow |
| Handle | Locking Lever |
| Handle Color | Black |
| Handle Material | Grade 304 Stainless Steel |
| Handle Type | Lever Locking |
| Inlet Connection | FNPT |
| Inlet Connection Entry | Side |
| Inlet Connection Size | 3/4" |
| Max. Pressure | 1000 psi WOG |
| Max. Pressure (cwp) | 1000 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Max. Pressure-steam | 150 psi |
| Max. Steam Pressure | 150 psi WSP |
| Media Temp. | -20°F to +450°F |
| No. Of Pieces | 2 |
| Nominal Valve Size | 3/4" |
| Outlet Connection 1 | FNPT |
| Outlet Connection 2 | FNPT |
| Outlet Connection Size-side 1 | 3/4" |
| Outlet Connection Size-side 2 | 3/4" |
| Pipe Size | 3/4" |
| Port | Standard |
| Pressure For Water | 1000 psi WOG |
| Seal Material | RPTFE |
| Seat Material | RPTFE |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. | -20°F to +450°F |
| Vacuum Service Rating | 29.9 in. hg |
| Valve Construction | Two-Piece |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.61 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 15.49 |
| Ship width (cm) | 8.38 |
| HS code | 8481803070 |
| Country of Origin | CN |
Product Variants
| Model | Seat Material | Temp. | Ball Port Style | Nominal Valve Size | Port | Max. Pressure (cwp) | Media Temp. | Handle Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| G-MSFF-25 | PTFE | -40°F to +400°F | Full Port | 1/4" | Full | 1000 psi | -36°F to +368°F | Chrome | €54.76 | |
| G-MSFF-38 | PTFE | -40°F to +400°F | Full Port | 3/8" | Full | 1000 psi | -40°F to +400°F | Chrome | €86.06 | |
| 06Q201N04014 | PTFE | -25°F to +450°F | Full Port | 1/4" | Full | 1000 psi | -25°F to +450°F | Yellow | €41.09 | |
| 06Q201N04038 | PTFE | -25°F to +450°F | Full Port | 3/8" | Full | 1000 psi | -25°F to +450°F | Yellow | €41.49 | |
| 06Q201N04012 | PTFE | -25°F to +450°F | Full Port | 1/2" | Full | 1000 psi | -25°F to +450°F | Yellow | €71.36 | |
| 06Q201N04034 | PTFE | -25°F to +450°F | Full Port | 3/4" | Full | 1000 psi | -25°F to +450°F | Yellow | €71.03 | |
| 06Q201N04010 | PTFE | -25°F to +450°F | Full Port | 1" | Full | 1000 psi | -25°F to +450°F | Yellow | €94.95 |
