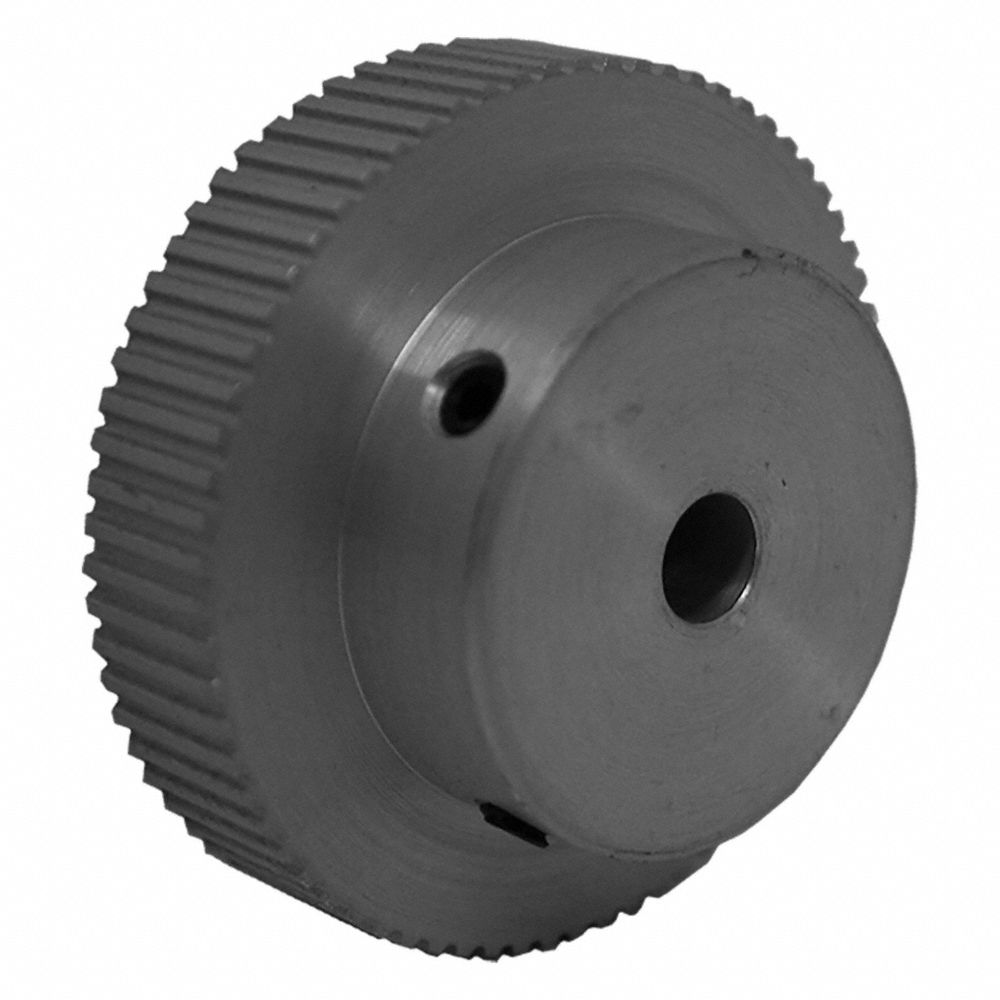

APPROVED VENDOR 72MP0256A3 Timing Belt Pulleys, for MXL Belt, 1/4 Inch Belt Width, 72 Teeth, 1/4 Inch Bore, Fixed
Item: EA3TUCModel: 72MP0256A3Cross Ref: 809VC5
7 In Stock
Ships within 2 days via
5.00% off
€49.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Timing Belt |
| Bore Dia. | 1/4" |
| Bore Type | Finished Bore |
| Face Width | 3/8" |
| Feature | Built For High Torque, Low Speed Applications, Outperforms Industry Standards, Superb Flexibility |
| Finish | Anodized |
| Flange Type | Flangeless |
| For Belt Series | MXL |
| For Belt Trade Size | Mxl |
| For Belt Width | 1/4" |
| For Use With | 1/4" Wide Belts |
| Hub Dia. | 1 3/16" |
| Hub Projection | 3/8" |
| Includes | (2) Set Screws |
| Material | Aluminum |
| No. Of Set Screw | 2 |
| No. Of Teeth | 72 |
| Outside Dia. | 1.813" |
| Pitch Dia. | 1.833" |
| Resistance Properties | Chemical Resistant, Cut Resistant, Oil Resistant, Wear Resistant |
| Thread Pitch | 2/25" |
| Tooth Shape | Trapezoidal |
| Width | 3/4" |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 5.08 |
| Country of Origin | CN |
Product Variants
| Product | Model | Material | Pitch Dia. | Face Width | Bore Dia. | Pitch | Hub Dia. | No. Of Teeth | For Belt Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
17LF075X12 | Steel | 2.029" | 1" | 1/2" | - | 1 7/16" | 17 | 3/4" | €88.35 | |
|
17LF075X34 | Steel | 2.029" | 1" | 3/4" | - | 1 7/16" | 17 | 3/4" | €93.49 | |
|
17LF075X58 | Steel | 2.029" | 1" | 5/8" | - | 1 7/16" | 17 | 3/4" | €93.49 | |
 |
17LF100X12 | Steel | 2.029" | 1 1/4" | 1/2" | - | 1 7/16" | 17 | 1" | €107.44 | |
 |
17LF100X34 | Steel | 2.029" | 1 1/4" | 3/4" | - | 1 7/16" | 17 | 1" | €112.01 | |
|
17LF100X58 | Steel | 2.029" | 1 1/4" | 5/8" | - | 1 7/16" | 17 | 1" | €112.01 | |
 |
60MP0256FA3 | Aluminum | 1.528" | 0.406" | 1/4" | - | 1 7/32" | 60 | 1/4" | €46.67 |
