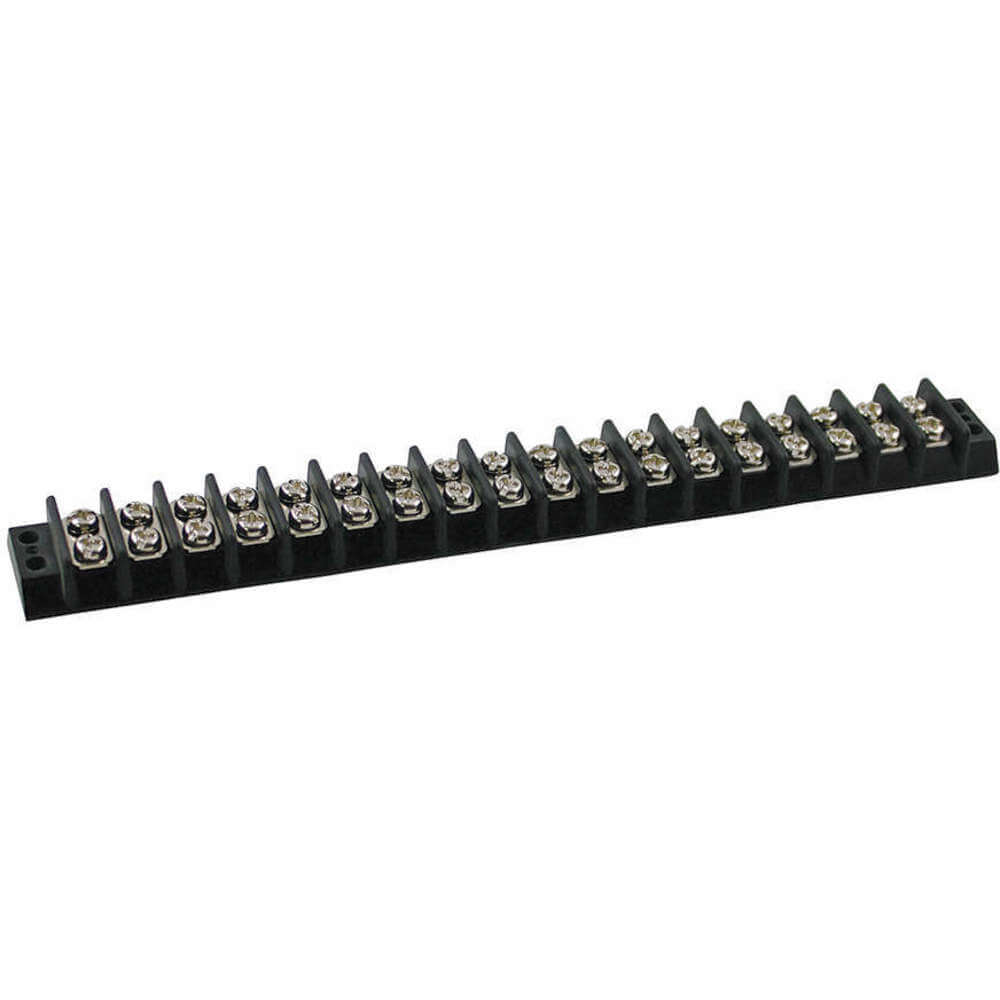

APPROVED VENDOR 6ZEG4 Terminal Strip 18 Pole 15A .375 Spacing

Item: AF2YRHModel: 6ZEG4

7 In Stock

Ships within 2 days via

~~€39.26~~

5.00% off

€37.30 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Terminal Strip
Amps	15A
Center Spacing	3/8"
Center Spacing	3/8 In.
Color	Black
Compatible With Product Type	Power Distribution Blocks
Cover Included	No
Flammability Rating	V-0
For Min. Wire Size	22 AWG
Height	0.47"
Housing Color	Black
Housing Material	Phenolic
Length	7 12/25"
Material	Phenolic
Max. Operating Temp.	266°F
Max. Voltage	300V AC
Max. Wire Size	14 AWG
Min. Operating Temp.	-40°F
Min. Wire Size	22 AWG
Mounting Style	Bolt Down
No. Of Poles	18
No. Of Rows	2
Overall Height	0.45"
Overall Length	7.42"
Overall Width	0.89"
Rohs Compliant	Yes
Screw Type	Phil Slot
Temp.	-40°F to +302°F
Temp. Rating	-40 to 302 F
Terminal Material	Copper
Termination Screw Finish	Nickel Plated
Termination Screw Material	Steel
Termination Screw Size	#6-32
Termination Style	Screw
Torque	9 lbs.-in.
Voltage	300V
Width	0.87"

Model	Amps	No. Of Poles	Housing Material	Height	Max. Wire Size	Voltage	Overall Width	Max. Voltage	Price
6YH63	30A	2	Thermal Plastic	0.83"	10 AWG	600V AC	1.34"	600V AC	€5.45
6YH64	30A	4	Thermal Plastic	0.83"	10 AWG	600V AC	1.34"	600V AC	€10.88
6YH65	30A	6	Thermal Plastic	0.83"	10 AWG	600V AC	1.34"	600V AC	€15.81
6YH66	30A	8	Thermal Plastic	0.83"	10 AWG	600V AC	1.34"	600V AC	€21.78
6YH68	30A	12	Thermal Plastic	0.83"	10 AWG	600V AC	1.34"	600V AC	€32.28
6YH91	60A	6	Thermal Plastic	1.22"	6 AWG	600V AC	2"	600V AC	€34.99
6YH93	60A	12	Thermal Plastic	1.22"	6 AWG	600V AC	2"	600V AC	€68.25
