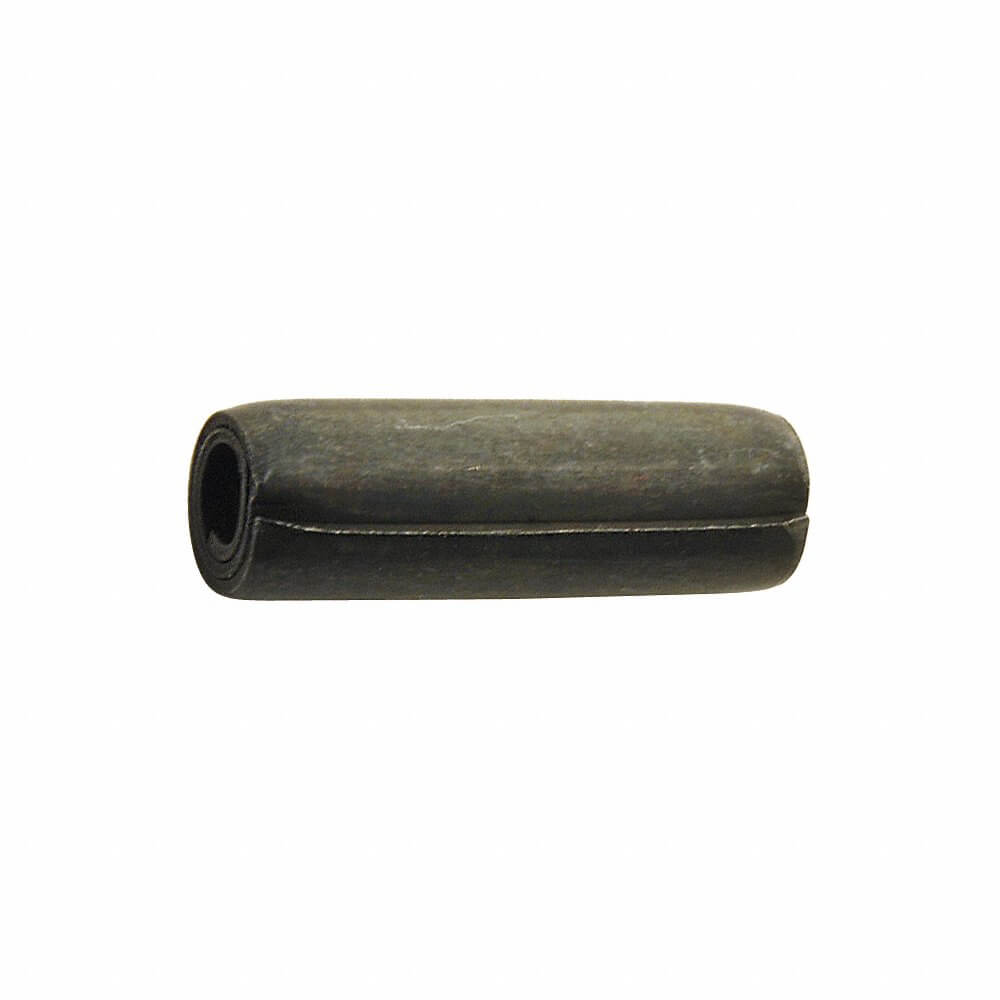

APPROVED VENDOR 5EB90 Spring Pin, 3/8 In Nominal Dia., Steel, 0.388 In To 0.403 In Actual Dia. Rng, 1 In Lg., Pln
Item: AE3MPYModel: 5EB90
7 In Stock
Ships within 2 days via
5.00% off
€26.86 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spring Pin |
| Actual Dia. Range | 0.388" to 0.403" |
| Chamfer Dia. | 0.3659" , 0.366" |
| Chamfer Length Reference | 0.095" |
| Double Shear Strength | 12600 lbs. |
| End Type | Chamfered |
| Finish | Plain |
| Fits Hole Dia. | 0.37" to 0.383" |
| Fits Max. Hole Dia. | 25/64" |
| Fits Min. Hole Dia. | 3/8" |
| Grade | Grade UNS G10700 And UNS G10740 |
| Hardness | Rockwell C43-C52 |
| Length | 1" |
| Length Tolerance | -0.01" to +0.01" |
| Material | Steel |
| Material Grade/class | Grade 1070, Grade 1074 |
| Max. Chamfer Length | 0.095" |
| Nominal Dia. | 3/8" |
| Pin Dia. | 3/8" |
| Pin Length Tolerance | -0.01" to +0.01" |
| Pin Type | Coiled |
| Rockwell Hardness | Rc43-52 |
| Shank Length | 1" |
| Standards | Asme B18.8.2 |
| System Of Measurement | Imperial |
| Type | Coiled |
| Usable Length | 1" |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| HS code | 7318290000 |
| Country of Origin | US |
Product Variants
| Model | Chamfer Dia. | Max. Chamfer Length | Min. Chamfer Length | Double Shear Strength | Chamfer Length Reference | Fits Hole Dia. | Length Tolerance | Fits Max. Hole Dia. | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5EA62 | 0.059" | 0.028" | - | 330 lbs. | 0.028" | 0.061" to 0.065" | -0.01" to +0.01" | 1/16" | 100 | €14.13 | |
| 5EA66 | 0.059" | 0.028" | - | 330 lbs. | 0.028" | 0.061" to 0.065" | -0.01" to +0.01" | 1/16" | 100 | €13.65 | |
| 5EA68 | 0.059" | 0.028" | - | 330 lbs. | 0.028" | 0.061" to 0.065" | -0.01" to +0.01" | 1/16" | 100 | €12.25 | |
| 5EA80 | 0.075" | 0.032" | - | 550 lbs. | 0.032" | 0.077" to 0.081" | -0.01" to +0.01" | 5/64" | 100 | €17.51 | |
| 5EA82 | 0.091" | 0.038" | - | 775 lbs. | 0.038" | 0.093" to 0.097" | -0.01" to +0.01" | 3/32" | 100 | €12.98 | |
| 5EA94 | 0.091" | 0.038" | - | 775 lbs. | 0.038" | 0.093" to 0.097" | -0.01" to +0.01" | 3/32" | 100 | €25.34 | |
| 5EA96 | 0.121" | 0.044" | - | 1400 lbs. | 0.044" | 0.124" to 0.129" | -0.01" to +0.01" | 1/8" | 100 | €18.92 |
