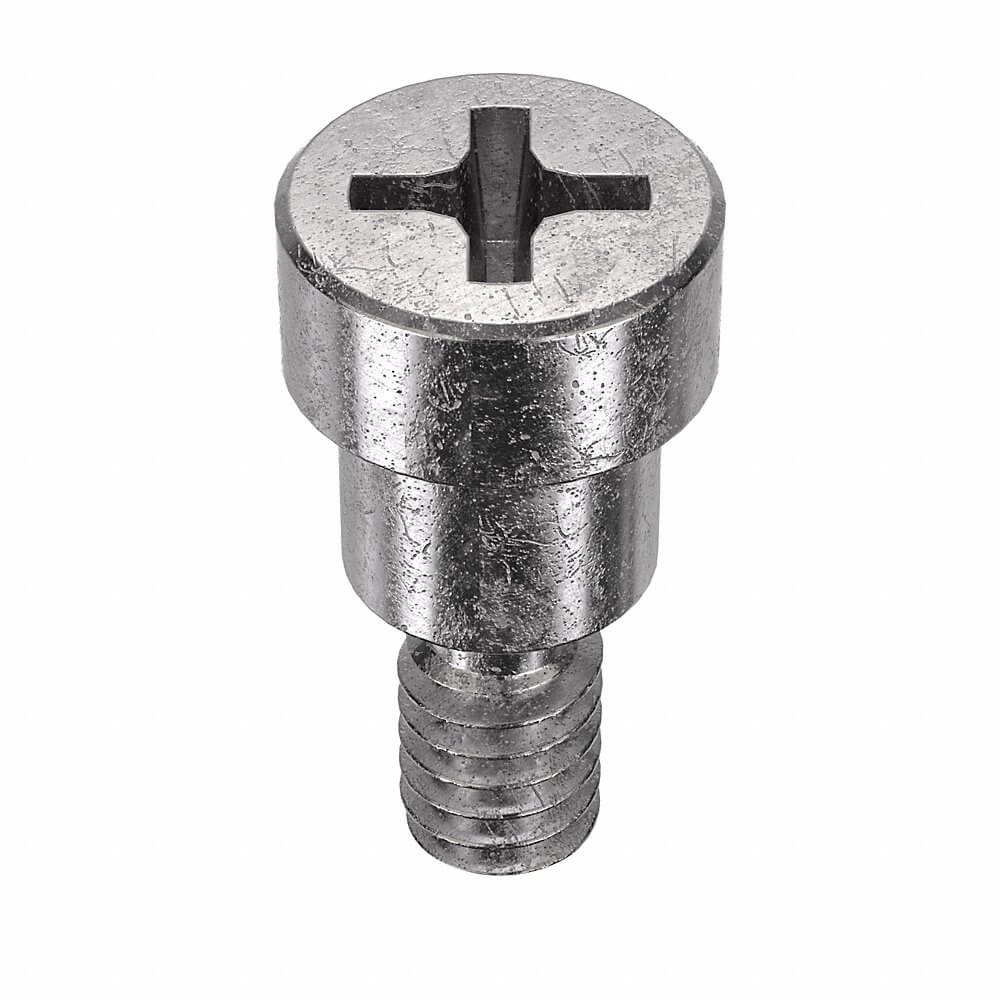

APPROVED VENDOR 4743 Shoulder Screw, 1/4 In - 20 Thread Size, 5/16 In Shoulder Lg., 7/32 In Head Ht., Precision, 116000 psi Min. TS
Item: AE9JMBModel: 4743Cross Ref: 6KA35
7 In Stock
Ships within 2 days via
10.00% off
€51.94 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Shoulder Screw |
| Class | Class 2A |
| Dimensional Standards | ASME/ANSI B18.3.3 |
| Display Qty | 5 |
| Drive Size | #3 |
| Drive Type | Phillips |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Rockwell B95-B100 |
| Head Dia. | 1/2" |
| Head Height | 7/32" |
| Head Type | Standard |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Min. Tensile Strength | 116000 psi |
| Precision Screw | Yes |
| Rockwell Hardness | B95 to B100 |
| Shoulder Dia. | 3/8" |
| Shoulder Diameter Tolerance | 0.0015" to 0" |
| Shoulder Length | 5/16" |
| Shoulder Length Tolerance | 0" to 0.002" |
| System Of Measurement | Imperial |
| Tensile Strength | 116000 psi |
| Thread Fit | 2A |
| Thread Length | 7/16" |
| Thread Size | 1/4"-20 |
| Type | Precision Shoulder Screw |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 3.81 |
| HS code | 7318158082 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Shoulder Length | Shoulder Dia. | Thread Length | Shoulder Length Tolerance | Head Dia. | Head Height | Drive Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4710 | #4-40 | 1/8" | 1/8" | 5/32" | 0" to 0.002" | 1/4" | 1/8" | #1 | 10 | €42.83 | |
|
4711 | #4-40 | 3/16" | 1/8" | 5/32" | 0" to 0.002" | 1/4" | 1/8" | #1 | 10 | €44.74 | |
|
4712 | #4-40 | 1/4" | 1/8" | 5/32" | 0" to 0.002" | 1/4" | 1/8" | #1 | 10 | €45.01 | |
 |
4713 | #4-40 | 5/16" | 1/8" | 5/32" | +0.002" | 1/4" | 1/8" | #1 | 10 | €50.42 | |
|
4714 | #4-40 | 3/8" | 1/8" | 5/32" | +0.002" | 1/4" | 1/8" | #1 | 10 | €52.34 | |
 |
4761 | #6-32 | 1/8" | 5/32" | 3/16" | 0" to 0.002" | 9/32" | 1/8" | 3/32" | 10 | €52.28 | |
 |
4762 | #6-32 | 3/16" | 5/32" | 3/16" | 0" to 0.002" | 9/32" | 1/8" | 3/32" | 10 | €50.26 |
