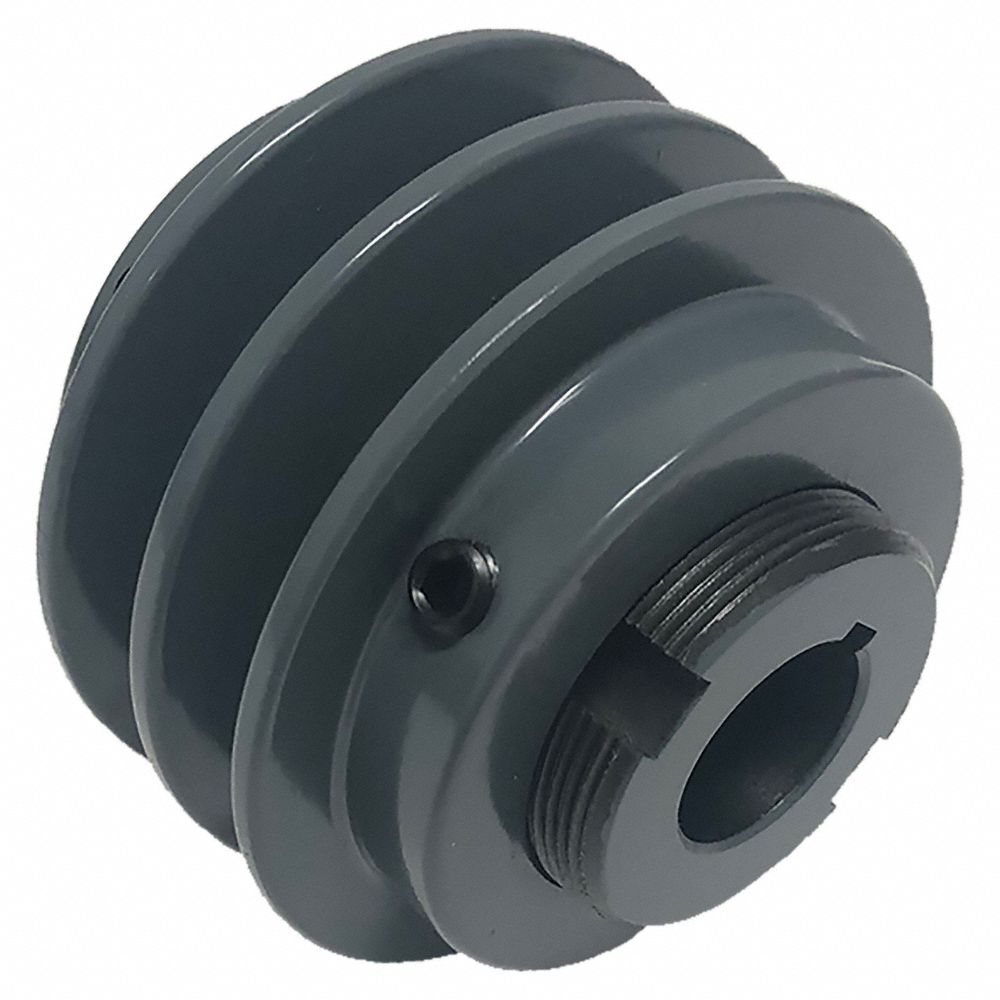

APPROVED VENDOR 2VP36X34 Variable Pitch V-Belt Pulley, 7.5 Inch Outside Dia
Item: EA4DCEModel: 2VP36X34Cross Ref: 812Z53
7 In Stock
Ships within 2 days via
5.00% off
€101.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Variable Pitch V-Belt Pulley |
| Bore Dia. | 3/4" |
| For Belt Section | 3L, 4L, 5L, A, AX, B, BX |
| For V Belt Type | Classical, Wedge, Cogged, Banded |
| Keyway | Yes |
| Keyway Depth | 3/32" |
| Keyway Width | 3/16" |
| Length Through Bore | 3" |
| Material | Cast Iron |
| Material Fabrication | Cast |
| Max. 3l Pitch Dia. | 2.7" |
| Max. 4l Pitch Dia. | 3" |
| Max. 5l Pitch Dia. | 3.3" |
| Max. A Pitch Dia. | 3" |
| Max. Ax Pitch Dia. | 3" |
| Max. B Pitch Dia. | 3.3" |
| Max. Bx Pitch Dia. | 3.3" |
| Max. Face Width | 2" |
| Min. 3l Pitch Dia. | 1.9" |
| Min. 4l Pitch Dia. | 2" |
| Min. 5l Pitch Dia. | 2 1/2" |
| Min. A Pitch Dia. | 2" |
| Min. Ax Pitch Dia. | 2" |
| Min. B Pitch Dia. | 2 1/2" |
| Min. Bx Pitch Dia. | 2 1/2" |
| Min. Face Width | 1 3/8" |
| No. Of Grooves | 2 |
| No. Of Turns To 3l Fully Open | 4 |
| No. Of Turns To 4l Fully Open | 5 |
| No. Of Turns To 5l Fully Open | 5 |
| No. Of Turns To A Fully Open | 5 |
| No. Of Turns To B Fully Open | 5 |
| Outside Dia. | 3.35" |
| Pulley Construction | Plain |
| Pulley Industry No. | 2VP36 |
| Pulley Series | Vp Series |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 1.63 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 9.65 |
| Ship width (cm) | 9.4 |
| Country of Origin | US |
Product Variants
| Model | Bore Dia. | No. Of Grooves | Length Through Bore | Min. Face Width | Max. Face Width | Keyway | Pulley Series | Min. Ax Pitch Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1VP25X12 | 1/2" | 1 | 1 1/2" | 0.563" | 0.813" | No | Vp Series | - | €41.48 | |
| 1VP25X58 | 5/8" | 1 | 1 1/2" | 0.563" | 0.813" | Yes | Vp Series | - | €41.48 | |
| 1VP30X12 | 1/2" | 1 | 1 21/32" | 0.563" | 0.813" | No | Vp Series | - | €43.56 | |
| 1VP30X58 | 5/8" | 1 | 1 21/32" | 0.563" | 0.813" | Yes | Vp Series | - | €43.56 | |
| 1VP34X12 | 1/2" | 1 | 1 7/8" | 0.688" | 1" | No | Vp Series | 1.9" | €48.74 | |
| 1VP34X34 | 3/4" | 1 | 1 7/8" | 0.688" | 1" | Yes | Vp Series | 1.9" | €48.74 | |
| 1VP34X58 | 5/8" | 1 | 1 7/8" | 0.688" | 1" | Yes | Vp Series | 1.9" | €48.74 |
