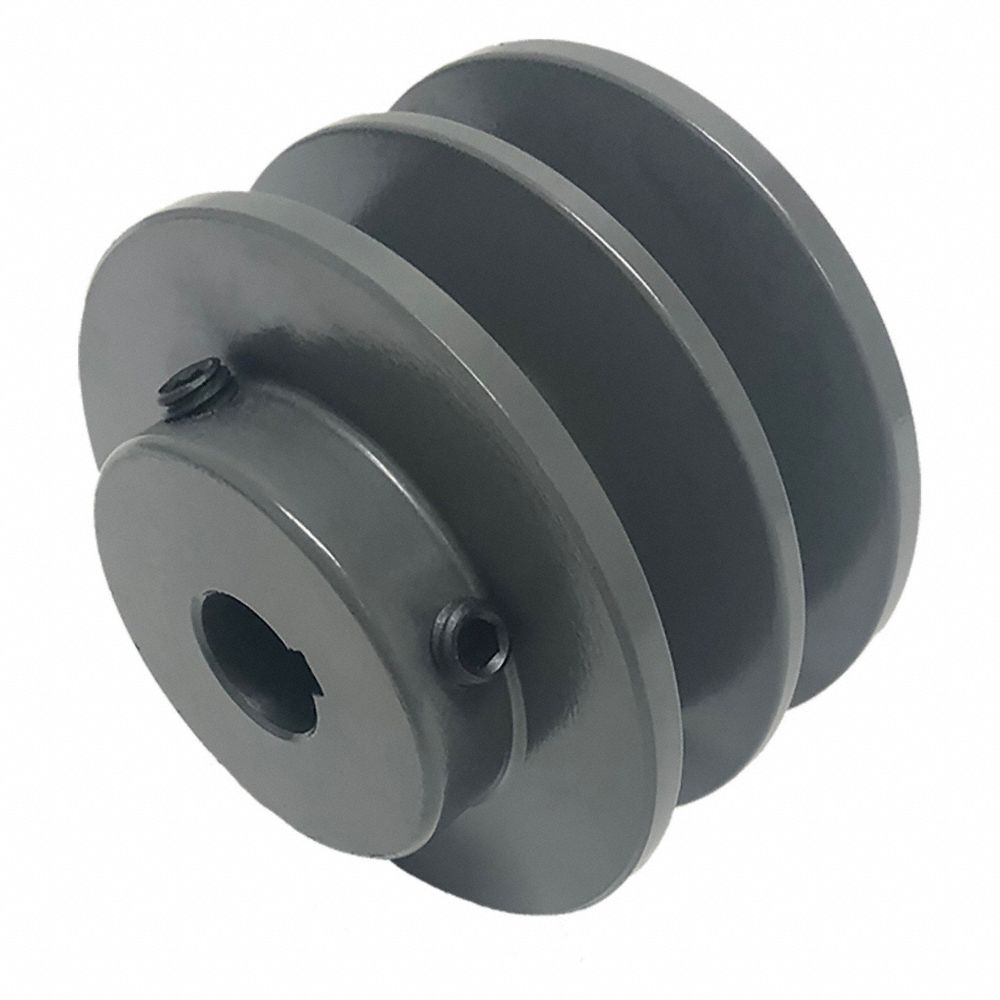

APPROVED VENDOR 2AK39X118 V-Belt Pulley, 3.75 Inch Outer Dia, Cast Iron
Item: EA4ENLModel: 2AK39X118Cross Ref: 813D29
7 In Stock
Ships within 2 days via
5.00% off
€78.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | V-Belt Pulley |
| 3l Pitch Dia. | 3 4/25" |
| 4l Pitch Dia. | 3 1/2" |
| Ax Pitch Dia. | 3 1/2" |
| Bore Dia. | 1 1/8" |
| Bore Type | Fixed |
| Face Width | 1.38" |
| For Belt Section | 3L, 4L, A, AX |
| For V Belt Type | Classical, Cogged |
| Hub Dia. | 2 1/8" |
| Hub Projection | 0.469" |
| Hub Type | One Side |
| Includes | Set Screw |
| Keyway | Yes |
| Keyway Depth | 1/8" |
| Keyway Width | 1/4" |
| Length Through Bore | 1 11/32" |
| Material | Cast Iron |
| Material Fabrication | Cast |
| No. Of Grooves | 2 |
| No. Of Set Screw | 1 |
| Outside Dia. | 3 3/4" |
| Pitch Dia. | 3 1/2" |
| Pulley Construction | Webbed |
| Pulley Industry No. | 2AK39 |
| Pulley Series | Ak Series |
| Width | 1 7/8" |
Shipping Info:
| Ship weight (kg) | 1.13 |
| Ship height (cm) | 5.59 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 10.16 |
| Country of Origin | CN |
Product Variants
| Model | Bore Dia. | Pitch Dia. | Face Width | 4l Pitch Dia. | No. Of Grooves | Pulley Series | Hub Dia. | Length Through Bore | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2BK130X1716 | 1 7/16" | 12" | 1 3/4" | 12" | 2 | Bk Series | 2 7/8" | 1 19/32" | €290.70 | |
| 2BK140X1 | 1" | 13" | 1 3/4" | 13" | 2 | Bk Series | 2 7/8" | 1 19/32" | €310.85 | |
| 2BK140X1316 | 1 3/16" | 13" | 1 3/4" | 13" | 2 | Bk Series | 2 7/8" | 1 19/32" | €310.85 | |
| 2BK140X1716 | 1 7/16" | 13" | 1 3/4" | 13" | 2 | Bk Series | 2 7/8" | 1 19/32" | €310.85 | |
| 2BK160X1316 | 1 3/16" | 15" | 1 3/4" | 15" | 2 | Bk Series | 2 7/8" | 1 19/32" | €374.09 | |
| 2BK160X1716 | 1 7/16" | 15" | 1 3/4" | 15" | 2 | Bk Series | 2 7/8" | 1 19/32" | €374.09 | |
| 2BK190X1316 | 1 3/16" | 18" | 1 3/4" | 18" | 2 | Bk Series | 2 7/8" | 1 19/32" | €441.27 |
