APPROVED VENDOR 24C451 Industrial Thermowell 316 Stainless Steel 1-1/4-18
Item: AB7UZJModel: 24C451
7 In Stock
Ships within 2 days via
10.00% off
€120.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Industrial Thermowell |
| Application | General Purpose, Sealed Systems |
| Bore Dia. | 11/25" |
| Construction | 316 Stainless Steel |
| Food Safe | No |
| For Stem Diameter | 15/32" |
| For Stem Length | 6" |
| For Thermometer Thread Connection Size | 1 1/4"-18 |
| For Thermometer Thread Connection Type | UNEF |
| For Thermometer Thread Size | 1 1/4" |
| For Thermometer Thread Type | UNEF |
| Grade | Grade 316 |
| Includes Cap And Chain | No |
| Includes Lagging | No |
| Insert Length | 5" |
| Insertion Length | 6" |
| Insertion Length | 5" |
| Material | Stainless Steel |
| Maximum Operating Pressure | 10000 psi @ 60°F |
| Maximum Operating Temperature | 200°F at 600 psi, 400°F at 570 psi, 600°F at 500 psi, 70°F at 650 psi |
| Neck Extension | 1 3/4" |
| Nsf Rated | No |
| Process Connection | 3/4" MNPT |
| Process Connection Size | 3/4" |
| Shank Dia. | 0.62" |
| Shank Type | Stepped |
| Socket Length | 6 1/2" |
| Socket Length | 6.5" |
| Stem Length | 6" |
| Thermowell Type | Threaded |
| Thread Gender | Male |
| Thread Size | 3/4" |
| Thread Type | NPT |
| Wrench Allowance | 1/2" |
| Wrench Allowance | 0.5" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 4.06 |
| Ship length (cm) | 18.54 |
| Ship width (cm) | 4.06 |
| HS code | 9025900000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Process Connection Size | Stem Length | Insert Length | Material | Neck Extension | Construction | Wrench Allowance | For Stem Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

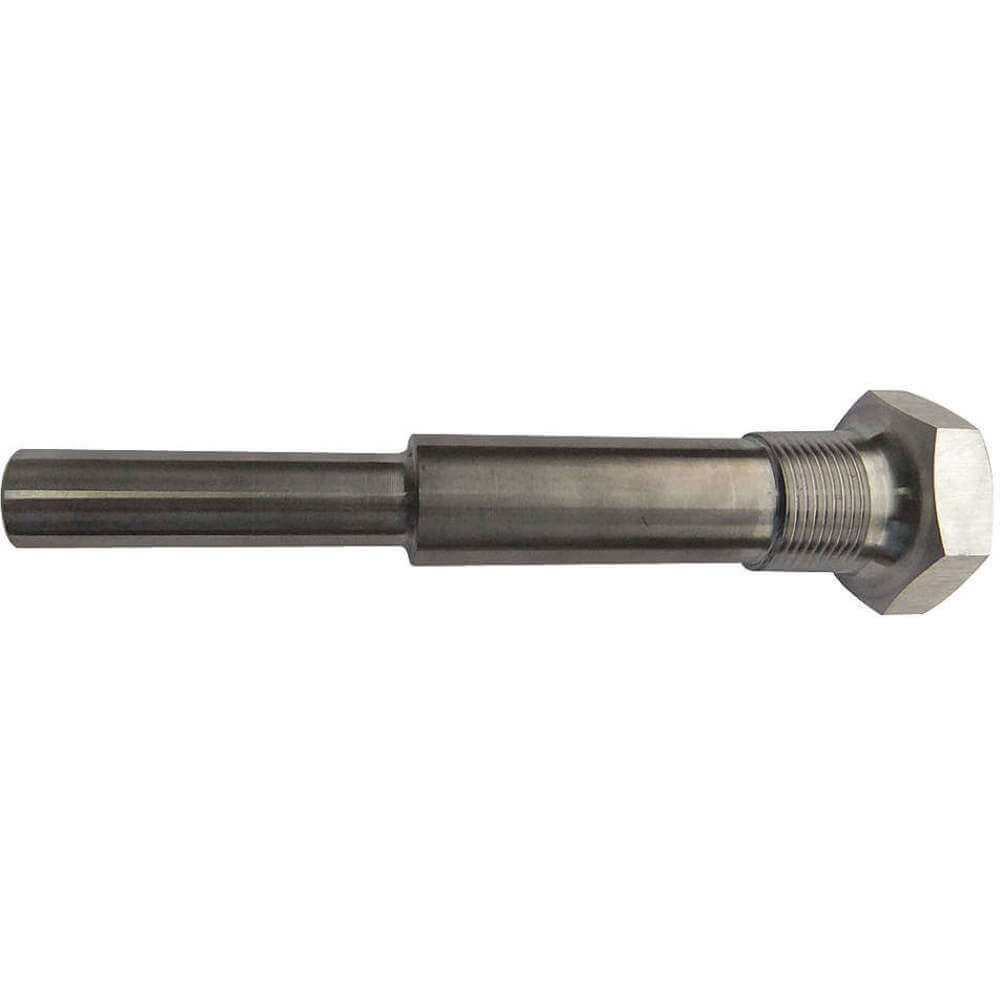

24C450 | 3/4" | 4" | 2 1/2" | Stainless Steel | 1 3/4" | 316 Stainless Steel | 1/2" | 15/32" | €81.68 | |
|
24C454 | 1" | 18" | 17" | Stainless Steel | 1 3/4" | 316 Stainless Steel | 1/2" | 15/32" | €324.79 | |
 |

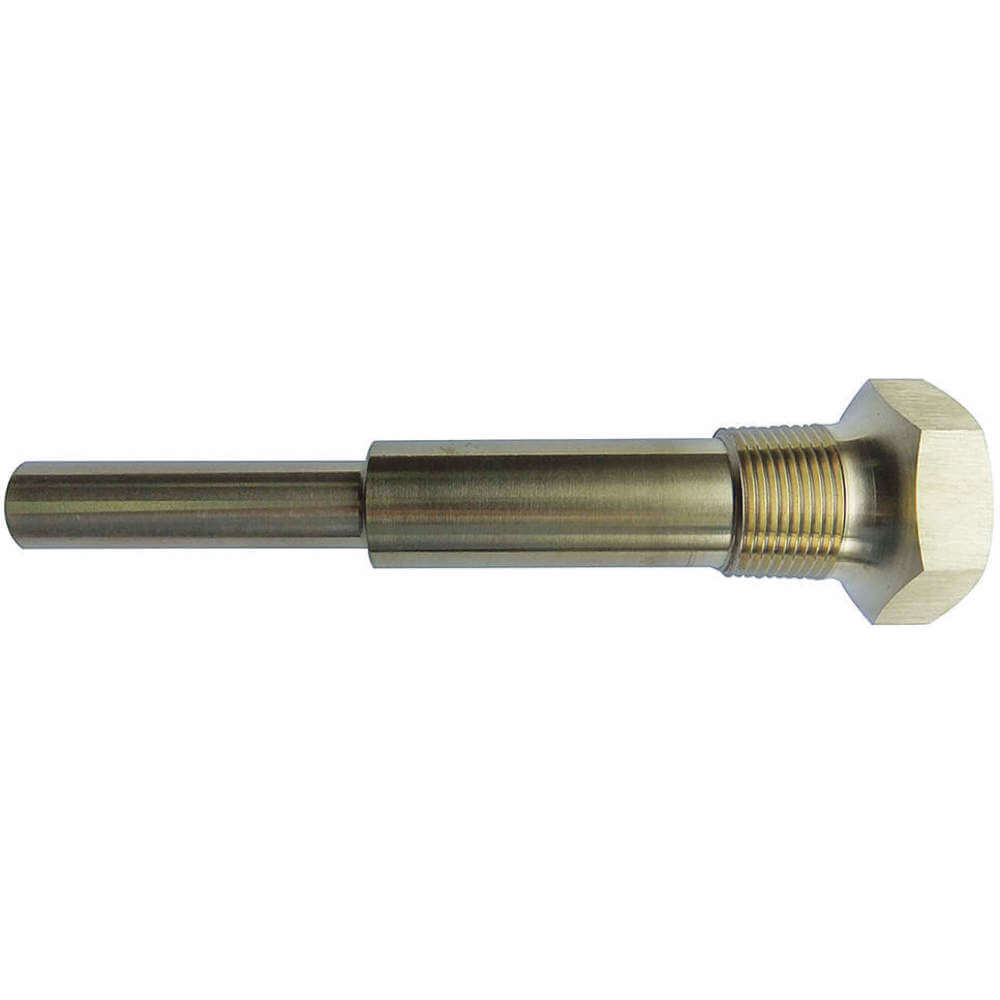

24C455 | 3/4" | 4" | 2 1/2" | Brass | - | Brass | 1/2" | - | €27.52 | |
|
24C456 | 3/4" | 6" | 5" | Brass | 1 3/4" | Brass | 1/2" | 15/32" | €52.43 | |
 |

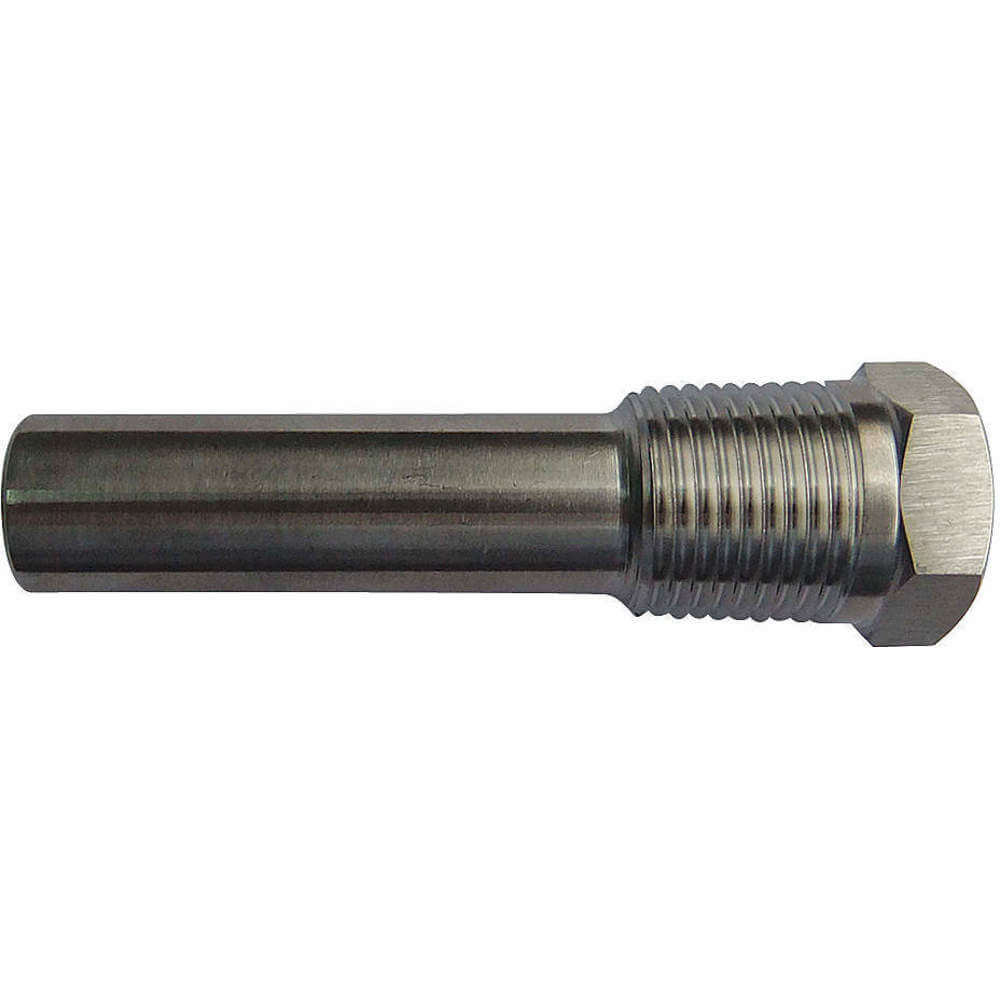

24C479 | 1/2" | 3" | 2.13" | Stainless Steel | 1 1/16" | 316 Stainless Steel | 0.31" | 29/64" | €76.30 | |
 |

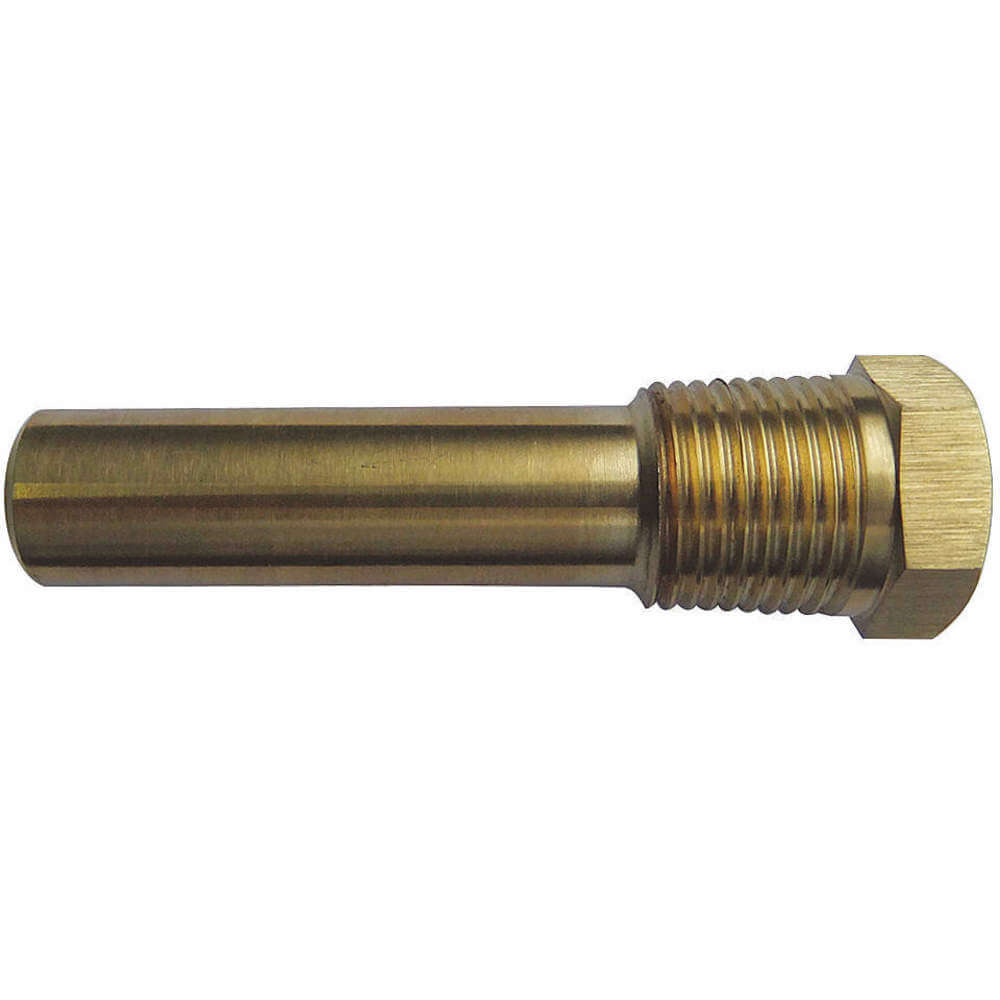

24C480 | 1/2" | 3" | 2.13" | Brass | 1 1/16" | Brass | 0.31" | 29/64" | €17.66 | |
|
24C508 | 3/4" | 6" | 5" | Stainless Steel | 1 3/4" | 304 Stainless Steel | 1/2" | 15/32" | €81.22 |
