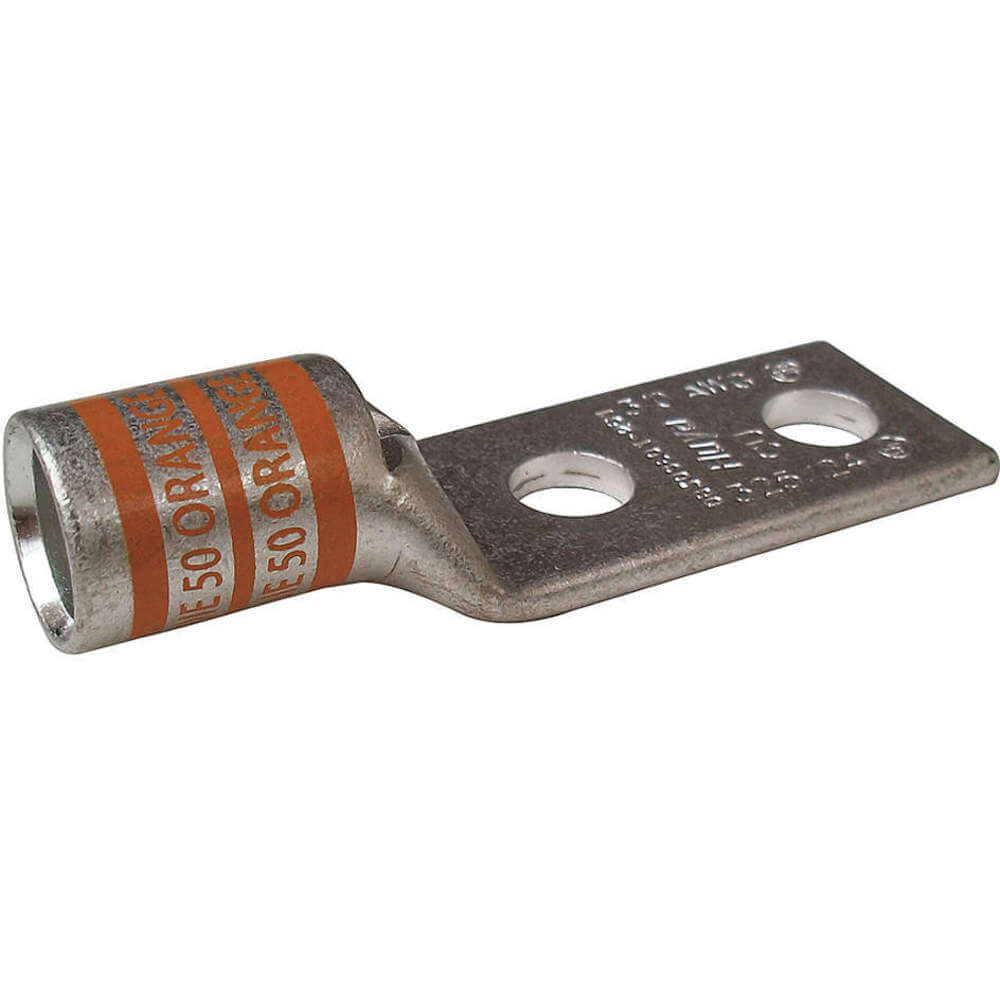

APPROVED VENDOR 24C430 Lug 3/0 Awg 50 Die Orange
Item: AB7UYLModel: 24C430
7 In Stock
Ships within 2 days via
10.00% off
€10.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Lug |
| Barrel Id | 0.51" |
| Barrel Length | Short |
| Barrel Od | 0.63" |
| Barrel Size | Short |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Color Code | Orange |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Current | 310A |
| Die Code | 50 |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Minimum | 3/0 AWG |
| For Wire Size | 3/0 AWG |
| For Wire Type | Stranded |
| Hole Center To Center | 1" |
| Hole Center To End | 0.33" |
| Hole Size | 0.335" |
| Hole To Hole Center | 1" |
| Hole To Hole Center (in.) | 1.00 |
| Inspection Hole | Yes |
| Length | 2.77" |
| Material | Copper |
| Maximum Operating Temperature | 300°F |
| Maximum Voltage | 600V AC |
| Maximum Wire Size | 3/0 AWG |
| Number Of Holes | 2 |
| Overall Length | 2.77" |
| Overall Width | 0.94" |
| Peep Hole | Yes |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Special Features | Corrosion Resistant, High-Conductivity Construction |
| Strip Length | 13/16" |
| Stud Size | 5/16" |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 1.75" |
| Tongue Style | Standard |
| Tongue Thickness | 0.13" |
| Tongue Width | 0.94" |
| Type | Standard |
| Width | 0.94" |
Shipping Info:
| Ship height (cm) | 1.52 |
| Ship length (cm) | 6.6 |
| Ship width (cm) | 2.03 |
| HS code | 8535908020 |
| Country of Origin | CN |
Product Variants
| Product | Model | Color Code | Stud Size | Cable Size | Peep Hole | Hole Center To End | Number Of Holes | Overall Length | Strip Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24C312 | Red | #10 | - | No | 1/4" | 1 | 1.6" | 13/16" | €3.50 | |
 |
24C313 | Blue | #10 | - | No | 1/4" | 1 | 1.65" | 7/8" | €3.70 | |
 |
24C314 | Gray | #10 | - | No | 1/4" | 1 | 1.7" | 7/8" | €4.75 | |
 |
24C315 | Brown | #10 | - | No | 1/4" | 1 | 1.8" | 1" | €5.45 | |
 |
24C316 | Green | #10 | - | No | 1/4" | 1 | 1.78" | 15/16" | €5.91 | |
 |
24C317 | Pink | #10 | - | No | 1/4" | 1 | 1.98" | 1 1/8" | €7.22 | |
|
24C318 | Red | 1/4" | - | No | 1/4" | 1 | 1.57" | 13/16" | €3.50 |
