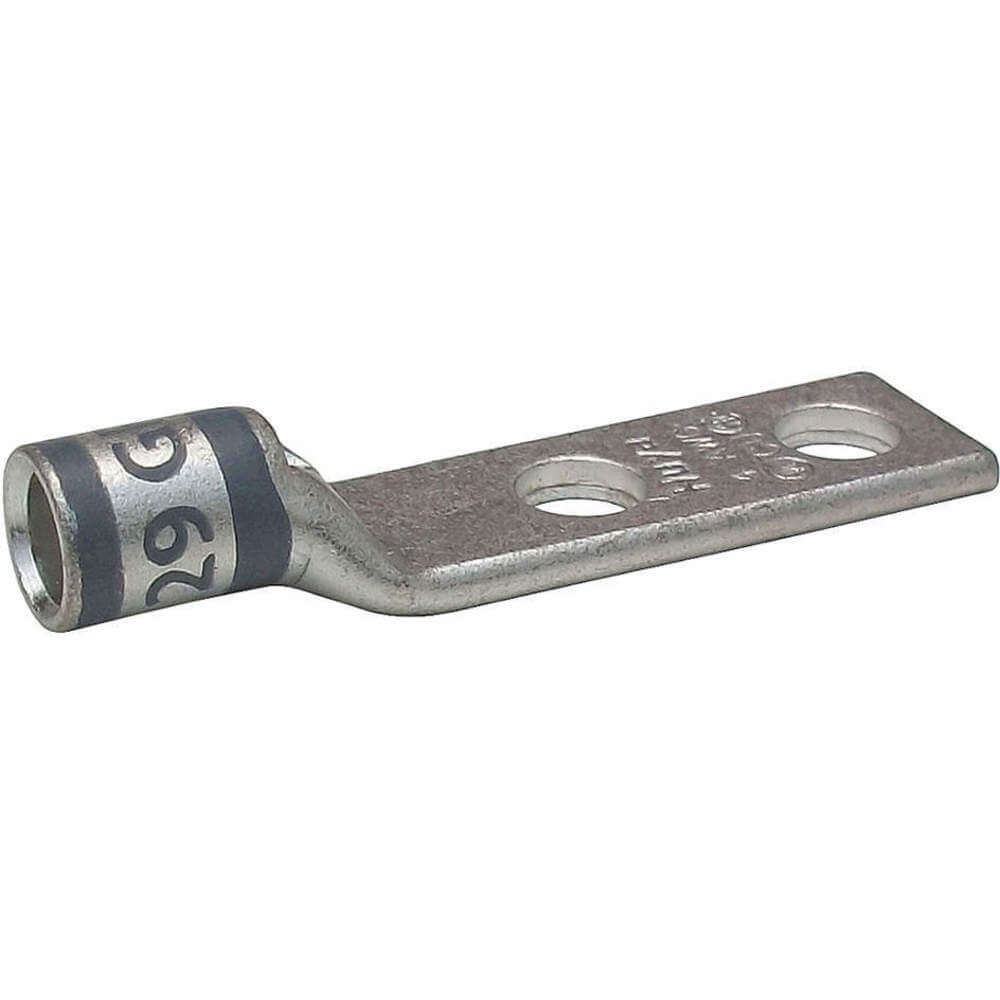

APPROVED VENDOR 24C420 Lug 4 Awg 29 Die Gray
Item: AB7UYAModel: 24C420
7 In Stock
Ships within 2 days via
5.00% off
€5.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Lug |
| Amps | 125A |
| Barrel Inside Dia. | 0.27" |
| Barrel Length | Short |
| Barrel Outside Dia. | 0.37" |
| Barrel Size | Short |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Color Code | Gray |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 29 |
| For Conductor Material | Copper |
| For Wire Size | 4 AWG |
| For Wire Type | Stranded |
| Hole Center To Center | 5/8" |
| Hole Center To End | 1/4" |
| Hole Size | 0.27" |
| Hole To Hole Center | 0.63" |
| Hole To Hole Center (in.) | 0.63 |
| Inspection Hole | Yes |
| Length | 2.03" |
| Material | Copper |
| Max. Operating Temp. | 300°F |
| Max. Voltage | 600V AC |
| Max. Wire Size | 4 AWG |
| Min. For Stranded Copper Wire Size | 4 AWG |
| No. Of Holes | 2 |
| Overall Length | 2.03" |
| Overall Width | 13/25" |
| Peep Hole | Yes |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Strip Length | 9/16" |
| Stud Size | 1/4" |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 1.28" |
| Tongue Style | Standard |
| Tongue Thickness | 0.1" |
| Tongue Width | 0.52" |
| Type | Standard |
| Width | 13/25" |
Shipping Info:
| Ship height (cm) | 1.27 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 5.08 |
| HS code | 8535908020 |
| Country of Origin | CN |
Product Variants
| Product | Model | Color Code | No. Of Holes | Strip Length | Stud Size | Cable Size | Die Code | Peep Hole | Hole Center To End | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24C312 | Red | 1 | 13/16" | #10 | - | 21 | No | 1/4" | €3.69 | |
 |
24C313 | Blue | 1 | 7/8" | #10 | - | 24 | No | 1/4" | €3.87 | |
 |
24C314 | Gray | 1 | 7/8" | #10 | - | 29 | No | 1/4" | €4.66 | |
 |
24C315 | Brown | 1 | 1" | #10 | - | 33 | No | 1/4" | €5.64 | |
 |
24C316 | Green | 1 | 15/16" | #10 | - | 37 | No | 1/4" | €6.18 | |
 |
24C317 | Pink | 1 | 1 1/8" | #10 | - | 42 | No | 1/4" | €7.48 | |
|
24C318 | Red | 1 | 13/16" | 1/4" | - | 21 | No | 1/4" | €3.65 |
