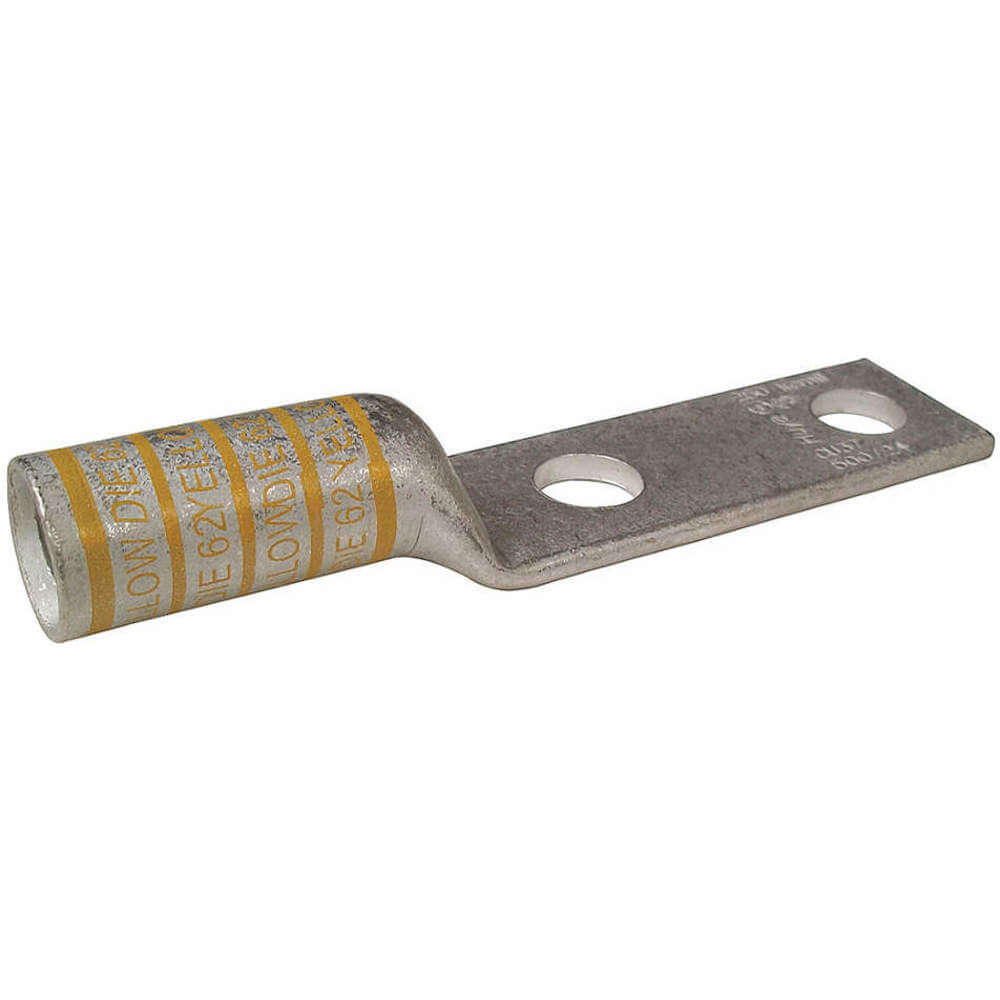

APPROVED VENDOR 24C411 Lug 250kcmil 62 Die Yellow
Item: AB7UXQModel: 24C411
7 In Stock
Ships within 2 days via
10.00% off
€21.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Lug |
| Barrel Id | 0.63" |
| Barrel Od | 0.77" |
| Barrel Size | Long |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Cable Size | 250 kcmil |
| Cable Size Code | 250 kcmil |
| Color Code | Yellow |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Current | 405A |
| Die Code | 62 |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Minimum | 250 kcmil |
| For Wire Size | 250 kcmil |
| For Wire Type | Stranded |
| Hole Center To Center | 1 3/4" |
| Hole Center To End | 1/2" |
| Hole Size | 0.53" |
| Hole To Hole Center | 1.75" |
| Hole To Hole Center (in.) | 1.75 |
| Inspection Hole | No |
| Length | 4.95" |
| Material | Copper |
| Maximum Operating Temperature | 300°F |
| Maximum Voltage | 600V AC |
| Maximum Wire Size | 250 kcmil |
| Number Of Holes | 2 |
| Overall Length | 4.95" |
| Overall Width | 1.13" |
| Peep Hole | No |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Special Features | Corrosion Resistant, High-Conductivity Construction |
| Strip Length | 1 11/16" |
| Stud Size | 1/2" |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Length | 3" |
| Tongue Style | Standard |
| Tongue Thickness | 0.14" |
| Tongue Width | 1.13" |
| Type | Standard |
| Width | 1.13" |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 3.05 |
| HS code | 8535908020 |
| Country of Origin | CN |
Product Variants
| Product | Model | Color Code | Stud Size | Cable Size | Peep Hole | Hole Center To End | Number Of Holes | Overall Length | Strip Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24C312 | Red | #10 | - | No | 1/4" | 1 | 1.6" | 13/16" | €3.50 | |
 |
24C313 | Blue | #10 | - | No | 1/4" | 1 | 1.65" | 7/8" | €3.70 | |
 |
24C314 | Gray | #10 | - | No | 1/4" | 1 | 1.7" | 7/8" | €4.75 | |
 |
24C315 | Brown | #10 | - | No | 1/4" | 1 | 1.8" | 1" | €5.45 | |
 |
24C316 | Green | #10 | - | No | 1/4" | 1 | 1.78" | 15/16" | €5.91 | |
 |
24C317 | Pink | #10 | - | No | 1/4" | 1 | 1.98" | 1 1/8" | €7.22 | |
|
24C318 | Red | 1/4" | - | No | 1/4" | 1 | 1.57" | 13/16" | €3.50 |
