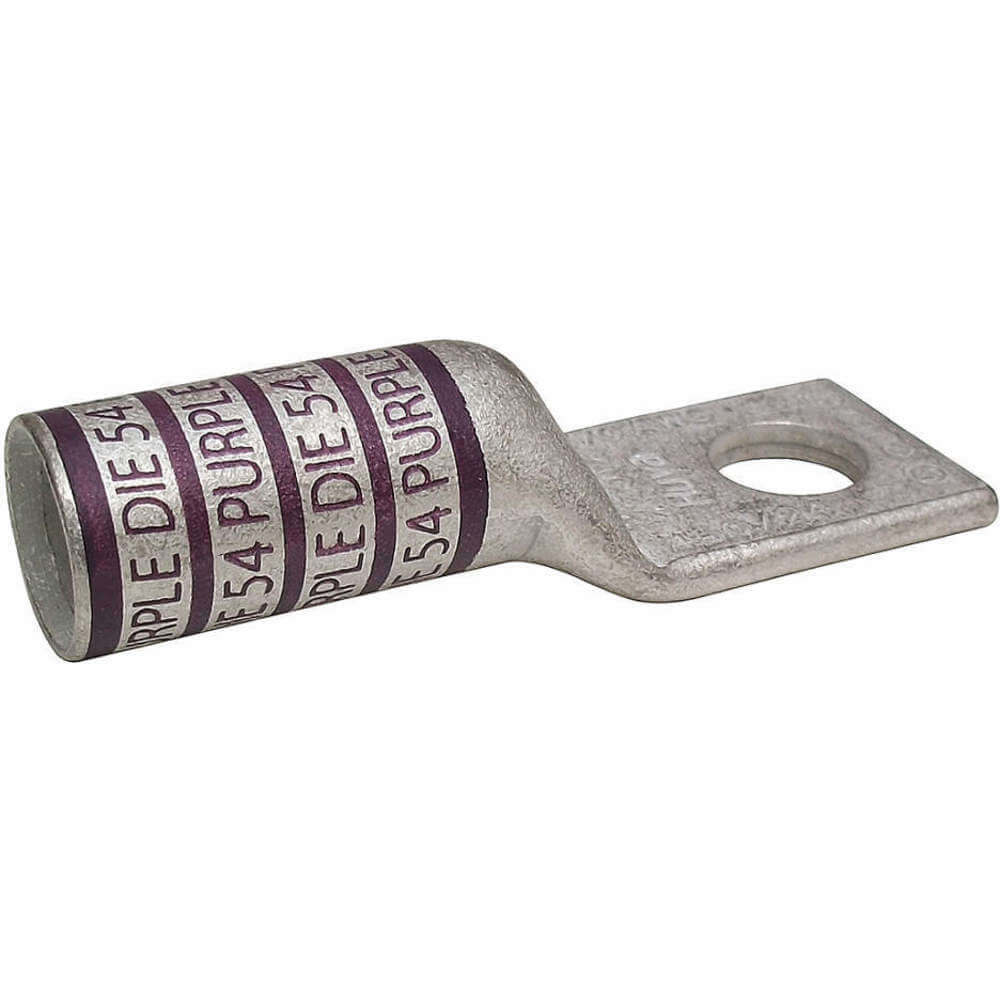

APPROVED VENDOR 24C321 Lug 4/0 Awg 54 Die Purple
Item: AB7UTUModel: 24C321
7 In Stock
Ships within 2 days via
5.00% off
€10.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Lug |
| Barrel Id | 0.56" |
| Barrel Od | 0.7" |
| Barrel Size | Long |
| Barrel Style | Chamfered |
| Body Material | Copper |
| Color Code | Purple |
| Connection Orientation | Straight |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Current | 360A |
| Die Code | 54 |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size - Minimum | 4/0 AWG |
| For Wire Type | Stranded |
| Hole Center To End | 1/4" |
| Hole Size | 0.27" |
| Inspection Hole | No |
| Length | 2.37" |
| Material | Copper |
| Maximum Operating Temperature | 300°F |
| Maximum Voltage | 600V AC |
| Maximum Wire Size | 4/0 AWG |
| Number Of Holes | 1 |
| Overall Length | 2.37" |
| Overall Width | 1.03" |
| Peep Hole | No |
| Rohs Compliant | Yes |
| Seam Style | Seamless |
| Special Features | Corrosion Resistant, High-Conductivity Construction |
| Strip Length | 1 1/2" |
| Stud Size | 1/4" |
| Termination Style | Crimp |
| Tongue Length | 0.65" |
| Tongue Style | Standard |
| Tongue Thickness | 0.14" |
| Tongue Width | 1.03" |
| Type | Standard |
| Width | 1.03" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.03 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 5.08 |
| HS code | 8535908020 |
| Country of Origin | CN |
Product Variants
| Product | Model | Color Code | Stud Size | Cable Size | Peep Hole | Hole Center To End | Number Of Holes | Overall Length | Strip Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
24C312 | Red | #10 | - | No | 1/4" | 1 | 1.6" | 13/16" | €3.45 | |
 |
24C313 | Blue | #10 | - | No | 1/4" | 1 | 1.65" | 7/8" | €3.61 | |
 |
24C314 | Gray | #10 | - | No | 1/4" | 1 | 1.7" | 7/8" | €4.36 | |
 |
24C315 | Brown | #10 | - | No | 1/4" | 1 | 1.8" | 1" | €5.27 | |
 |
24C316 | Green | #10 | - | No | 1/4" | 1 | 1.78" | 15/16" | €5.77 | |
 |
24C317 | Pink | #10 | - | No | 1/4" | 1 | 1.98" | 1 1/8" | €6.98 | |
|
24C318 | Red | 1/4" | - | No | 1/4" | 1 | 1.57" | 13/16" | €3.41 |
