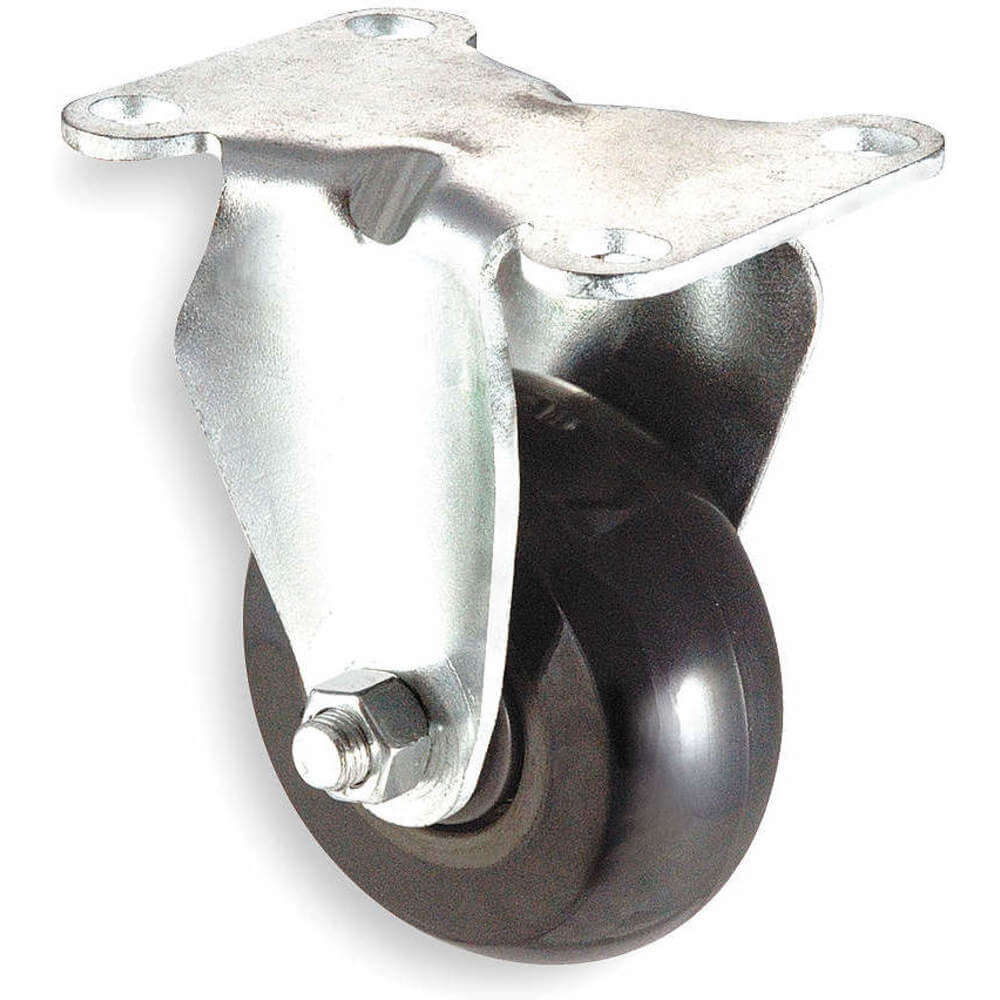

APPROVED VENDOR 1UKA4 Rigid Plate Caster 300 Lb 3 Inch Diameter
Get it by Tuesday, Aug 25
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€14.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rigid Plate Caster |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating | 300 lbs. to 999 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Rigid Caster |
| Caster Sub-type | Rigid |
| Caster Type | Rigid |
| Caster Wheel Material | Polyurethane |
| Caster Wheel Shape | Standard |
| Core Color | Gray |
| Core Material | Polyolefin |
| Durometer | 95 Shore A |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | C |
| Included Thread Guards | Yes |
| Inside Bolt Hole Spacing | 1 3/4" x 2 13/16" |
| Load Rating | 250 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 5/16" |
| Mounting Height | 4 1/4" |
| Mounting Plate Bolt Hole Pattern | C |
| Mounting Plate Size | 2 1/2" x 3 5/8" |
| Mounting Plate Size & Bolt Hole Pattern | 2 1/2" X 3 5/8" ( C ) |
| No. Of Mounting Holes | 4 |
| No. Of Wheels | 1 |
| Non-marking | Yes |
| Number Of Wheels | 1 |
| Outside Bolt Hole Spacing | 1 3/4" x 3 1/16" |
| Overall Height | 4 1/4" |
| Plate Size | 2 1/2" x 3 5/8" |
| Plate Thickness | 0.119" |
| Plate Type | C |
| Swivel Construction | Kingpinless |
| Swivel Lock Type | No Lock Included |
| Tread Shape | Standard |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Precision Ball |
| Wheel Color | Gray |
| Wheel Core Material | Plastic |
| Wheel Dia. | 3" |
| Wheel Material | Polyurethane |
| Wheel Width | 1 1/4" |
| Wheel/tread Color | Gray |
| Wheel/tread Hardness | 95 Shore A , Firm |
| Wheel/tread Material | Polyurethane |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 9.14 |
| Ship width (cm) | 6.35 |
| HS code | 8716903000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel Dia. | Wheel Bearing Type | Caster Brake Type | Mounting Height | Mounting Plate Bolt Hole Pattern | Mounting Plate Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1G092 | 1 3/4" x 2 5/8" | 1 3/4" x 3" | 3 1/2" | Precision Ball | No Brake Included | 4 5/8" | C | 2 3/4" x 3 3/4" | - | RFQ
|
 |
1G098 | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | 3 1/2" | Precision Ball | No Brake Included | 4 5/8" | C | 2 1/2" x 3 5/8" | €21.24 | |
|
1G099 | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | 4" | Precision Ball | No Brake Included | 5 1/8" | C | 2 1/2" x 3 5/8" | €22.45 | |
|
1G100 | 1 3/4" x 2 13/16" | 1 3/4" x 3 1/16" | 5" | Precision Ball | No Brake Included | 6 3/16" | C | 2 1/2" x 3 5/8" | €32.01 | |
 |
1G193 | 1 3/4" x 3" | 1 3/4" x 3" | 3" | Delrin | No Brake Included | 3 3/4" | D | 2 3/8" x 3 5/8" | €16.06 | |
|
1G194 | 1 3/4" x 3" | 1 3/4" x 3" | 4" | Delrin | No Brake Included | 4 11/16" | D | 2 3/8" x 3 5/8" | €23.28 | |
|
1G195 | 1 3/4" x 3" | 1 3/4" x 3" | 5" | Plain Bore | - | - | - | - | €13.80 |
