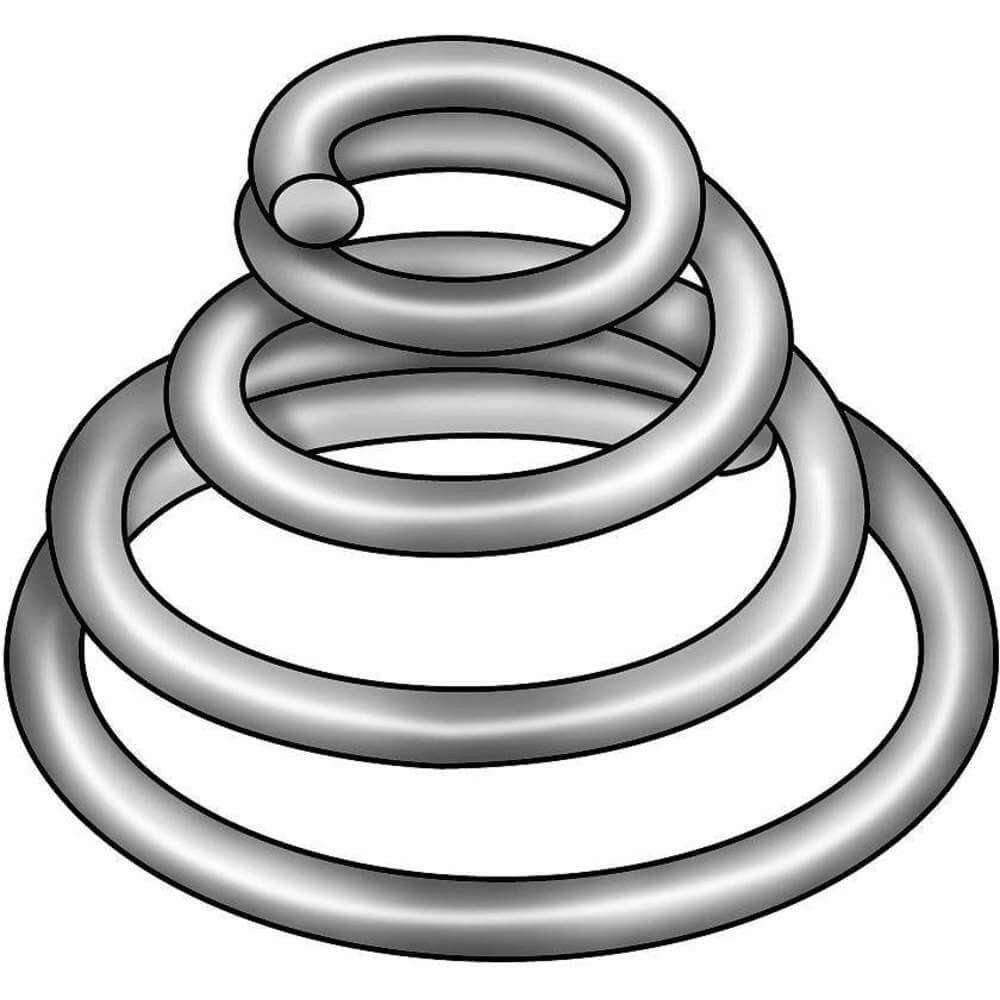

APPROVED VENDOR 1NDE2 Compression Spring, 23.19 lbs/In Stiffness Rate, 6.75 lbs Load Capacity, Stainless Steel
Item: AB2QKZModel: 1NDE2
7 In Stock
Ships within 2 days via
10.00% off
€3.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Compression Spring |
| End Type | Closed, Not Grounded |
| Finish | Plain |
| Free Length | 0.375" |
| Grade | Grade 302 |
| Inner Dia. | 0.18" to 0.21" |
| Large Outside Dia. | 0.600" |
| Load @ 50% Free Length | 4.35 lbs. |
| Load @ 50% Free Length (lbs.) | 4.35 |
| Load @ Solid (lbs.) | 6.75 |
| Load Capacity | 6.75 lbs. |
| Material | Stainless Steel |
| Max. Inside Diameter | 0.21" |
| Max. Outside Diameter | 0.6" |
| Min. Inside Diameter | 0.18" |
| Min. Outside Diameter | 7/25" |
| Number Of Coils (turns) | 2 |
| Operating Temp. Range | Not Rated |
| Outer Dia. | 0.28" to 0.6" |
| Product Type | Compression Spring |
| Small Outside Dia. | 0.281" |
| Solid Height | 0.11" |
| Solid Length | 0.11" |
| Spring Rate | 23.19 lbs.-in. |
| Spring Rate (stiffness) | 23.19 lbs./in. |
| Spring Shape | Conical |
| Standards | Astm A313 |
| System Of Measurement | Imperial |
| Total Active Coils | 2 |
| Type | Conical |
| Wire Dia. | 0.04" |
| Wire Type | Round |
Shipping Info:
| Ship height (cm) | 2.79 |
| Ship length (cm) | 2.79 |
| Ship width (cm) | 2.79 |
| HS code | 7320201000 |
| Country of Origin | US |
Product Variants
| Model | Material | Outer Dia. | Wire Dia. | Spring Rate (stiffness) | End Type | Type | Free Length | Load Capacity | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1NBV1 | Steel | 0.25" | 0.03" | 9.58 lbs./in. | Closed, Not Grounded | Utility | 1" | Not Rated | 12 | €7.23 | |
| 1NBV2 | Steel | 0.31" | 0.03" | 5.8 lbs./in. | Closed, Not Grounded | Utility | 1" | Not Rated | 12 | €7.91 | |
| 1NBV3 | Steel | 0.31" | 0.03" | 13.58 lbs./in. | Closed, Not Grounded | Utility | 1" | Not Rated | 12 | €8.48 | |
| 1NBV4 | Steel | 0.19" | 0.02" | 5.09 lbs./in. | Closed, Not Grounded | Utility | 1.25" | Not Rated | 12 | €6.47 | |
| 1NBV5 | Steel | 0.38" | 0.03" | 5.22 lbs./in. | Closed, Not Grounded | Utility | 1.25" | Not Rated | 12 | €16.08 | |
| 1NBV6 | Steel | 0.31" | 0.03" | 8.75 lbs./in. | Closed, Not Grounded | Utility | 1.5" | Not Rated | 12 | €18.50 | |
| 1NBV7 | Steel | 0.375" | 0.048" | 20.33 lbs./in. | Closed, Not Ground | Utility | 1.5" | Not Rated | 12 | €10.11 |
