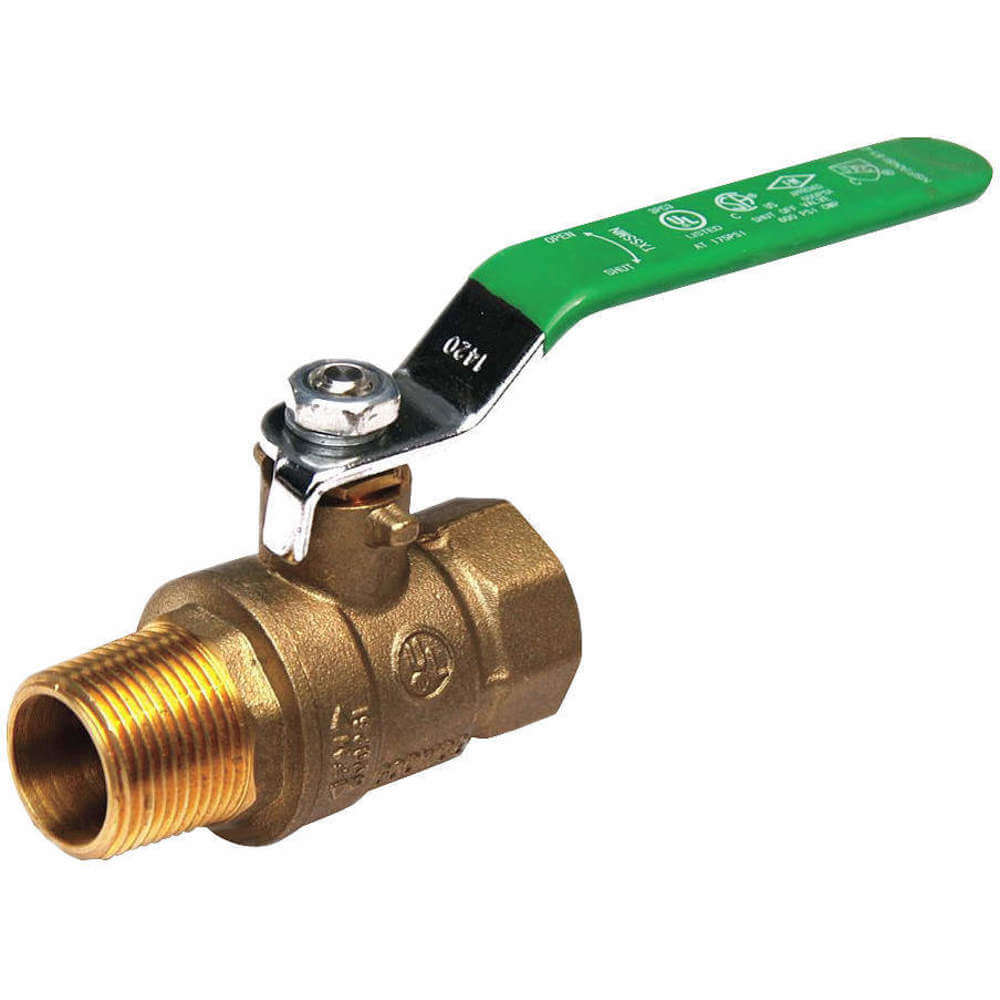

APPROVED VENDOR 107-323NL Ball Valve Low Lead Brass Fnpt x Mnpt 1/2 In
Item: AC6AHAModel: 107-323NLCross Ref: 32J015
7 In Stock
Ships within 2 days via
5.00% off
€26.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Ball Material | Stainless Steel |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | Brass |
| Body Style | Inline |
| Coefficient Of Volume(cv) | 13.349 |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Male |
| Connection Size | 1/2" x 1/2" |
| Connection Size-side 1 | 1/2" |
| Connection Size-side 2 | 1/2" |
| Connection Type | FNPT x MNPT |
| Connection Type-side 1 | IPS |
| Connection Type-side 2 | IPS |
| For Media | Combustible Gases, Steam, Water |
| Grade | 304 |
| Handle | Lever |
| Handle Color | Red |
| Handle Material | PVC, Steel |
| Handle Type | Lever |
| Max. Pressure | 600 psi |
| Max. Pressure (cwp) | 600 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Max. Pressure-steam | 600 psi |
| Max. Steam Pressure | 150 psi WSP |
| Media Temp. | -20°F to +300°F |
| No. Of Pieces | 2 |
| Nominal Valve Size | 1/2" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Overall Length | 4.84" |
| Pipe Size | 1/2" |
| Port | Full |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Temp. | 0°F to +365°F |
| Vacuum Service Rating | -29.92 in. hg |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | 7700MF Series |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.21 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 22.35 |
| Ship width (cm) | 14.22 |
| HS code | 8481801050 |
| Country of Origin | IT |
Product Variants
| Model | Ball Port Style | Nominal Valve Size | Handle Material | Connection Size-side 2 | Connection Size-side 1 | Coefficient Of Volume(cv) | Ball Material | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 107-324NL | Standard Port | 3/4" | PVC, Steel | 3/4" | 3/4" | 21.417 | Stainless Steel | 600 psi | €44.08 | |
| 107-325NL | Standard Port | 1" | PVC, Steel | 1" | 1" | 37.08 | Stainless Steel | 600 psi | €63.80 | |
| 107-327NL | Standard Port | 1 1/2" | PVC, Steel | 1 1/2" | 1 1/2" | 94.924 | Stainless Steel | 600 psi | €125.32 | |
| 107-328NL | Full Port | 2" | Steel | 2" | 2" | 144.194 | Stainless Steel | 600 psi | €226.09 |
