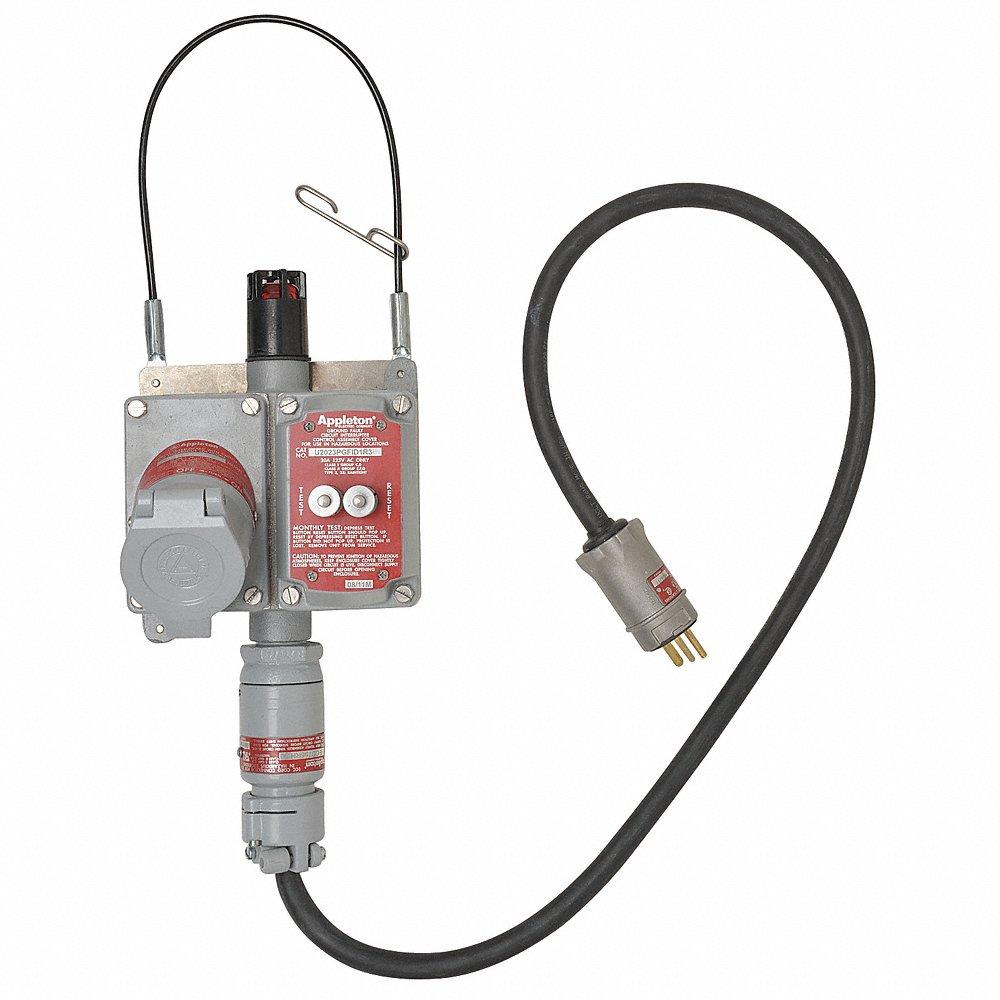

APPLETON ELECTRIC U2023PGFID1G3 Portable GFCI Receptacle, 20 A, 125/250V AC, 1 hp, Dead End/Feed Through
Item: AA3YBLModel: U2023PGFID1G3Cross Ref: 11Y446
7 In Stock
Ships within 2 days via
10.00% off
€6,801.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Contact Material | Copper |
| Current Rating | 20A |
| Features | Ecp Plug Fits Any Standard Non-Explosionproof Receptacle (Nema 5-20R, Or 6-20R) As Well As U-Line Explosionproof Receptacles, Energized Receptacle Contacts Deeply Recessed, U-Line Efsr-K Receptacle Covers Are Ul Classified When Used With Killark Swb Series Mounting Boxes |
| Finish | Baked Epoxy Clad |
| For Maximum Cable Diameter | 0.639" |
| For Minimum Cable Diameter | 0.538" |
| Gfci | Yes |
| Hazardous Location Specification | Class I, Div 1, Group B, C, D, Class I, Div 2, Group B, C, D, Class Ii, Div 1 And 2, Group F, G, Class Iii, Div 1 And 2 |
| Horsepower Rating | 1 hp |
| Housing Material | Malleable Iron |
| Housing Material Finish | Chromate Finish, Epoxy Coat With Powder Finish, Zinc Electroplated |
| Includes Mounting Hardware | Yes |
| Insulation Material | Glass Filled Reinforced Polyester |
| Material | Copper Free Aluminum |
| Mounting Box | Copperfree Aluminium |
| Mounting Box Entry | Dead End, Feed Through |
| Nema Enclosure Rating | NEMA 3, NEMA 3R |
| Nema Rating | 3, 3R, 7CD, 9FG |
| Number Of Poles | 3 |
| Number Of Wires | 2 |
| Power Indicating Light | Yes |
| Product Datasheet | appleton-electric-u2023pgfid1g3.pdf |
| Voltage | 125V AC |
| Voltage Rating | 125/250V AC |
Shipping Info:
| Ship weight (kg) | 3.99 |
| Ship height (cm) | 18.54 |
| Ship length (cm) | 45.21 |
| Ship width (cm) | 27.43 |
| HS code | 8536308000 |
| Country of Origin | MX |
