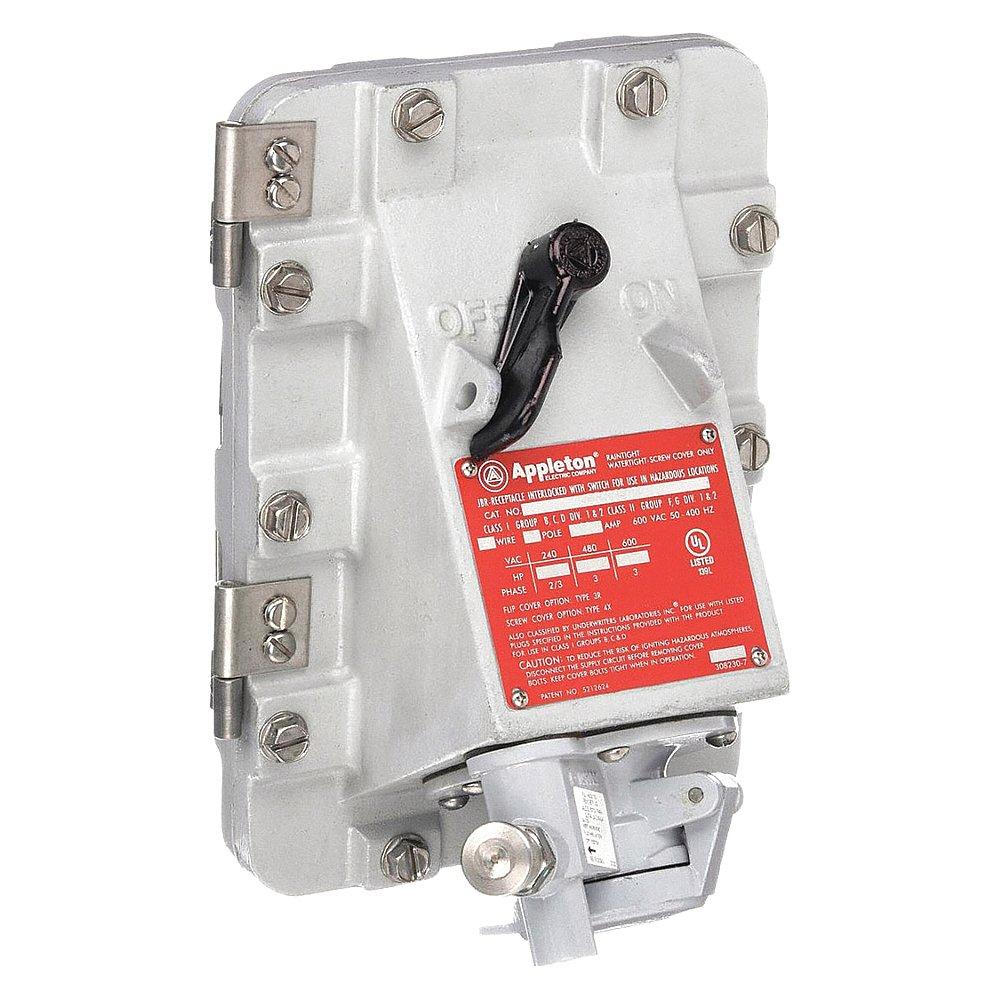

APPLETON ELECTRIC JBR3023-150 Receptacle, Non-Fused, 30 A, 240/480/600V AC, 20 hp
Get it by Thursday, Dec 18
10.00% off
€4,308.34 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Receptacle |
| Amps | 30A |
| Circuit Breaker | No |
| Circuit Breaker Type | Not Applicable |
| Compatible With Series | Powertite |
| Current Rating | 30A |
| Disconnect Switch | Yes |
| Enclosure Lock Type | Not Applicable |
| For Maximum Cable Dia. | Not Applicable |
| For Minimum Cable Diameter | Not Applicable |
| Frequency | 50-400 Hz |
| Fuse Protection | Non-Fused |
| Fuse Type | Not Applicable |
| Grounding | Grounded |
| Hazardous Location Specification | Class I, Div 1 And 2, Group B, C, D, Class Ii, Div 1 And 2, Group F, G, Class Iii, Div 1 And 2 |
| Horsepower Rating | 20 hp |
| Housing Material | Copper Free Aluminum |
| Housing Material Type | Metallic |
| Hub Dia. | 1 1/2" |
| Hub Diameter | 1 1/2" |
| Hub Size | 1 1/2" |
| Hub Type | Feed Through |
| Includes Mounting Hardware | Yes |
| Locking Handle | No |
| Material | Copper Free Aluminum |
| Maximum Wire Size | Not Applicable |
| Mounting Box | Copperfree Aluminum |
| Mounting Box | Copperfree Aluminium |
| Nema Enclosure Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 7BCD, NEMA 9FG |
| Number Of Gangs | 1 |
| Number Of Poles | 3 |
| Number Of Wires | 2 |
| Overall Depth | 10 7/25" |
| Overall Height | 11 3/4" |
| Product Datasheet | appleton-electric-jbr3023-150.pdf |
| Voltage | 600V AC |
| Voltage Rating | 240/480/600V AC |
Shipping Info:
| Ship weight (kg) | 10.55 |
| Ship height (cm) | 33.78 |
| Ship length (cm) | 49.02 |
| Ship width (cm) | 35.81 |
| HS code | 8537109070 |
| Country of Origin | MX |
Documentation:
Product Variants
| Model | Number Of Wires | Number Of Poles | Voltage | Amps | Current Rating | Phase | Hp | Hub Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| DBR3034HFB50 | 3 | 4 | 600V AC | - | 30A | Three | - | - | €11,602.17 | |
| DBR6023EH100 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €10,090.47 | |
| DBR6023EH50 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €9,494.66 | |
| DBR6023EH70 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €10,090.47 | |
| DBR6023EH90 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €10,090.45 | |
| DBR6023FB100 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €10,491.74 | |
| DBR6023FB50 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €9,823.21 |
