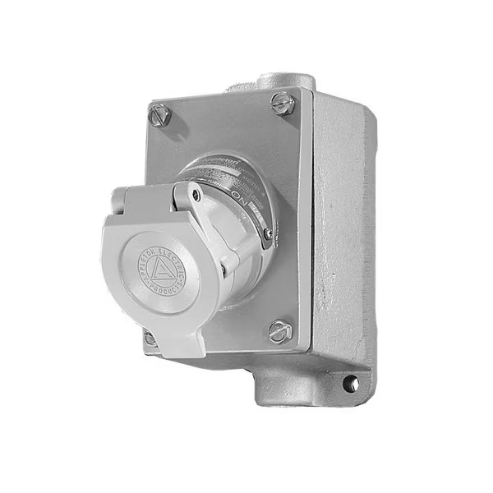

APPLETON ELECTRIC ENR5201 Receptacle, 20 A, 120V AC, 3 Poles, Copper-Free Aluminum
Item: AA3XZQModel: ENR5201Cross Ref: 11Y402
7 In Stock
Ships within 2 days via
10.00% off
€788.46 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hazardous Location Receptacle |
| Amps | 20A |
| Circuit Breaker | Yes |
| Current Rating | 20A |
| Finish | Triple Coat Epoxy Coat |
| For Environment | Hazardous Location |
| For Maximum Cable Dia. | 0.639" |
| For Minimum Cable Diameter | 0.538" |
| Gfci | No |
| Hazardous Location Specification | Class I, Div 1 And 2, Group C, D, Class II, Div 1 And 2, Group F, G, Class III, Div 1 And 2 |
| Horsepower Rating | 1 hp |
| Housing Material | Copper Free Aluminum |
| Hub Type | Feed Through |
| Material | Copper Free Aluminum |
| Nema Enclosure Rating | NEMA 3RX, NEMA 7CD, NEMA 9FG |
| Nema Receptacle Configuration | NEMA 5-20R |
| Nema Type | 5-20R |
| Number Of Poles | 3 |
| Number Of Wires | 2 |
| Product Datasheet | appleton-electric-enr5201.pdf |
| Resistance Properties | Dust Ignition Proof, Explosion Proof |
| Voltage | 125V |
| Voltage Rating | 120V AC |
Shipping Info:
| Ship weight (kg) | 0.97 |
| Ship height (cm) | 10.67 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 12.7 |
| HS code | 8538908080 |
| Country of Origin | MX |
Documentation:
Product Variants
| Model | Number Of Wires | Number Of Poles | Voltage | Amps | Current Rating | Phase | Hp | Hub Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| DBR3034HFB50 | 3 | 4 | 600V AC | - | 30A | Three | - | - | €11,602.17 | |
| DBR6023EH100 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €10,090.47 | |
| DBR6023EH50 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €9,494.66 | |
| DBR6023EH70 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €10,090.47 | |
| DBR6023EH90 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €10,090.45 | |
| DBR6023FB100 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €10,491.74 | |
| DBR6023FB50 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €9,823.21 |
