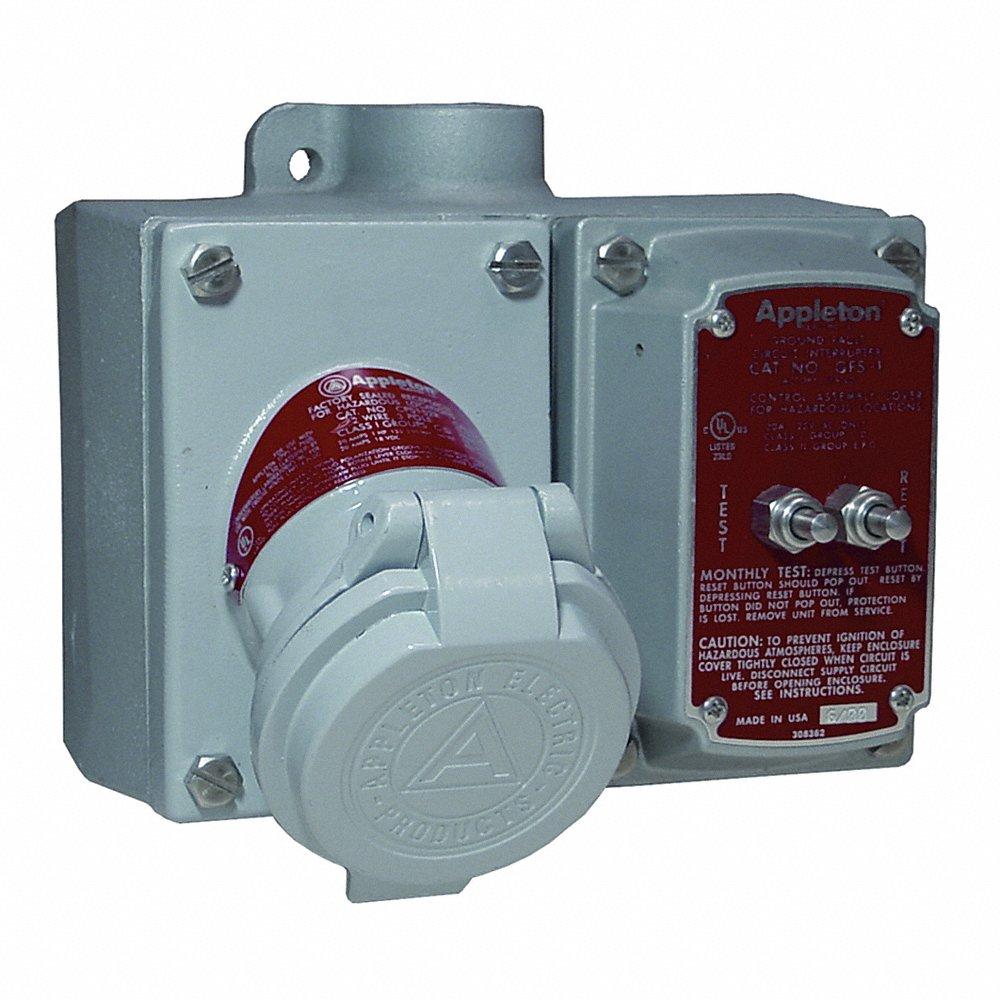

APPLETON ELECTRIC EFS210-2023GFI GFCI Receptacle, Dead End, 1 Inch Hub Dia., 125V AC, 3 Poles, 2 Gangs, Malleable Iron
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€3,094.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Receptacle |
| Amps | 20A |
| Circuit Breaker | Yes |
| Current Rating | 20A |
| Features | Factory-Sealed |
| Finish | Baked Epoxy Clad |
| For Environment | Hazardous Location |
| Gfci | Yes |
| Hazardous Location Specification | Class I, Div 1 And 2, Group C, D, Class II, Div 1 And 2, Group F, G, Class III, Div 1 And 2 |
| Horsepower Rating | 1 hp |
| Housing Material | Malleable Iron |
| Hub Dia. | 1" |
| Hub Diameter | 1" |
| Hub Size | 1" |
| Hub Style | Dead End |
| Hub Type | Dead End |
| Includes Mounting Hardware | Yes |
| Material | Malleable Iron |
| Mounting Box | Malleable Iron, 2 Gang |
| Nema Enclosure Rating | NEMA 3, NEMA 3R, NEMA 3RX, NEMA 7BCD, NEMA 9FG |
| Nema Receptacle Configuration | NEMA 5-20R |
| Nema Type | 5-20R |
| Number Of Gangs | 2 |
| Number Of Poles | 3 |
| Number Of Wires | 2 |
| Product Datasheet | appleton-electric-efs110a-gfi.pdf |
| Resistance Properties | Dust Ignition Proof, Explosion Proof |
| Screws | Stainless Steel |
| Standards | Cul Listed, Ul Listed |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
Shipping Info:
| Ship weight (kg) | 4.73 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 36.58 |
| Ship width (cm) | 36.58 |
| HS code | 8536308000 |
| Country of Origin | MX |
Documentation:
Product Variants
| Model | Hub Size | Hub Style | Hub Dia. | Number Of Wires | Number Of Poles | Voltage | Amps | Screws | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| EFS210A-2023GFI | 1" | Dead End | 1" | 2 | 3 | 125V AC | 20A | Stainless Steel | €3,759.39 | |
| EFS250-2023GFI | 1/2" | Dead End | 1/2" | 2 | 3 | 125V AC | 20A | Stainless Steel | €3,667.68 | |
| EFS250A-2023GFI | 1/2" | Dead End | 1/2" | 2 | 3 | 125V AC | 20A | Stainless Steel | €3,779.08 | |
| EFS275-2023GFI | 3/4" | Dead End | 3/4" | 2 | 3 | 125V AC | 20A | Stainless Steel | €3,667.70 | |
| EFS275A-2023GFI | 3/4" | Dead End | 3/4" | 2 | 3 | 125V AC | 20A | Stainless Steel | €3,735.32 | |
| EFSC210-2023GFI | 1" | Feed Thru | 1" | 2 | 3 | 125V AC | 20A | Stainless Steel | €3,644.22 | |
| EFSC210A-2023GFI | 1" | Feed Thru | - | 2 | 3 | 125V AC | - | Stainless Steel | €3,759.39 |
