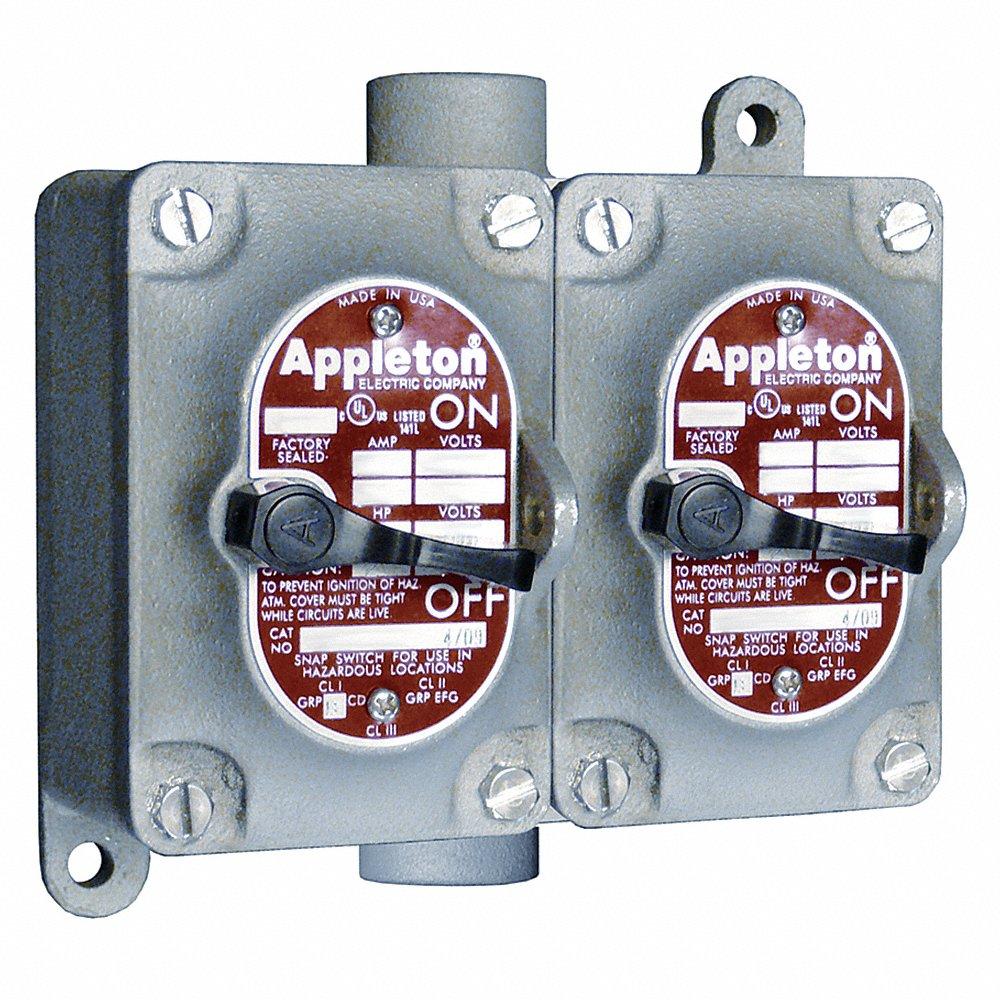

APPLETON ELECTRIC EDSC2230 Tumbler Switch, 2 Gangs, Feed-Thru Hub, 3/4 Inch Hub, 20A, 120 to 277V AC
Item: AA6DUPModel: EDSC2230Cross Ref: 13V098
7 In Stock
Ships within 2 days via
10.00% off
€1,717.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tumbler Switch |
| Actuator Style | Front Lever |
| Body Material | Malleable Iron |
| Current Rating | 20A |
| Depth | 4.69" |
| Hazardous Location Specification | Class I, Div 1, Group C, D, Class Ii, Div 1 And 2, Group E, F, G, Class Iii, Div 1 And 2 |
| Horsepower @ 120v Ac | 1 hp |
| Horsepower @ 240v Ac | 2 hp |
| Hp | 1 hp @ 120V AC, 2 hp @ 240V AC |
| Hub Style | Feed Thru |
| Legend Markings | On/Off |
| Mounting | Mounting Holes |
| Mounting Orientation | Vertical |
| Nema Enclosure Rating | NEMA 3, NEMA 7, NEMA 9 |
| Nema Rating | NEMA 7C, NEMA 7D, NEMA 9E, NEMA 9F, NEMA 9G |
| Number Of Gangs | 2 |
| Number Of Poles | 3 |
| Overall Depth | 4.68" |
| Overall Height | 4.62" |
| Overall Width | 6.18" |
| Product Datasheet | appleton-electric-eds1130.pdf |
| Resistance Properties | Corrosion Resistant, Dust Ignition Proof, Explosion Proof |
| Series | EDS Series |
| Switch Type | 3-Way |
| Type Of Operator | Front Operated |
| Voltage Rating - Maximum | 277V AC |
Shipping Info:
| Ship weight (kg) | 4.5 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 17.78 |
| HS code | 8536509065 |
| Country of Origin | MX |
Product Details:
- Special Features: Corrosion Resistant, Pad Lockable in the On or Off Position
Documentation:
Product Variants
| Product | Model | Number Of Gangs | Hub Style | Hub Size | Mounting | Switch Type | Body Material | Depth | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EDS2130 | 1 | Dead End | 3/4" | Mounting Holes | 3-Way | Malleable Iron | 4.69" | 4.63" | €888.18 | |
 |
EDS2230 | 2 | Dead End | 3/4" | Mounting Holes | 3-Way | Malleable Iron | 4.69" | - | €1,720.82 | |
 |
EDS275-F3W | 2 | Dead End | 3/4" | Mounting Holes | 3-Way | Malleable Iron | 4.69" | - | €1,688.71 | |
|
EDS275-R3W | 2 | Dead End | 3/4" | Hubs, Mounting Holes | 3-Way | Malleable Iron | - | - | €1,688.73 | |
|
EDS3130 | 1 | Dead End | 1" | Mounting Holes | 3-Way | Malleable Iron | 4.69" | - | €946.48 | |
|
EDS3230 | 2 | Dead End | 1" | Mounting Holes | 3-Way | Malleable Iron | 4.69" | - | €1,739.15 | |
|
EDS3594 | 1 | Dead End | 1" | Mounting Holes | 3-Way | Malleable Iron | 4.69" | - | €900.22 |
