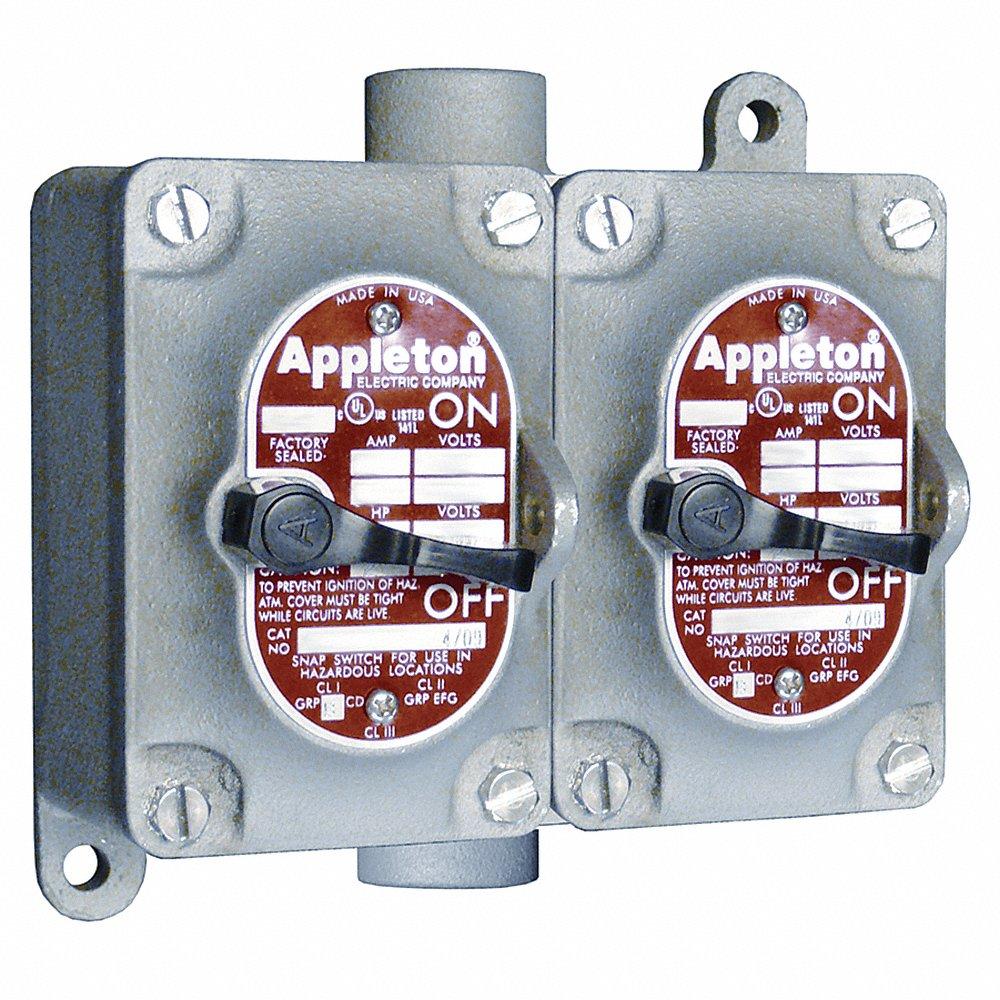

APPLETON ELECTRIC EDSC210-F2 Tumbler Switch, 2 Gangs, Feed-Thru Hub, 1 Inch Hub, 20A, 120 to 277V AC
Item: AA6DTZModel: EDSC210-F2Cross Ref: 13V084
7 In Stock
Ships within 2 days via
10.00% off
€1,723.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tumbler Switch |
| Actuator Style | Front Lever |
| Body Material | Malleable Iron |
| Current Rating | 20A |
| Depth | 4.69" |
| Hazardous Location Specification | Class I, Div 1 And 2, Group B, C, D, Class Ii, Div 1 And 2, Group E, F, G, Class Iii, Div 1 And 2 |
| Height | 4.63" |
| Horsepower @ 120v Ac | 1 hp |
| Horsepower @ 240v Ac | 2 hp |
| Hp | 1 hp @ 120V AC, 2 hp @ 240V AC |
| Hub Size | 1" |
| Hub Style | Feed Thru |
| Legend Markings | On/Off |
| Mounting | Mounting Holes |
| Mounting Orientation | Vertical |
| Nema Enclosure Rating | NEMA 3, NEMA 7, NEMA 9 |
| Nema Rating | NEMA 7C, NEMA 7D, NEMA 9E, NEMA 9F, NEMA 9G |
| Number Of Gangs | 2 |
| Number Of Poles | 2 |
| Overall Depth | 4.69" |
| Overall Height | 4.63" |
| Overall Width | 6.19" |
| Product Datasheet | appleton-electric-eds110f13a.pdf |
| Resistance Properties | Corrosion Resistant, Dust Ignition Proof, Explosion Proof |
| Series | EDS Series |
| Switch Type | 2-Pole |
| Type Of Operator | Front Operated |
| Voltage Rating - Maximum | 277V AC |
| Width | 6.19" |
Shipping Info:
| Ship weight (kg) | 4.21 |
| Ship height (cm) | 14.73 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 18.29 |
| HS code | 8536509065 |
| Country of Origin | MX |
Product Details:
- Special Features: Corrosion Resistant, Pad Lockable in the On or Off Position
Documentation:
Product Variants
| Product | Model | Number Of Gangs | Hub Size | Hub Style | Switch Type | Mounting | Voltage | Body Material | Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EDS150-F2 | 1 | 1/2" | Dead End | 2-Pole | Mounting Holes | 120-277V AC | Malleable Iron | 4.69" | €968.35 | |
|
EDS175-F2 | 1 | 3/4" | Dead End | 2-Pole | Mounting Holes | 120-277V AC | Malleable Iron | 4.69" | €968.34 | |
|
EDS175-F23 | 1 | 3/4" | Dead End | 2-Pole | Mounting Holes | 120-277V AC | Malleable Iron | 4.69" | €1,358.95 | |
 |
EDS175F2 | 1 | 3/4" | Dead End | 2-Pole | - | 120-277V AC | Malleable Iron | 4.69" | €966.05 | |
|
EDS175F23 | 1 | 3/4" | Dead End | 2-Pole | - | 120-277V AC | Malleable Iron | 4.69" | €1,281.61 | |
|
EDS210F1 | 2 | 1" | Dead End | 1 Pole | - | 120-277V AC | Malleable Iron | 4.69" | €1,626.70 | |
 |
EDS218 | 1 | 3/4" | Dead End | 2-Pole | Mounting Holes | - | Malleable Iron | 4.69" | €1,007.15 |
