APPLETON ELECTRIC EBRH3023DS Receptacle with Disconnect Switch, Non-Fused, 30 A, 600V AC, 25 hp
Get it by Tuesday, Dec 23
10.00% off
€11,812.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Receptacle with Disconnect Switch |
| Amps | 30A |
| Circuit Breaker | Not Applicable |
| Circuit Breaker Type | Not Applicable |
| Compatible With Series | Powertite |
| Contact Material | Brass |
| Current Rating | 30A |
| Disconnect Switch | Yes |
| Enclosure Lock Type | Padlockable |
| For Environment | Hazardous Location |
| For Maximum Cable Dia. | Not Applicable |
| For Minimum Cable Diameter | Not Applicable |
| Fuse Protection | Non-Fused |
| Fuse Type | Not Applicable |
| Grounding | Grounded |
| Handle Type | Knob |
| Hazardous Location Specification | Class I, Div 1 And 2, Group C, D, Class II, Div 1 And 2, Group F, G, Class III, Div 1 And 2 |
| Horsepower Rating | 25 hp |
| Housing Material | Copper Free Aluminum |
| Housing Material Type | Metallic |
| Hp | 25 hp |
| Hub Dia. | 1 1/2" |
| Hub Diameter | 1 1/2" |
| Hub Size | 1 1/2", 3/4" |
| Hub Type | Feed Through |
| Includes | Screw Cap |
| Includes Mounting Hardware | Yes |
| Locking Handle | Yes |
| Material | Copper Free Aluminum |
| Max. Voltage | 600V AC |
| Maximum Wire Size | Not Applicable |
| Mounting Box | Copperfree Aluminum |
| Mounting Box | Copperfree Aluminium |
| Nema Enclosure Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 7CD, NEMA 9FG |
| Number Of Gangs | 1 |
| Number Of Poles | 3 |
| Number Of Wires | 2 |
| Product Datasheet | appleton-electric-ebr1023eh100.pdf |
| Resistance Properties | Waterproof |
| Voltage | 600V AC |
Shipping Info:
| Ship weight (kg) | 17.55 |
| Ship height (cm) | 55.88 |
| Ship length (cm) | 55.88 |
| Ship width (cm) | 48.26 |
| HS code | 8537109070 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Number Of Wires | Number Of Poles | Amps | Hp | Current Rating | Voltage | Nema Rating | Hub Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EBRH1023DS | 2 | 3 | 100A | 75 hp | 100A | 600V AC | 3, 3R, 4, 4X, 7CD, 9FG | 1 1/2", 3/4" | €13,124.65 | |
 |

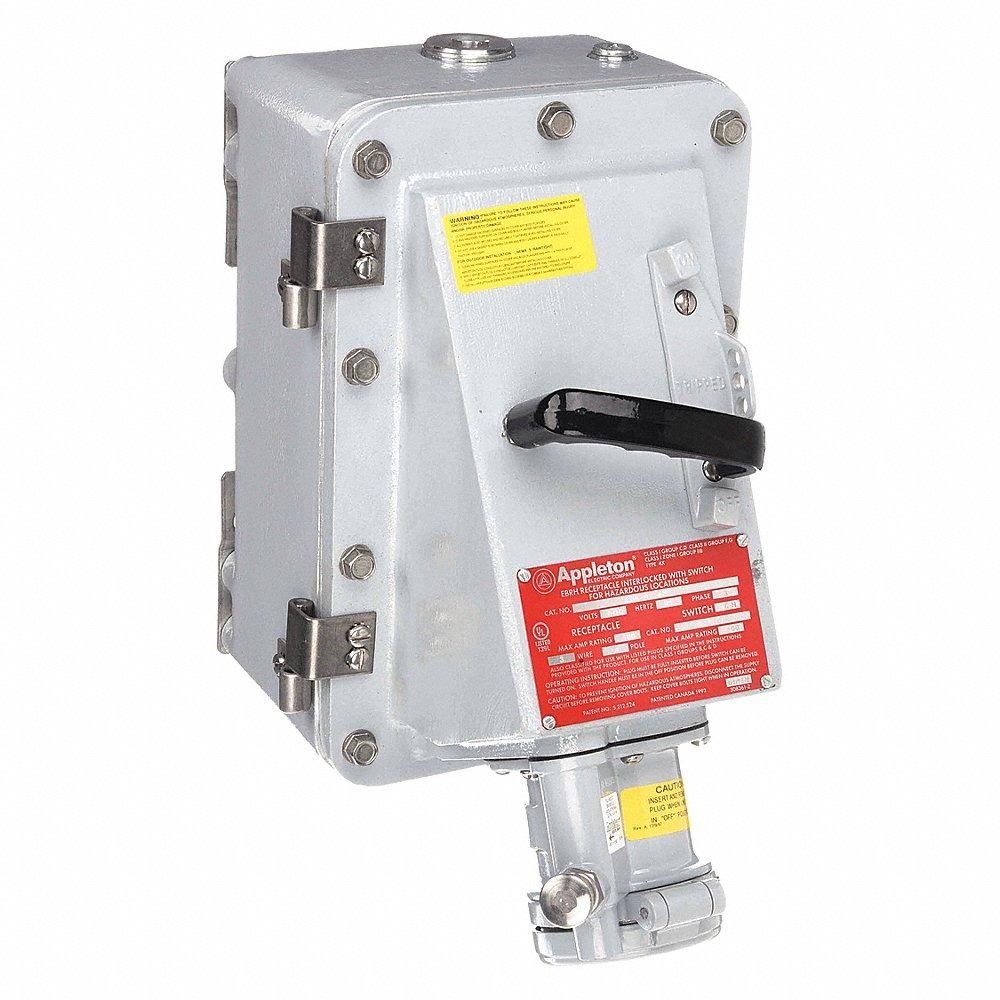

EBRH1034DS | 3 | 4 | 100A | 75 hp | 100A | 600V AC | - | 1 1/2", 3/4" | €13,271.20 | |
 |

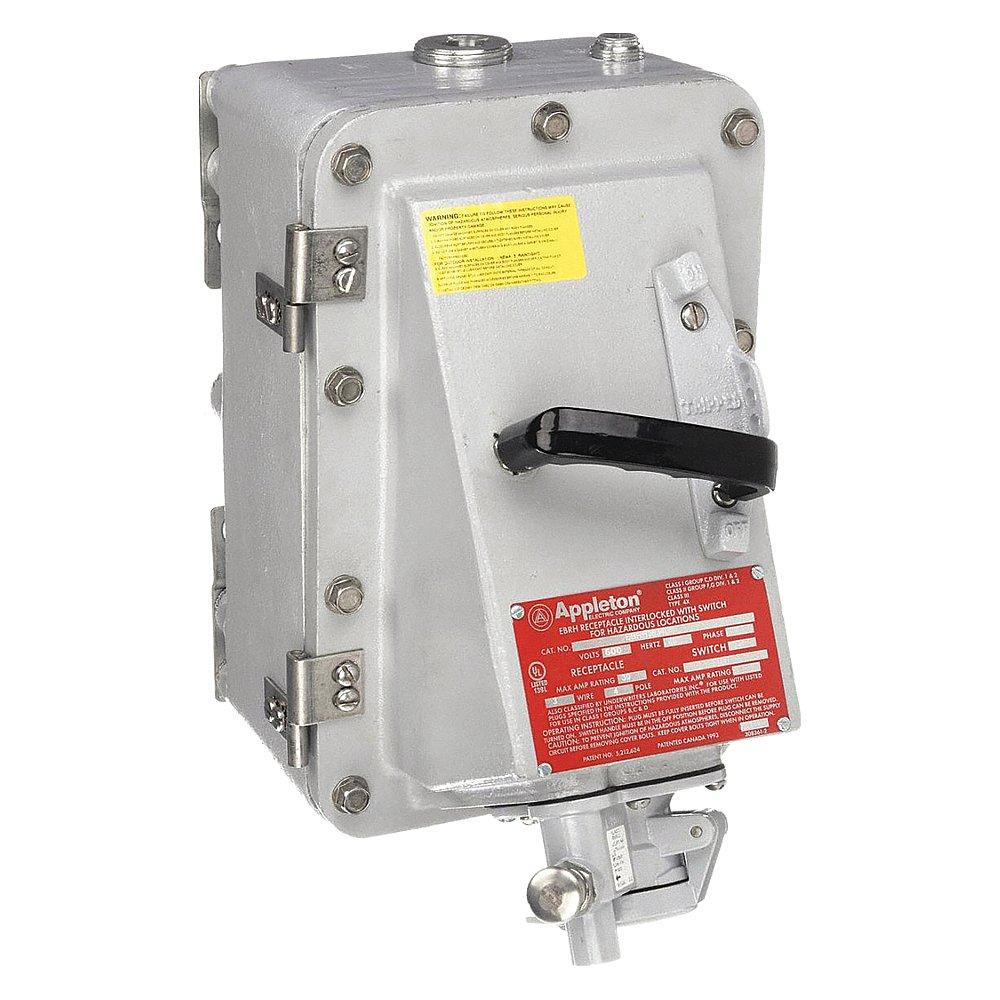

EBRH3034DS | 3 | 4 | - | 25 hp | 30A | 600V AC | 3, 3R, 4, 4X, 7CD, 9FG | 1 1/2", 3/4" | €13,271.20 | |
|
EBRH6023DS | 2 | 3 | 60A | 60 hp | 60A | 600V AC | 3, 3R, 4, 4X, 7CD, 9FG | 1 1/2", 3/4" | €13,124.65 | |
 |

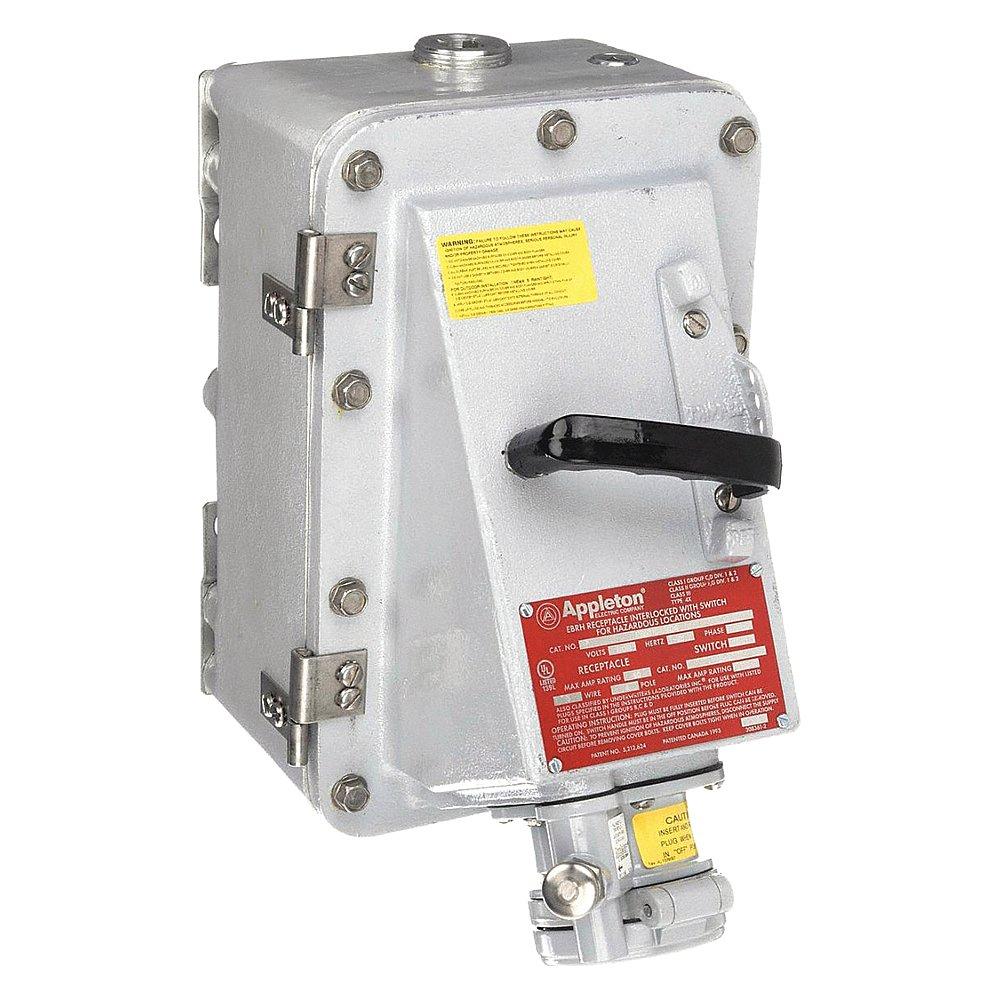

EBRH6034DS | 3 | 4 | 60A | 60 hp | 60A | 600V AC | - | 1 1/2", 3/4" | €13,271.20 |
