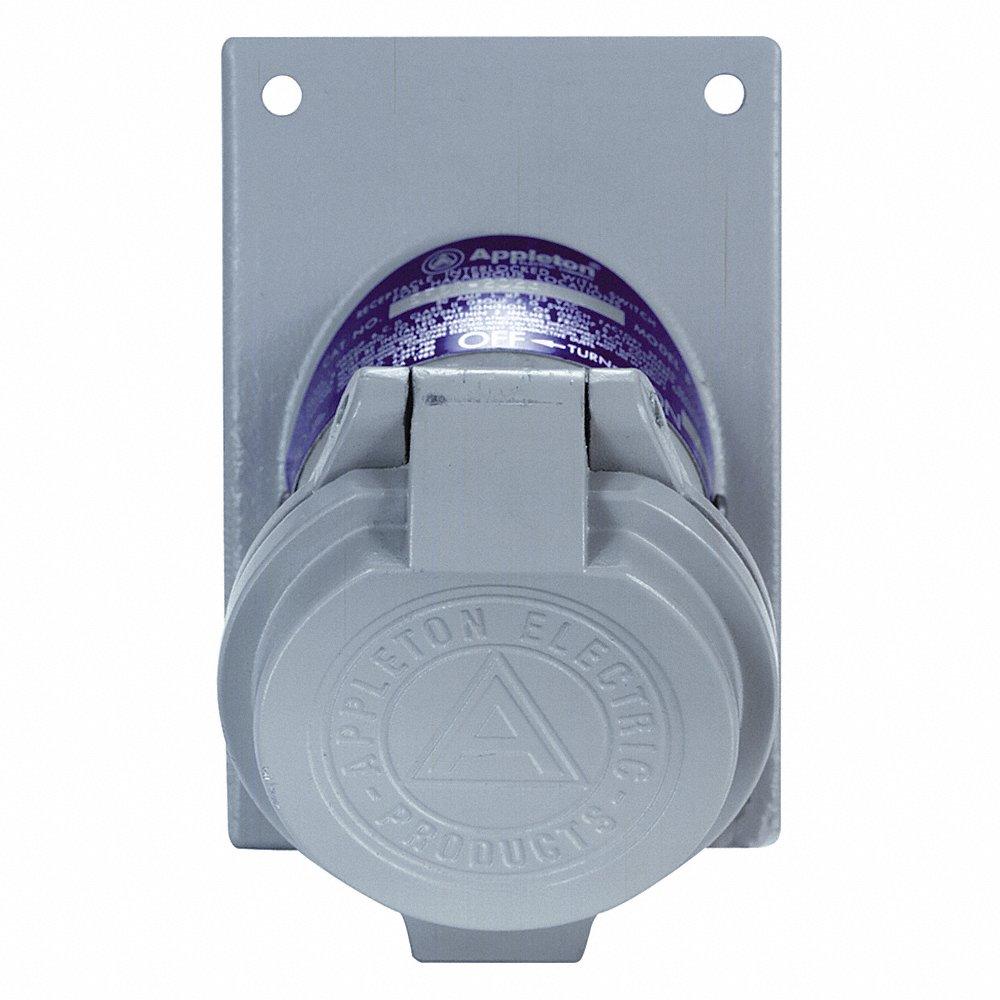

APPLETON ELECTRIC CPS152R Receptacle, 20A, 125 to 250V AC/18V DC, 1hp, Gray, Dead End/Feed Through
Item: AA4DNTModel: CPS152RCross Ref: 12G228
7 In Stock
Ships within 2 days via
10.00% off
€1,016.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hazardous Area Receptacle |
| Amps | 20A |
| Cap Type | Not Applicable |
| Connection Orientation | Not Applicable |
| Contact Material | Copper |
| Current Rating | 20A |
| Face Dia. | 2.63" |
| Features | Delayed Action Construction: Insert Plug Partially Rotate Slide On Front Of Receptacle And Insert Plug Fully |
| Flange Dia. | Not Applicable |
| Flange Height | Not Applicable |
| Flange Type | Non Flanged |
| Flange Width | Not Applicable |
| For Maximum Cable Dia. | 0.639" |
| For Minimum Cable Diameter | 0.538" |
| Grounding | Grounded |
| Grounding Style | Not Applicable |
| Hazardous Location Specification | Class I, Div 1 And 2, Group C, D |
| Horsepower Rating | 1 hp |
| Housing Color | Gray |
| Housing Material | Malleable Iron |
| Housing Material Type | Metallic |
| Hub Type | Dead End, Feed Through |
| Includes Mounting Hardware | Yes |
| Insulation Material | Fiberglass Reinforced Polyester |
| Ip Rating | Not Rated |
| Market | Industrial |
| Material | Copper Free Aluminum |
| Maximum Wire Size | Not Applicable |
| Minimum Wire Size | Not Applicable |
| Mounting Box Entry | Dead End, Feed Through |
| Mounting Box Hub Type | Dead End, Feed Through |
| Nema Enclosure Rating | Not Rated |
| Number Of Poles | 3 |
| Number Of Wires | 2 |
| Power Indicating Light | No |
| Product Datasheet | appleton-electric-gfs1.pdf |
| Resistance Properties | Corrosion Resistant |
| Reverse Service | No |
| Shrouded | Not Applicable |
| Switch Rated | Not Applicable |
| Ul 94 Flammability Rating | Not Rated |
| Voltage Rating | 125-250V AC/18V DC |
| Wire Connection Type | Spring Clamp Terminals |
Shipping Info:
| Ship weight (kg) | 0.97 |
| Ship height (cm) | 12.19 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 14.22 |
| HS code | 8538908080 |
| Country of Origin | MX |
Documentation:
Product Variants
| Model | Number Of Wires | Number Of Poles | Voltage | Amps | Current Rating | Phase | Hp | Hub Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| DBR3034HFB50 | 3 | 4 | 600V AC | - | 30A | Three | - | - | €11,602.17 | |
| DBR6023EH100 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €10,090.47 | |
| DBR6023EH50 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €9,494.66 | |
| DBR6023EH70 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €10,090.47 | |
| DBR6023EH90 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €10,090.45 | |
| DBR6023FB100 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €10,491.74 | |
| DBR6023FB50 | 2 | 3 | 600V AC | 60A | 60A | Single | - | - | €9,823.21 |
