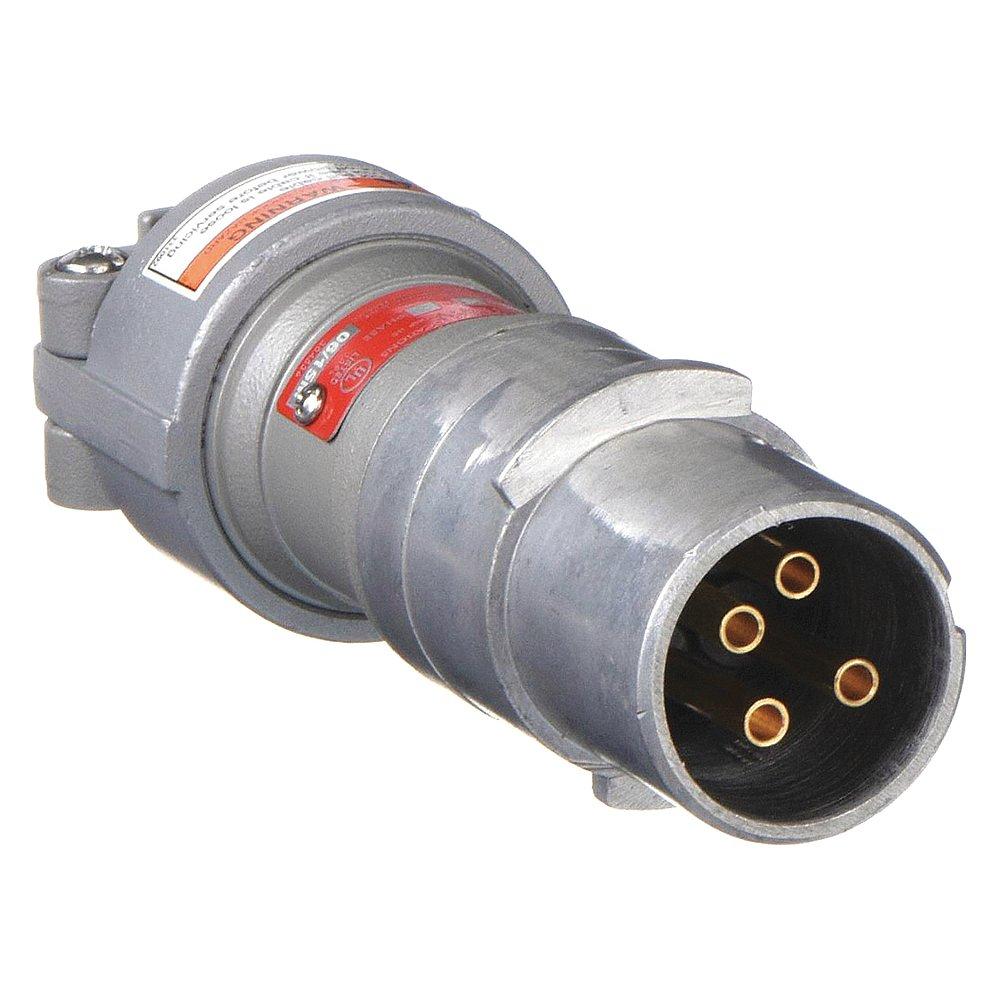

APPLETON ELECTRIC CPH3034BC Pin and Sleeve Plug, 30 A, 600V AC, Style 2 Grounding
Item: AA4DMUModel: CPH3034BCCross Ref: 12G206
7 In Stock
Ships within 2 days via
10.00% off
€1,276.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pin and Sleeve Plug |
| Amps | 30A |
| Cap Type | Screw On Cap |
| Compatible With Series | Ebr, Ebrh |
| Connection Orientation | Straight |
| Current Rating | 30A |
| Face Dia. | 2.55" |
| Features | Spring Door Keeps Dust Out Of Receptacle |
| For Environment | Corrosive, Damp |
| For Maximum Cable Dia. | 1 1/8" |
| For Maximum Cable Diameter | 1.125" |
| For Minimum Cable Diameter | 1/2" |
| Grounding | Grounded |
| Grounding Style | Style 2 |
| Hazardous Location Specification | Class I, Div 1 And 2, Group B, C, D, Class Ii, Div 1 And 2, Group F, G, Class Iii, Div 1 And 2 |
| Housing Color | Gray |
| Housing Material | Copper Free Aluminum |
| Housing Material Finish | Epoxy Coat With Powder Finish |
| Insulation Material | Fiberglass Reinforced Polyester |
| Material | Copper Free Aluminum |
| Nema Rating | 3, 3R, 4, 4X, 7BCD, 9FG |
| Number Of Poles | 4 |
| Number Of Wires | 3 |
| Outside Dia. | 3.06" |
| Overall Length | 8 11/25" |
| Phase | Three |
| Product Datasheet | appleton-electric-cepi6023bc.pdf |
| Reverse Service | No |
| Switch Rated | No |
| Voltage | 600V AC |
| Voltage Rating | 600V AC |
| Wire Connection Type | Wire Leads |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 15.24 |
| HS code | 8536698000 |
| Country of Origin | MX |
