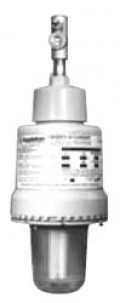

APPLETON ELECTRIC CJFPB2675BUL Flourescent Fixture, 26W, 120V
Get it by Friday, Dec 19
€2,706.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fluorescent Fixture |
| Ambient Temperature Range | 40°C |
| Application | For Use In Marine And Wet Locations, And In Hazardous Locations Such As Plants Where Plastics, Paints, Thinners And Petrochemicals Are Manufactured, And In Other Areas Where Ignitable Vapors, Dust, Moisture And Corrosive Elements May Be Present, Where An Instant-On White Light Is Desired And For Locations That Are Difficult To Access |
| Approvals | csa.png, ul.png |
| Ballast Quantity | 1 |
| Enclosed | No |
| Family Series | Appleton Light Fixtures Series, Code Master Plt Series |
| Fixture Material | Aluminum |
| Fixture Type | Group B Pendant |
| Fixture Wattage | 28 W |
| Gasketed | No |
| Guarded | No |
| Height | 17.87" |
| Housing Finish | Epoxy Powder Coat |
| Housing Material | Die-Cast Copperfree (4/10 Of 1 Pct Maximum) Aluminum |
| Hub Size | 3/4" |
| Junction Box | No |
| Lamp Included | Yes |
| Lamp Watts | 26 W |
| Length | 8" |
| Lens Material | Glass Globe |
| Marine Rated | No |
| Material | Copperfree (4/10 Of 1 Pct Maximum) Aluminum Ballast Bodies, Die-Cast Copperfree (4/10 Of 1 Pct Maximum) Aluminum Mounting Hood |
| Mounting | Group B Pendant |
| Nema Rating | NEMA 4X |
| Nominal Voltage | 120/208/240/277V AC |
| Number Of Lamps | 1 |
| Power | 26 W |
| Product Datasheet | appleton-electric-cjfpb2675bul.pdf |
| Series | Code Master Plt Series |
| Style | Globe |
| Temperature Range | -18°C (Minimum Starting), 75°C (Supply Wire) |
| Type | CJ Series Fluorescent Factory Sealed Luminaire Without Guard |
| Voltage | 120-277V AC |
| Voltage Rating | 120-277V |
| Wet Locations | Yes |
| Width | 8" |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 25.4 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Lamp Type | Mounting | Ballast Type | Lamp Watts | Fixture Wattage | Height | Nema Rating | Number Of Lamps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CJFB2610BU | 26 Wtt 1800 Lm 10000 Hr 4-Pin Pl-T Fluorescent (Not Included) | Bracket | Integral | 26 W | 28 W | - | NEMA 4X | 1 | €2,421.34 | |
| CJFB2675BUL | 26 Wtt 1800 Lm 10000 Hr 4-Pin Pl-T Fluorescent (Included) | Bracket | Integral | 26 W | 28 W | - | NEMA 4X | 1 | €2,538.91 | |
| CJFB2610BUL | 26 Wtt 1800 Lm 10000 Hr 4-Pin Pl-T Fluorescent (Included) | Bracket | Integral | 26 W | 28 W | - | NEMA 4X | 1 | €2,538.91 | |
| CJFB2610GBU | 26 Wtt 1800 Lm 10000 Hr 4-Pin Pl-T Fluorescent (Not Included) | Bracket | Integral | 26 W | 28 W | - | NEMA 4X | 1 | €2,548.04 | |
| CJFB2610GBUL | 26 Wtt 1800 Lm 10000 Hr 4-Pin Pl-T Fluorescent (Included) | Bracket | Integral | 26 W | 28 W | - | NEMA 4X | 1 | €2,665.61 | |
| CJFB3210BU | Fluorescent | Bracket | Integrated | - | - | - | NEMA 4X | - | €2,481.83 | |
| CJFB2675GBUL | 26 Wtt 1800 Lm 10000 Hr 4-Pin Pl-T Fluorescent (Included) | Bracket | Integral | 26 W | 28 W | - | NEMA 4X | 1 | €2,665.61 |
